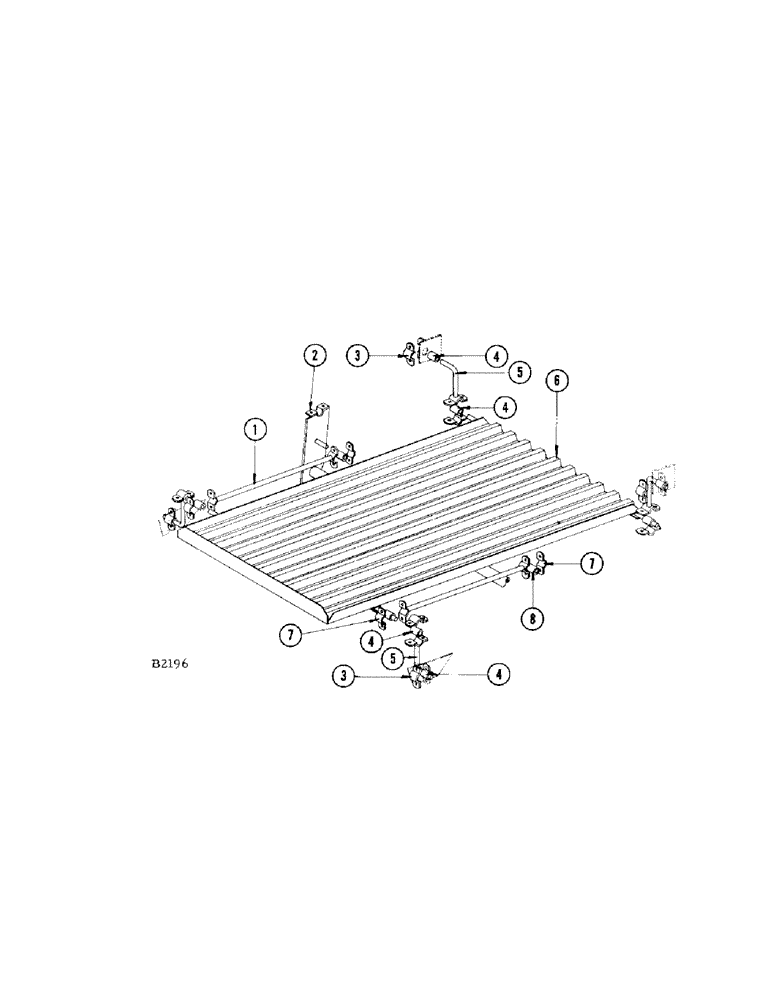

Запчасти Case IH 460 (062[1]) - STRAWRACK RETURN PAN (72) - SEPARATION

1

F80896

PITMAN - strawrack return pan

2шт.

2

F88433

SHAFT - Shaker (Replaces F83848 when stock is exhausted), straw rack return pan

1шт.

F83848

SHAFT - Shaker (Replaced by F88433 when exhausted), straw rack return pan

1шт.

3

O770BF

STRAP

CLAMP - strap, For swinger arms, straw rack return pan

8шт.

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

Nut (25-115), L.W. (92-5), Straw rack return pan Hex, 5/16"-24 x 1 1/4", G5

16шт.

4

O4505BF2

BUSHING,11.11mm ID x 30.16mm OD x 38.1mm L

- torsion, straw rack return pan

8шт.

5

F80892

ARM - swinger, straw rack return pan

4шт.

6

F94188

PAN - strawrack return (Replaces F84333 when exhausted), pan

1шт.

F84333

PAN - strawrack return (Replaced by F94188 when exhausted), pan

1шт.

7

O770BF

STRAP

CLAMP - strap, For Pitman, straw rack return pan

4шт.

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

Nut (25-115), L.W. (92-5), Straw rack return pan Hex, 5/16"-24 x 1 1/4", G5

8шт.

8

O4505BF2

BUSHING,11.11mm ID x 30.16mm OD x 38.1mm L

- torsion, straw rack return pan

4шт.
