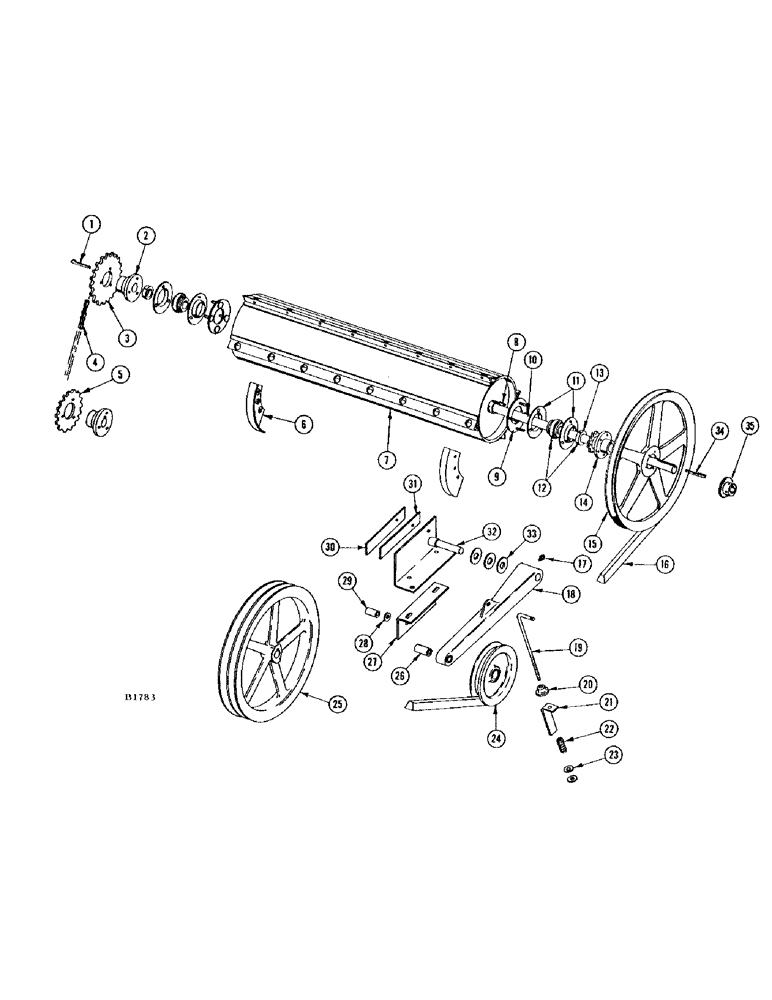

Запчасти Case IH 460 (056) - BEATER (72) - SEPARATION

1

O30388HT

KEY

- gib, cylinder drive hub

1шт.

2

F1738

HUB - (Replaces F3406 when stocks exhausted)

2шт.

F3406

HUB

- (Replaced by F1738 when stocks exhausted)

2шт.

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8" x 1-1/4" N.F. hex.; nut (25-116) L.W. (92-6)

3шт.

3

F8978

SPROCKET - cylinder drive (Standard 33T)

1шт.

4

F18520

X

CHAIN - cylinder drive (See chain page)

1шт.

5

F8974

SPROCKET ASSY.

SPROCKET - cylinder (24T)

1шт.

6

F82371

SHIELD

2шт.

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

; L.W. (92-4) Hex, 1/4"-20 x 5/8", G5, Full Thd

5шт.

7

F82866

BEATER

- less shaft

1шт.

8

126-223

KEY

- HP 910 HI Pro

1шт.

9

F81313

RETAINER - bearing

2шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.; L.W. (92-8)

8шт.

10

F41114

SHAFT - beater

1шт.

11

F8944

FLANGE

TTE

4шт.

12

F77924

BEARING

2шт.

13

F62107

COLLAR

1шт.

14

F83088

HUB AND SPROCKET - (16T) crankshaft drive

1шт.

15

F85522

SHEAVE - beater

1шт.

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

- 3/8" x 1-3/4" N.F. hex.; L.W. (92-6)

5шт.

16

F20741

SCREW

BELT - beater drive

1шт.

17

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - 1/4", grease

1шт.

18

F2158

ARM - idler

1шт.

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- 5/8" x 2-3/4" N.C. hex.; L.W. (92-10)

1шт.

19

F20739

SCREW

ROD - tightener

1шт.

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

95-5

WASHER,3/8" x 7/8" x .083"

- 5/16" N.F. hex

2шт.

20

F19583

BUSHING

1шт.

21

F20740

SCREW

GAGE - spring

1шт.

22

O1558N

SPRING

1шт.

23

O58BL

WASHER

2шт.

24

F11626

BEARING

IDLER

1шт.

25

F1676

SHEAVE - main drive

1шт.

26

V13481

SPACER

1шт.

27

F19954

BRACKET - stiffener

1шт.

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

- 5/16" x 1-1/2" N.F. hex.; nut (25-115) L.W. (92-5)

1шт.

28

O1594N

WASHER

1шт.

29

O390Z

SPACER - (1/4" pipe x 13/16")

1шт.

30

F20649

SHIM - beater idler bracket

1шт.

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

; L.W. (92-4) Hex, 1/4"-20 x 1", G5

1шт.

31

F40606

SHIM

1шт.

32

F83696

PIVOT - idler arm

1шт.

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), 3/32" x 1 1/2"

1шт.

14-514

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

Wshr. (195-21) Hex, 5/16"-24 x 7/8", G5, Full Thd

2шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex; L.W. (92-5)

2шт.

33

O906B

WASHER

- (1-1/2" O.D. x 1-1/32" I.D.)

3шт.

34

F19551

KEY - sprocket hubs

1шт.

35

F85792

HUB AND SPROCKET - (20T) countershaft drive

1шт.

85-612

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW - 3/8" x 3/4" N.C. sq. hd., set and jam nut (25-146)

2шт.
