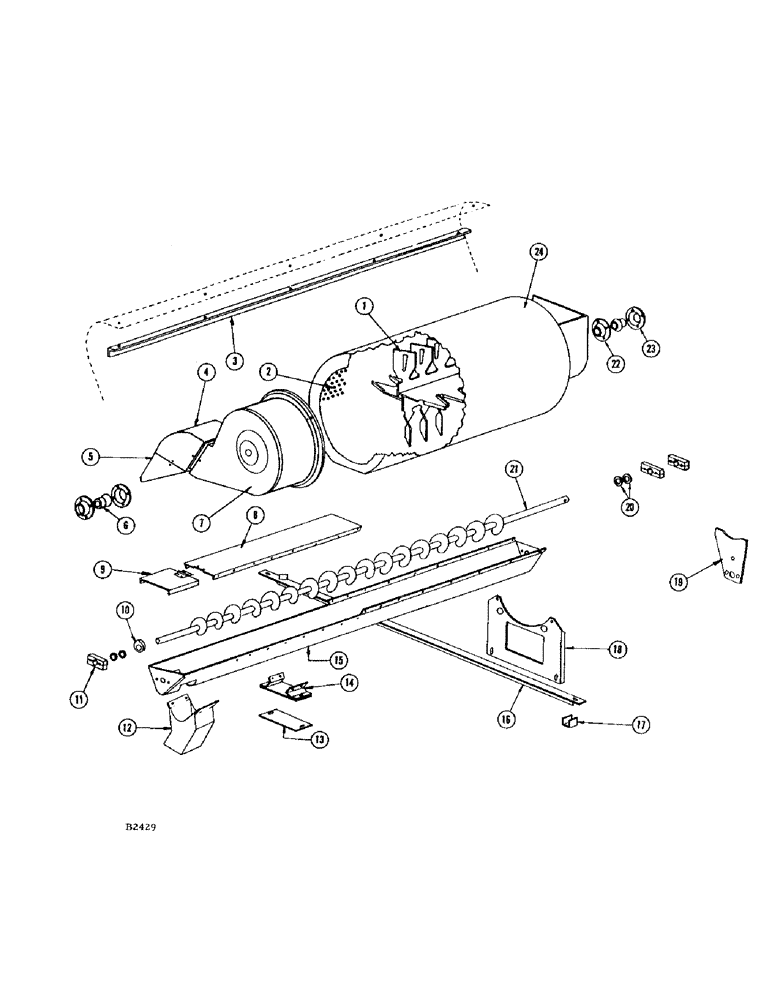

Запчасти Case IH 460 (090) - SCOURKLEEN ATTACHMENT (66) - THRESHING

1

F84784

BLADE - rotor

1шт.

2

F83260M

SCREEN - (.165" triangular hole) standard

1шт.

3

F22084

REINFORCEMENT - grain bin rim

2шт.

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

; Nut (25-104) L.W. (92-4) and wshr. (95-4) Hex, 1/4"-20 x 5/8", G5, Full Thd

8шт.

4

F83376

ELBOW

1шт.

173-92

SCREW - 3/16" x 3/8" N.C. mach.; nut (129-7) L.W. (92-3)

3шт.

5

F84795

CHUTE - grain discharge

1шт.

173-92

SCREW - 3/16" x 3/8" N.C. mach.; nut (129-7) L.W. (92-3)

4шт.

6

F4347

BEARING

- (Wood) rotor shaft

2шт.

7

F84792

DRUM - discharge

1шт.

68-412

SCREW - 1/4" x 3/4" N.C. mach.; L.W. (92-4)

3шт.

129-419

WING NUT,5/16"-18

NUT - 5/16" wing

3шт.

8

F22088

COVER - weed seed auger

1шт.

187-329

SELF-TAP SCREW,Pan, 0.19"-16 x 1/4"

SCREW - metal type "A" #10 x 1/2" and Tinnerman nut (131-121)

12шт.

9

F84774

DOOR - access, auger trough

1шт.

173-92

SCREW - 3/16" x 3/8" N.C. rhd. mach.; and nut (129-7) L.W. (92-3)

3шт.

10

F1647

COLLAR - set

1шт.

85-68

SET SCREW,Sq Hd, 3/8"-16 x 1/2"

SCREW - 3/8" x 1/2" N.C. sq. hd. set

1шт.

11

F4346

BEARING - (Wood) weed seed auger shaft

3шт.

187-947

SCREW - 1/4" x 3/4" N.C. truss hd. mach.; nut (25-104) L.W. (92-4)

6шт.

12

F84794

DOWNSPOUT

1шт.

173-92

SCREW - 3/16" x 3/8" N.C. rhd.; nut (129-7) L.W. (92-3)

4шт.

13

F22086

SHIM - auger trough support

3шт.

14

F84781

BRACKET - support, auger trough

1шт.

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Nut (129-102) L.W. (192-20) Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

95-5

WASHER,3/8" x 7/8" x .083"

- 5/16" flat

4шт.

15

F84790

TROUGH - weed seed auger

1шт.

187-329

SELF-TAP SCREW,Pan, 0.19"-16 x 1/4"

SCREW - metal type "A" #10 x 1/2" and Tinnerman nut (131-121)

8шт.

16

F84780

ANGLE - support, discharge end

1шт.

17

F20349

"U" CLAMP

2шт.

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

; Nut (129-102) L.W. (192-20) fl. wshr. (195-521) Hex, 5/16"-18 x 1 3/4", G5

2шт.

18

F22085

BRACKET - support, inner

1шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Nut (25-105) L.W. (92-5) Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

95-5

WASHER,3/8" x 7/8" x .083"

- 5/16"

4шт.

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- 1/4" x 5/8" N.C. fl hd.; nut (25-104) L.W. (92-4)

3шт.

19

F83375

BRACKET - support, outer

1шт.

20

A26411

WASHER

- (1-1/8" O.D. x 21/32" I.D. #16 ga.)

4шт.

21

F84783

AUGER - weed seed

1шт.

22

F20337

RETAINER - rotor bearing, inner

2шт.

23

F20336

RETAINER - rotor bearing, outer

2шт.

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

- 1/4" x 1/2" N.C. rhd.; nut (25-104) L.W. (92-4)

8шт.

24

F84788

HOUSING - main

1шт.

187-149

SCREW - type "A" #14 x 3/4" speednut (131-136)

4шт.
