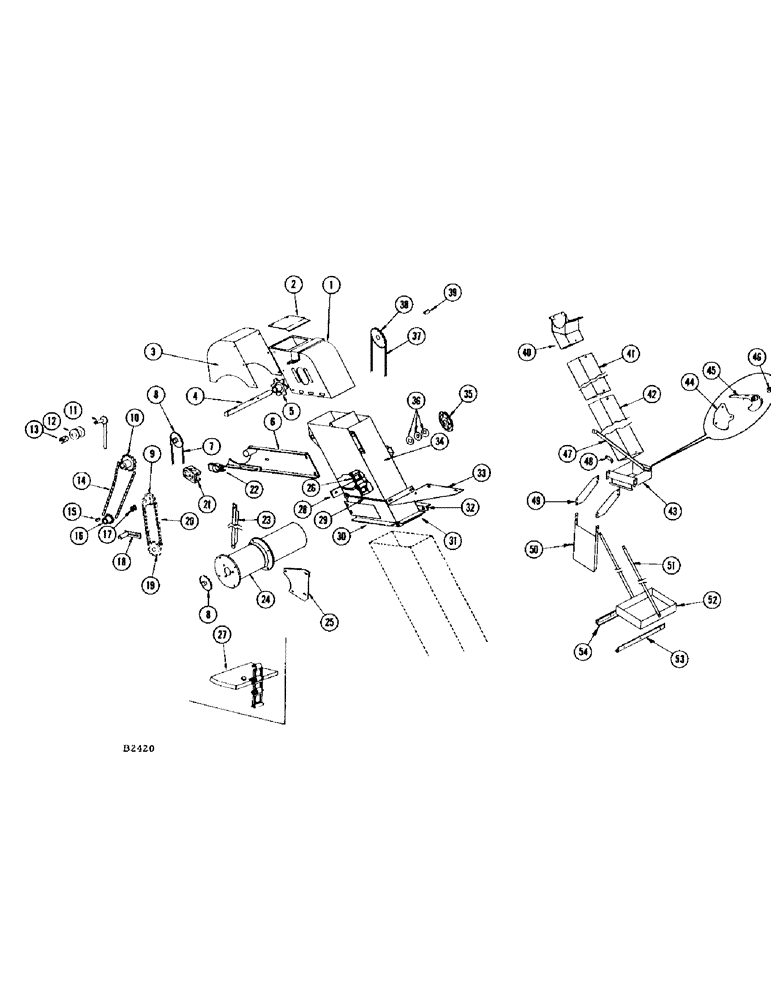

Запчасти Case IH 460 (086) - SCOURKLEEN ELEVATOR EXTENSION (66) - THRESHING

1

F83379

HEAD - elevator

1шт.

2

F20341

DOOR - clean out

1шт.

187-329

SELF-TAP SCREW,Pan, 0.19"-16 x 1/4"

SCREW - Type "A" metal #10 x 1/2"; Tinnerman nut (131-135)

2шт.

3

F83381

SPOUT - discharge

1шт.

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Nut (25-104) L.W. (92-4) wshr. (95-4) Hex, 1/4"-20 x 1/2", G5, Full Thd

6шт.

4

F22081

SHAFT - upper, elevator

1шт.

5

51B

SPROCKET ASSY.

SPROCKET - (7T) elevator (Standard on combine)

1шт.

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

1шт.

6

F84787

BRACKET - support

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Nut (129-102) L.W. (192-20)

2шт.

95-5

WASHER,3/8" x 7/8" x .083"

- 5/16" flat

4шт.

7

F20444

X

CHAIN - extension distribution auger drive (See chain page)

1шт.

8

F76981

SPROCKET - (22T) distribution auger drive

2шт.

132-101

PIN,3/16" x 2 1/4"

Split (Cotter), 3/16" x 2 1/4"

2шт.

9

F1652

SPROCKET - (9T) weed seed auger drive

1шт.

10

F1706

SPROCKET - (20T) ScourKleen drive

1шт.

132-101

PIN,3/16" x 2 1/4"

Split (Cotter), 3/16" x 2 1/4"

1шт.

85-610

SET SCREW,Sq Hd, 3/8"-16 x 5/8"

SCREW - 3/8" x 5/8" N.C. sq. hd. set

1шт.

11

F84786

ARM - chain tightener

1шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

12

F83368

ROLLER - chain tightener

1шт.

13

F4345

BUSHING - (1" O.D. x 1-1/4" long)

1шт.

14

F52566

CHAIN - ScourKleen drive (See chain page)

1шт.

15

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

Sprockets to rotor shaft #15, 1/4" x 1", HT

1шт.

16

F22067

SPROCKET - (15T) ScourKleen drive, driven

1шт.

85-610

SET SCREW,Sq Hd, 3/8"-16 x 5/8"

SCREW - 3/8" x 5/8" N.C. sq. hd. set

1шт.

17

F20286

WASHER

- (1-3/8" O.D. x 29/32" I.D. #16 ga.)

2шт.

18

F83373

TIGHTENER - auger drive chain

1шт.

68-412

SCREW - 1/4" x 3/4" N.C. mach.; nut (25-104) L.W. (92-4) and wshr. (95-4)

1шт.

19

F1649

SPROCKET - (12T) weed seed auger drive, driven

1шт.

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

1шт.

20

NSS

NOT SOLD SEPARAT

CHAIN - #25 steel (Use B15926 to make 31 links weed seed auger drive chain)

1шт.

21

F22080

BLOCK - tightener, distribution auger drive

1шт.

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- 3/8" x 2-1/4" rhd. sq. nk.; nut (25-106) L.W. (92-6) and fl. wshr. (95-6)

1шт.

22

F1648

CLAMP - idler arm

1шт.

85-610

SET SCREW,Sq Hd, 3/8"-16 x 5/8"

SCREW - 3/8" x 5/8" N.C. sq. hd. set

1шт.

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

Nut 925-115) Hex, 5/16"-24 x 1 3/4", G5

1шт.

23

F22078

BRACE - tie

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Nut (129-102) L.W. (192-20)

2шт.

24

F84772

TUBE - distribution auger

1шт.

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

; Nut (129-101) L.W. (192-19) Hex, 1/4"-20 x 1/2", G5, Full Thd

7шт.

25

F22098

PLATE - support, leveling auger tube

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Nut (129-102) L.W. (192-29)

2шт.

95-5

WASHER,3/8" x 7/8" x .083"

- 5/16" flat

4шт.

26

F83369

EXTENSION - grain elevator chain and flights (Use (2) F86419, (1) F86421 and (1) 235-83 coupler link)

1шт.

F86419

CHAIN WITH 2 FLIGHTS

2шт.

F86421

CHAIN WITH 5 FLIGHTS

1шт.

27

F79799

RUBBER FLIGHT

FLIGHT - (Rubber) elevator extension chain (Includes F11165, (1) 235-65 attaching links, (2) #55 plain links and (2) 151-135 rivets)

9шт.

28

F22104

BAR - clamp

1шт.

29

F84782

ROD - tie, elevator extension

2шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.; L.W. (92-5)

2шт.

30

F20347

ANGLE - L.H., extension tube

1шт.

31

F20345

ANGLE - rear, extension tube

1шт.

32

F20346

ANGLE - R.H., extension tube

1шт.

33

F22082

SUPPORT - elevator, upper

1шт.

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Nut (129-102) L.W. (192-20) Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

95-5

WASHER,3/8" x 7/8" x .083"

- 5/16" flat

2шт.

34

F84793

TUBE - elevator extension

1шт.

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Nut 925-104) L.W. (92-4) Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

111-102

CARRIAGE BOLT,Short NK, 1/4"-20 x 5/8", G2

BOLT - 1/4" x 5/8" rhd. sq. nk.; nut (25-104) L.W. (92-4)

16шт.

35

F84785

IDLER - (11T) elevator drive chain

1шт.

36

F22089

WASHER - (1-1/4" O.D. x 17/32" sq. hole #12 ga.)

3шт.

37

F8655

X

CHAIN - extension, elevator drive (See chain page)

1шт.

38

F89215

SPROCKET - (30T) elevator drive (#8361801 and after)

1шт.

F85804

SPROCKET - (30T) elevator drive (Before #8361801)

1шт.

132-101

PIN,3/16" x 2 1/4"

Split (Cotter), 3/16" x 2 1/4"

1шт.

39

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

Sprockets to elevator shaft and distribution auger shaft #A, 1/4" x 7/8", HT

5шт.

40

F84794

DOWNSPOUT

1шт.

173-92

SCREW - 3/16" x 3/8" N.C. rhd. mach.; and L.W. (92-3) nut (129-7)

4шт.

41

F84796

TUBE - weed seek, upper

1шт.

173-92

SCREW - 3/16" x 3/8" N.C. mach.; nut (129-7)

2шт.

42

F84797

TUBE - weed seed, lower

1шт.

68-41

SCREW - 1/4" x 5/8" N.C. rhd. mach.; and nut (25-104) Tinnerman nut (131-109)

2шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

43

F84789

HOLDER - bag, weed seed

1шт.

44

F1651

BRACKET

1шт.

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

45

F1650

LEVER

1шт.

46

A26411

WASHER

- (1-1/8" O.D. x 21/32" I.D. #16 ga.)

1шт.

47

F22105

STRAP - hanger, bag holder

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Nut (129-102) L.W. (192-20)

2шт.

48

F22079

BRACKET - weed seed tube attaching

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Nut (129-102) L.W. (192-20)

1шт.

75-410

SCREW,Rd, 1/4" - 20 x 5/8"

- 1/4" x 5/8" N.C. rhd.; nut (25-104)

1шт.

49

F22083

BRACKET - support, bag holder

2шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Nut (129-102) L.W. (192-20)

8шт.

50

F22087

SHIELD - drive belt

1шт.

51

F22106

STRAP - hanger, bag box

2шт.

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

Nut (129-101) L.W. (192-19) Hex, 1/4"-20 x 5/8", G5, Full Thd

2шт.

52

F84791

BOX - bag, weed seed

1шт.

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

Nut (129-101) L.W. (192-19) Hex, 1/4"-20 x 5/8", G5, Full Thd

6шт.

53

F22102

ANGLE - bag box support, R.H.

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Nut (129-102) L.W. (192-20)

2шт.

54

F22103

ANGLE - bag box support, L.H.

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Nut (129-102) L.W. (192-20)

2шт.

F83260M

SCREEN - (.165" triangular hole) standard - Wheat, Oats, Barley, Rye and Rice, Scourkleen

1шт.

F83261M

SCREEN - (.140" triangular hole) Wehat, Oats, Barley, Rye and Rice, Scourkleen

1шт.

F83262M

SCREEN - (1/8" x 3/4" slotted hole) Corn and Beans, Scourkleen

1шт.

F83263M

SCREEN - (5/32" x 3/4" slotted hole) Corn, Scourkleen

1шт.

F83264M

SCREEN - (5/32" round hole) Beans, Scourkleen

1шт.

F83265M

SCREEN - (1/20" round hole) Alfalfa, Clover and Grass, Scourkleen

1шт.

F83266M

SCREEN - (1/12" round hole) Flax, Grass and Maize, Scourkleen

1шт.

F83267M

SCREEN - (3/16" round hole) Corn and Beans, Scourkleen

1шт.

F83268M

SCREEN - (7/32" round hole) Beans, Scourkleen

1шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.; L.W. (92-5), Scourkleen screen

2шт.
