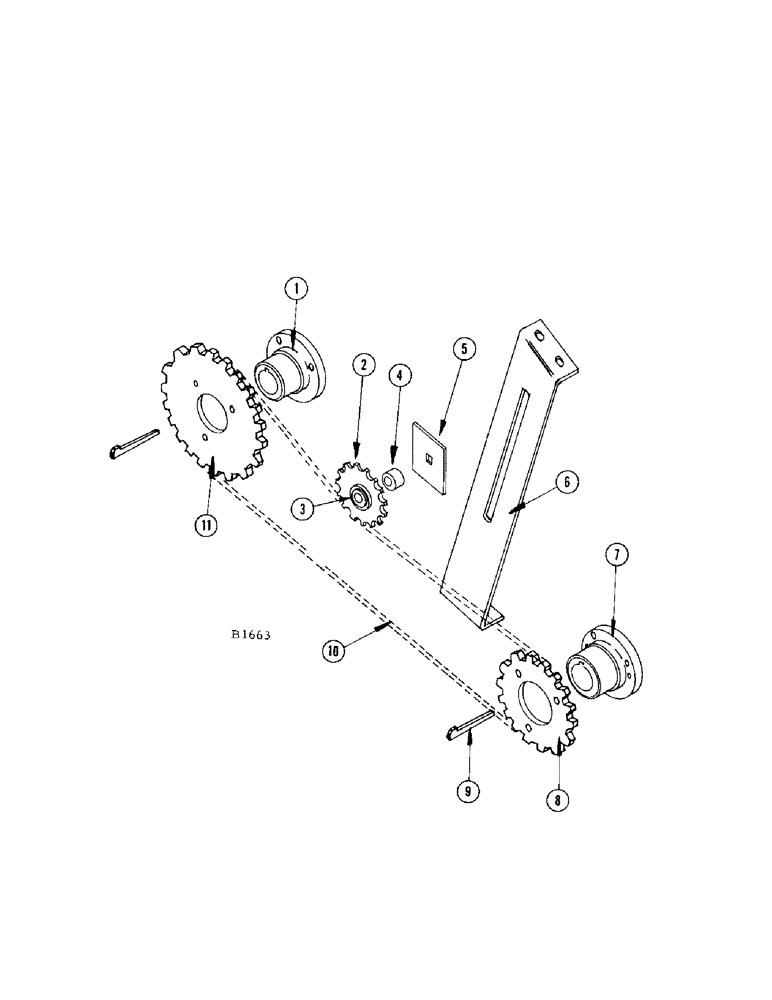

Запчасти Case IH 460 (054) - CYLINDER DRIVE (66) - THRESHING

1

F1738

HUB - cylinder drive (Beater shaft) Replaces F3406 when stocks are exhausted

1шт.

F3406

HUB

- cylinder drive (Beater shaft) Replaced by F1738 when stocks are exhausted

1шт.

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8" x 1-1/4" N.F. hex.; nut (25-116) L.W. (92-6)

3шт.

2

F83982

SPROCKET ASSY.

SPROCKET - (17T) tightener

1шт.

3

F7293

BEARING

-

1шт.

11-1040

BOLT (MACHINE)

BOLT - 5/8" x 2-1/2" rhd. sq. nk.; nut (25-1010) L.W. (92-10)

1шт.

4

V13384

SPACER - tightener sprocket

1шт.

5

F21062

REINFORCEMENT - idler

1шт.

6

F15953

BRACKET - idler

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Nut (25-115) L.W. (92-5) Hex, 5/16"-24 x 3/4", G5, Full Thd

1шт.

14-514

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

Nut (25-115) L.W. (92-5) Hex, 5/16"-24 x 7/8", G5, Full Thd

2шт.

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- 5/16" x 1" N.F. hex.; nut (25-115) L.W. (92-5)

1шт.

195-21

WASHER,5/16"

FLATWASHER - 5/16"

4шт.

7

F1738

HUB - cylinder drive (Cylinder shaft) Replaces F3406 when stocks are exhausted

1шт.

F3406

HUB

- cylinder drive (Cylinder shaft) Replaced by F1738 when stocks are exhausted

1шт.

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8" x 1-1/4" N.F. hex.; nut (25-116) L.W. (92-6)

3шт.

8

F8974

SPROCKET ASSY.

SPROCKET - cylinder drive, standard (24T)

1шт.

O8382HT1

SPROCKET - cylinder drive (21T)

1шт.

9

O30388HT

KEY

- gib

2шт.

10

F18520

X

CHAIN - cylinder drive (See chain page)

1шт.

F16252

X

CHAIN - extension, cylinder drive (See chain page)

2шт.

11

F8978

SPROCKET - cylinder drive, standard (33T)

1шт.

F16253

SPROCKET - cylinder drive (39T)

1шт.

F18087

SPROCKET - fast cylinder speed (44T)

1шт.
