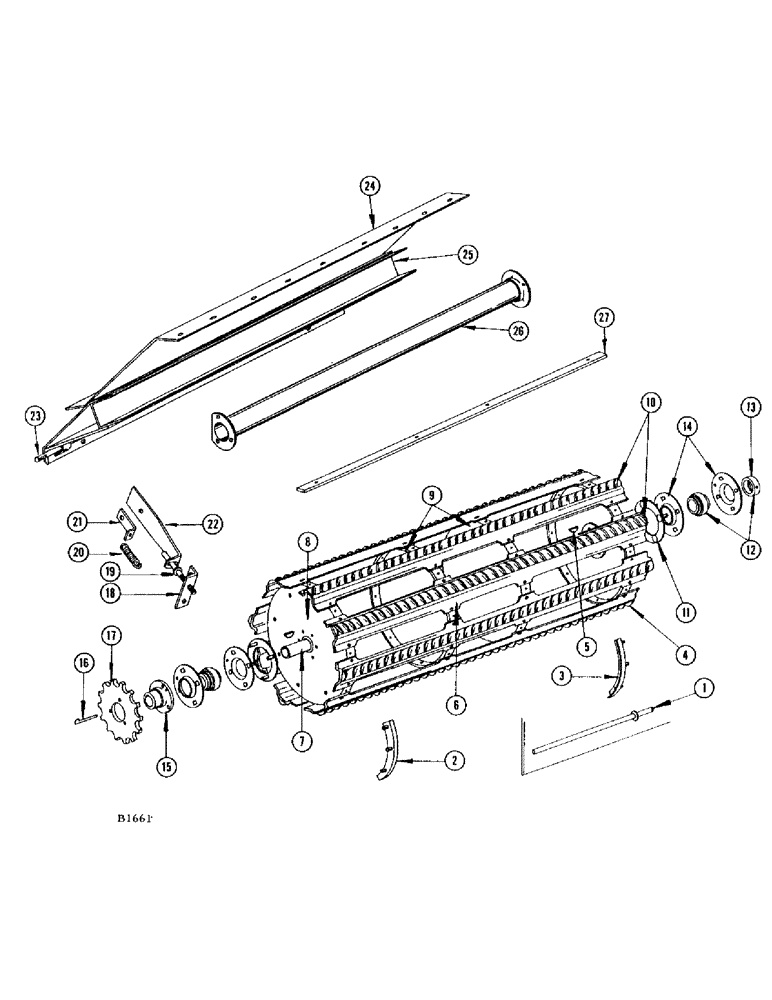

Запчасти Case IH 460 (050) - RUB BAR CYLINDER (66) - THRESHING

1

F81694

LEVER - cylinder, rocker

1шт.

2

F76890

SHIELD - R.H. cylinder

1шт.

25-104

NUT,1/4"-20, G5

; L.W. (92-4) 1/4"-20, G5

3шт.

3

F76889

SHIELD - L.H. cylinder

1шт.

25-104

NUT,1/4"-20, G5

; L.W. (92-4) 1/4"-20, G5

3шт.

4

F82372

CYLINDER

1шт.

5

126-48

WOODRUFF KEY,#29, 3/8" x 2 1/8"

KEY - #29 Woodruff

2шт.

6

F16933

SUPPORT

8шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

Nut (25-116) Wshr. (95-6) and L.W. (92-6) Hex, 3/8"-24 x 3/4", G5, Full Thd

64шт.

7

F18519

SHAFT

1шт.

8

F84109

HEAD - outer

2шт.

11-748

BOLT

- 7/16" x 3" rhd. sq. nk.; dbl. nut (25-107)

2шт.

9

F80817

HEAD - inner

2шт.

10

F94191

BAR

- set of (4) R.H. and (4) L.H. (Replaces F82049 when stocks are exhausted)

1шт.

F82049

BAR - set of (4) R.H. and (4) L.H. (Replaced by F94191 when stocks are exhausted)

1шт.

O1632TS1

WASHER - balance, For cylinder (2-1/4" O.D. x 1-1/32" I.D. #18 ga.)

1шт.

113-105

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16" x 1-1/4" N.C. hex.; nut (25-105) L.W. (92-5)

4шт.

11

F81313

RETAINER - cylinder bearing

2шт.

12

F77924

BEARING

- cylinder shaft

2шт.

13

F62107

COLLAR

1шт.

14

F8944

FLANGE

TTE

4шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.; L.W. (92-8)

8шт.

15

F1738

HUB - cylinder drive (Replaces F3406 when exhausted)

1шт.

F3406

HUB

- cylinder drive (Replaced by F1738 when exhausted)

1шт.

16

O30388HT

KEY

- gib

1шт.

17

F8974

SPROCKET ASSY.

SPROCKET - (24T) drive

1шт.

18

F21411

BRACKET - spring, cylinder stripper

2шт.

19

F82683

ROD - adjustment

2шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

4шт.

95-6

WASHER,3/8"

FLATWASHER - 3/8"

2шт.

20

F18980

SPRING

2шт.

21

F18979

CLIP - spring

2шт.

22

F18982

COVER - slot

2шт.

23

F18983

ROD - adjustment

1шт.

132-48

COTTER PIN,1/8" x 1"

PIN - 1/4" x 1" cotter

1шт.

131-528

LOCK NUT,3/8"-24

NUT - 3/8" - 24 N.F., Flex-loc

1шт.

131-415

JAM NUT,Push, Bolt Retainer, 3/8" x 25/32"

1шт.

24

F18988

SCREW

SHIELD - air

1шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

; Nut (25-114), L.W. (92-4) Hex, 1/4"-28 x 1/2", G5, Full Thd

8шт.

25

F83778

STRIPPER - cylinder

1шт.

14-664

BOLT,Hex, 3/8" - 24 x 4", Gr 5

- 3/8" x 4" N.F. hex

3шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

6шт.

26

F83698

SUPPORT - stripper

1шт.

11-612

BOLT

- 3/8" x 3/4" rhd. sq. nk.; nut (25-106) L.W. (92-6)

3шт.

27

F17568

PLATE - filler

8шт.

114-200

BOLT,Hex, 3/8" - 24 x 1", Gr 5

Hex, 3/8"-24 x 1", G5, Full Thd, Nut (129-123) L.W. (192-21)

24шт.

114-209

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

- 3/8" x 3/4" N.F. hex.; L.W. (192-21)

8шт.
