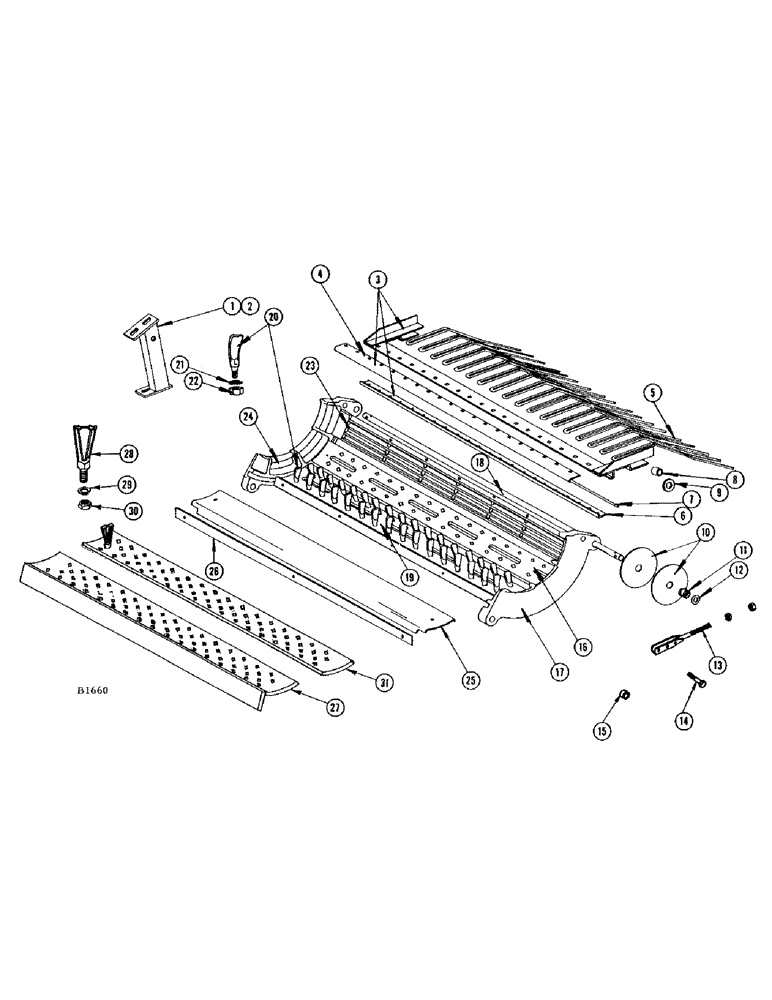

Запчасти Case IH 460 (048) - SPIKE TOOTH CONCAVE, CLOVER CONCAVE (66) - THRESHING

1

F81193

REINFORCEMENT - R.H. side sheet

1шт.

83-820

SET SCREW,Hex Soc, 1/2"-13 x 1 1/4"

SCREW - 1/2" x 1-1/4" N.C. cup pt. soc. hd., set and jam nut (25-148)

1шт.

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, , Nut (25-105), L.W. (92-5) Short NK, 5/16"-18 x 1", G2

2шт.

2

F81194

REINFORCEMENT - L.H., side sheet

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut (25-105), L.W. (92-5) Short NK, 5/16"-18 x 3/4", G2

2шт.

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, , Nut (25-105), L.W. (92-5) Short NK, 5/16"-18 x 1", G2

2шт.

95-5

WASHER,3/8" x 7/8" x .083"

- 5/16"

1шт.

83-820

SET SCREW,Hex Soc, 1/2"-13 x 1 1/4"

SCREW - 1/2" x 1-1/4" N.C. cup pt. soc. hd., set and jam nut (25-148)

2шт.

3

F84890

TINE - grate (Replaces F82490 when exhausted)

1шт.

F82490

TINE - grate (Replaced by F84890 when exhausted)

1шт.

4

F84879

HINGE AND SHAFT - grate tine support (Replaces F16788 when exhausted)

1шт.

5

F18171

TINE

- grate

22шт.

111-108

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G2

BOLT - 1/4" x 3/4" rhd. sq. nk.; nut (25-104) and L.W. (92-4)

22шт.

6

F17826

STRIP

- bolting

1шт.

7

F16788

SHAFT - (Use F84879 when stocks are exhausted)

1шт.

8

O390Z

SPACER - (1/4" x 13/16" pipe)

2шт.

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

- 5/16" x 1-1/2" N.F. hex.; nut (25-115) L.W. (92-5)

2шт.

9

O1594N

WASHER - (3/4" O.D. x 25/64" I.D. #14 ga.)

2шт.

10

F16031

COVER - rear

4шт.

11

A26766

SPRING

2шт.

12

A26436

WASHER

2шт.

13

F84305

ARM - rear concave adjustment

2шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

4шт.

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

14

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

; L.W. (92-6) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

15

F21434

SPACER

- eyebolt

2шт.

F92467

CONCAVE - grain (Replaces F81188 when exhausted)

1шт.

F81188

CONCAVE - grain (Replaced by F92467 when exhausted)

1шт.

16

F16793

CONCAVE - bar

1шт.

B18066

TOOTH

36шт.

194-8

LOCKWASHER

36шт.

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex

36шт.

17

F1439

CIRCLE - L.H. concave

1шт.

18

F16789

SHAFT

- rear

1шт.

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

19

F92470

BAR - concave front (Replaces F81191 when exhausted)

1шт.

F81191

BAR - concave front (Replaced by F92470 when exhausted)

1шт.

20

B18066

TOOTH

36шт.

21

194-8

LOCKWASHER

36шт.

22

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex

36шт.

23

F81903

CONCAVE - open grate

1шт.

24

F1440

CIRCLE - R.H. concave

1шт.

25

F16828

BLANK - concave

1шт.

26

F16795

COVER - front concave slot

1шт.

27

F82685

BAR - concave, front (Clover)

1шт.

28

B18068

TOOTH, clover concave

72шт.

29

194-8

LOCKWASHER, clover concave

72шт.

30

O236T

NUT - 1/2" N.F. hex, clover concave

72шт.

31

F82686

BAR - concave, clover

2шт.

F18989

BAR, clover concave

1шт.

B18068

TOOTH, clover concave

72шт.

194-8

LOCKWASHER, clover concave

72шт.

O236T

NUT - 1/2" N.F. hex, clover concave

72шт.
