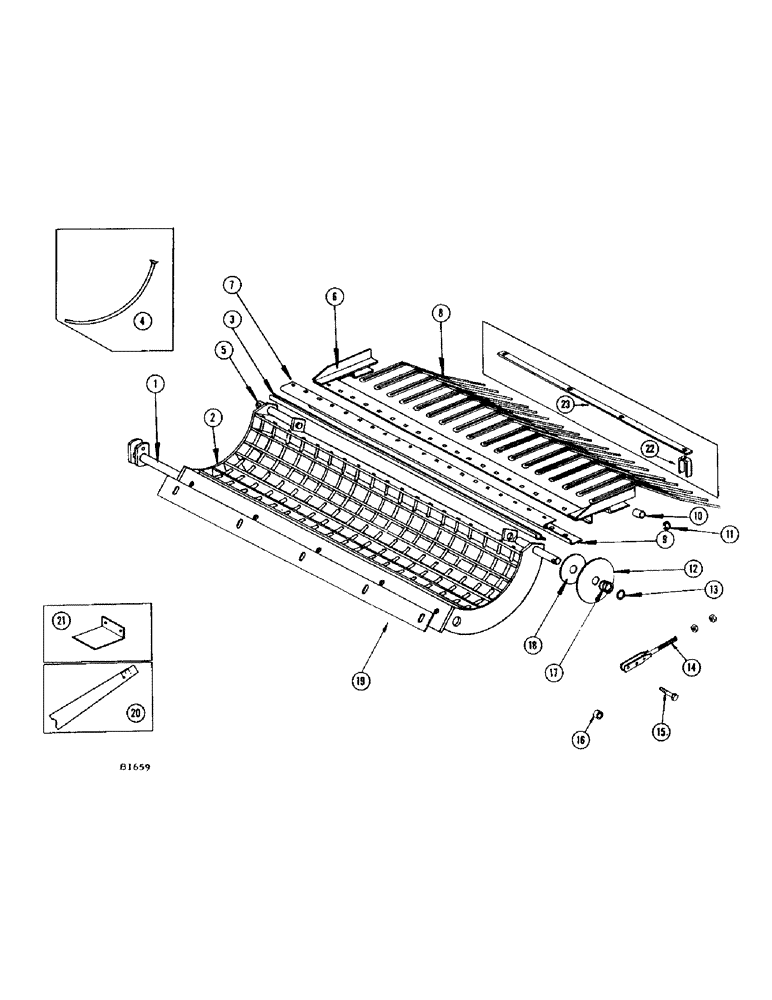

Запчасти Case IH 460 (046) - RUB BAR CONCAVE, FILLER STRIP ATTACHMENT, AND RUBBER COVERED FILLER BAR ATTACHMENT (66) - THRESHING

1

F81319

SHAFT

1шт.

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

2

F83531

CONCAVE - rub bar

1шт.

14-410

SCREW,Hex, 1/4" - 28 x 5/8", Gr 5

BOLT - 1/4" x 5/8" N.F. hex.; nut (25-114) L.W. (92-4)

2шт.

3

F83522

HINGE - grate tine

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Nut (25-106) L.W. (92-6) Hex, 3/8"-16 x 1", G5, Full Thd

6шт.

4

F21430

TINE - concave

39шт.

F21431

STRIP - tine retainer (Not shown)

1шт.

5

F18523

SHAFT - stub

2шт.

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

6

F84886

GRATE

TINE ASSEMBLY - (Replaces F82485 when exhausted)

1шт.

F82485

TINE ASSEMBLY - (Replaced by F84886 when exhausted)

1шт.

7

F17825

HINGE

- support

1шт.

8

F18171

TINE

- grate

22шт.

111-108

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G2

BOLT - 1/4" x 3/4" rhd. sq. nk.; nut (25-104) L.W. (92-4)

22шт.

9

F17826

STRIP

- bolting

1шт.

10

O390Z

SPACER - (1/4" x 13/16" pipe)

2шт.

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

- 5/16" x 1-1/2" N.F. hex.; nut (25-115) L.W. (92-5)

2шт.

11

O1594N

WASHER - (3/4" O.D. x 25/64" I.D. #14 ga.)

2шт.

12

F16031

COVER - rear

2шт.

13

A26436

WASHER - srping retainer (1-3/8" O.D. x 25/32" I.D. #18 ga.)

2шт.

14

F84305

ARM - rear concave adjustment

2шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

4шт.

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

; L.W. (92-6) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

16

F21434

SPACER

- adjustment arm

2шт.

17

A26766

SPRING

2шт.

18

F16032

SPACER - rear concave

1шт.

19

F16025

PLATE

- wear, concave

1шт.

20

F16941

GAUGE - concave clearance

1шт.

21

F16778

COVER

2шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Nut (25-115) L.W. (92-5) Hex, 5/16"-24 x 3/4", G5, Full Thd

4шт.

22

F17888

RETAINER, rub bar concave filler strip attachment

20шт.

F19485

RETAINER, rub bar concave filler strip attachment

4шт.

23

F17887

rub bar concave filler strip attachment

6шт.

111-223

CARRIAGE BOLT,Short NK, 5/16"-18 x 3 1/4", G2

BOLT - 5/16" x 3-1/4" rhd. sq. nk.; nut (129-102) L.W. (192-20), rub bar concave filler strip attachment

24шт.

F22323

rub bar concave filler strip attachment

3шт.

F4351

RETAINER - rub bar concave filler strip attachment

18шт.

111-127

BOLT - 1/2" x 2-3/4" rhd. sq. nk.; dbl. nut (129-101), rub bar concave filler strip attachment Short NK, 1/4"-20 x 2 3/4", G2

18шт.

F91848

magnetic (Can replace F17887 Ref. 23), rub bar concave filler strip attachment

6шт.
