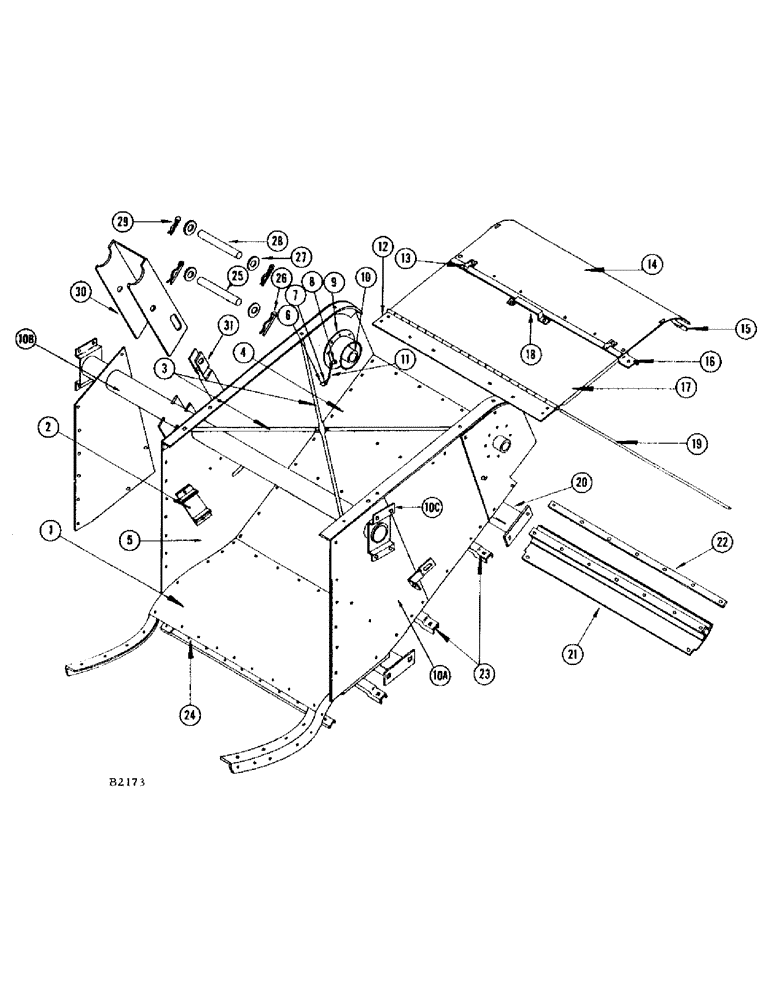

Запчасти Case IH 460 (038) - FEEDER SPOUT (60) - PRODUCT FEEDING

1

F15730

FLOOR - lower, feeder spout

1шт.

12-410

BOLT - 1/4" x 5/8" rhd. sh. sq. nk.; nut (25-104) L.W. (92-4)

12шт.

2

F82074

BRACKET

- lower, feed rake support

2шт.

14-614

SCREW,Hex, 3/8" - 24 x 7/8", Gr 5

BOLT - 3/8" x 7/8" N.F. hex.; nut (25-116) L.W. (92-6)

4шт.

3

F16822

BRACE - cross

2шт.

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

- 1/2" x 1-3/4" N.F. hex.; nut (25-118) L.W. (92-8)

1шт.

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

- 1/2" x 2" N.F. hex.; nut 925-118) L.W. (92-8)

1шт.

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.F. hex.; dbl. nut (25-116)

2шт.

4

F15737

FLOOR - upper feeder spout

1шт.

12-48

BOLT - 1/4" x 1/2" rhd. sh. sq. nk.; nut (25-104) L.W. (92-4)

12шт.

12-410

BOLT - 1/4" x 5/8" rhd. sh. sq. nk.; nut (25-104) L.W. (92-4)

10шт.

12-412

BOLT - 1/4" x 3/4" rhd. sh. sq. nk.; nut (25-104) L.W. (92-4)

2шт.

5

F89187

SHEET - side, R.H. (#8361801 and after)

1шт.

F83841

SHEET - side, R.H. (Before #8361801)

1шт.

6

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

7

O3049CK

ELBOW - grease line, pivot plate hub

1шт.

8

O3048CK

X

UNION - grease line, pivot plate hub

1шт.

9

F83069

HUB - feeder spout pivot plate (Includes bushing)

1шт.

10

F15709

BUSHING - (See upper feed rake shaft illustration)

1шт.

46-412

RIVET,Csk, 1/4" x 13/16"

- 1/4" x 3/4" ctsk. hd.

7шт.

10a

F89186

SHEET - side, L.H. (#8361801 and after) (Also contains Ref. 6, 7, 8, 9, 10)

1шт.

F83656

SHEET - side, L.H. (Before #8361801) (Also contains Ref. 6, 7, 8, 9, 10)

1шт.

10b

F83667

TUBE - torque

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Nut (25-115) fl. wshr. (95-5) L.W. (92-5) Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

10c

F20615

BRACKET - bearing

2шт.

11

F15710

LINE - oil, upper feed shaft bearing

2шт.

12

F20589

STRIP - hinge, feeder spout door

1шт.

13

F86525

CLIP

- spring, door

2шт.

173-99

SCREW,Sl Rnd Hd, #10 - 24 x 5/8"

- #10 x 5/8" rhd. N.C. mach.; nut 9129-7) L.W. (92-3)

2шт.

14

F15717

SHEET - top, feeder spout

1шт.

12-48

BOLT - 1/4" x 1/2" rhd. sq. nk.; nut (25-104) L.W. (92-4)

8шт.

15

F16826

ANGLE - feeder spout top, rear

1шт.

16

F16832

ANGLE - reinforcement, feeder spout

1шт.

17

F80727

DOOR

- feeder spout (Includes handle)

1шт.

18

228-3

HANDLE - door, Stanley #479

1шт.

49-35

RIVET - 3/16" x 5/16" W.B.

2шт.

19

F15764

ROD - hinge, feeder door

1шт.

20

F80718

CHANNEL - cross, feeder spout

2шт.

21

F82068

PLATE - stone trap seal

1шт.

22

F15739

FILLER - feed plate hinge

1шт.

111-102

CARRIAGE BOLT,Short NK, 1/4"-20 x 5/8", G2

BOLT - 1/4" x 5/8" rhd. sq. nk.; nut 925-104) L.W. (92-4)

8шт.

23

F15738

REINFORCEMENT - feeder spout floors

3шт.

12-410

BOLT - 1/4" x 5/8" rhd. sh. sq. nk.; nut 925-104) L.W. (92-4)

4шт.

12-412

BOLT - 1/4" x 3/4" rhd. sh. sq. nk.; nut 925-104) L.W. (92-4)

2шт.

24

F17871

REINFORCEMENT - feeder spout floor

1шт.

25

F20619

PIN - hydraulic lift

1шт.

195-53

WASHER,1" x 2" x .134"

- 1"

2шт.

26

CT1864

COTTER - hair pin

2шт.

27

195-553

WASHER,1", SAE

FLATWASHER - (1" I.D.), high header lift attachment

4шт.

28

F20810

PIN - ram pivot, high header lift attachment

2шт.

29

T25622

COTTER - hair pin, high header lift attachment

4шт.

30

F20809

EXTENSION - header ram, high lift attachment

1шт.

31

F85901

LINK - transport, inner, high header lift attachment

1шт.

114-601

BOLT

BOLT - 5/8" x 2-1/2" N.F. hex.; nut 9129-127) L.W. (197-25), high header lift attachment

2шт.

F85892

LINK - transport, outer (Not shown), high header lift attachment

1шт.

114-404

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

- 1/2" x 2-1/2" N.F. hex.; nut (129-125) L.W. (197-23), high header lift attachment

1шт.
