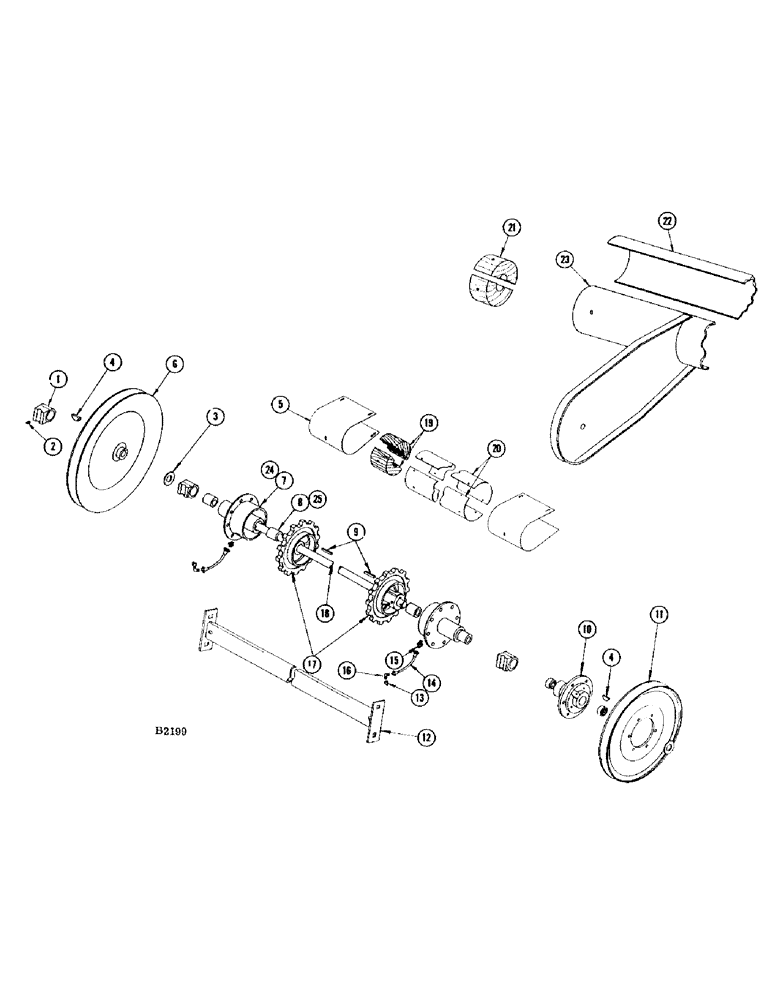

Запчасти Case IH 460 (034) - UPPER FEED RAKE SHAFT, FEED RAKE ANTI WRAP SHIELD (58) - ATTACHMENTS/HEADERS

1

F83093

BEARING

- header pivot

3шт.

2

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

3шт.

3

F62231

WASHER - upper feed rake shaft

1шт.

4

126-29

WOODRUFF KEY,#C, 5/16" x 1 1/8"

Header drive #C, 5/16" x 1 1/8"

2шт.

5

F19567

SHIELD - end

2шт.

11-612

BOLT

- 3/8" x 3/4" rhd. sq. nk.; nut (25-106) L.W. (92-6)

8шт.

6

F83685

SHEAVE - header, driven

1шт.

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

1шт.

7

F83069

HUB - pivot plate (Before #8361801) See Ref. 24

2шт.

8

F15709

BUSHING

2шт.

9

F20957

KEY - sprocket to F20899 shaft

2шт.

F22401

KEY - sprocket to F41815 shaft

2шт.

10

F83684

HUB - header drive

1шт.

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

1шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

Nut (25-116) L.W. (92-6) Hex, 3/8"-24 x 3/4", G5, Full Thd

6шт.

11

F81287

SHEAVE - header drive

1шт.

14-614

SCREW,Hex, 3/8" - 24 x 7/8", Gr 5

BOLT - 3/8" x 7/8" N.F. hex.; nut (25-116) L.W. (92-6)

6шт.

12

F83307

SUPPORT - shield

2шт.

111-816

BOLT - 1/2" x 1" rhd. sq. nk.; nut (129-108) L.W. (92-8)

4шт.

13

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

14

F15710

LINE - oil, upper feed shaft bearing

2шт.

15

O3048CK

X

UNION - grease line, pivot plate hub

2шт.

16

O3049CK

ELBOW - grease line, pivot plate hub

2шт.

17

F1685

SPROCKET - upper, feed rake (15T) (Before #8361801)

2шт.

F1716

SPROCKET - upper, feed rake (15T) (#8361801 and after)

2шт.

18

F20899

SHAFT - upper, feed rake (Before #8361801)

1шт.

F41815

SHAFT - upper, feed rake (#8361801 and after)

1шт.

19

F4338

SUPPORT - shield, feed rake shaft (Before #8361801), anti-wrap

6шт.

186-71

SCREW - #12 x 1" rhd. wood, feed rake anti-wrap shield

12шт.

20

F18059

SHIELD - upper, feed rake shaft (Before #8361801), anti-wrap

2шт.

11-612

BOLT

- 3/8" x 3/4" N.C. rhd. sq. nk.; nut (25-106) L.W. (92-6), feed rake anti-wrap shield

6шт.

21

F4352

SUPPORT - shield, upper feed rake shaft (#8361801 and after), anti-wrap

4шт.

186-69

SCREW - #12 x 3/4" rhd. wood, feed rake anti-wrap shield

8шт.

22

F22249

SHIELD - center, anti-wrap (#8361801 and after), feed rake shield

1шт.

23

F84928

SHIELD - outer, anti-wrap (#8361801 and after), feed rake shield

1шт.

24

F91875

HUB - pivot plate (#8631801 and after), feed rake anti-wrap shield

2шт.

25

10545K

BUSHING

feed rake anti-wrap shield

2шт.
