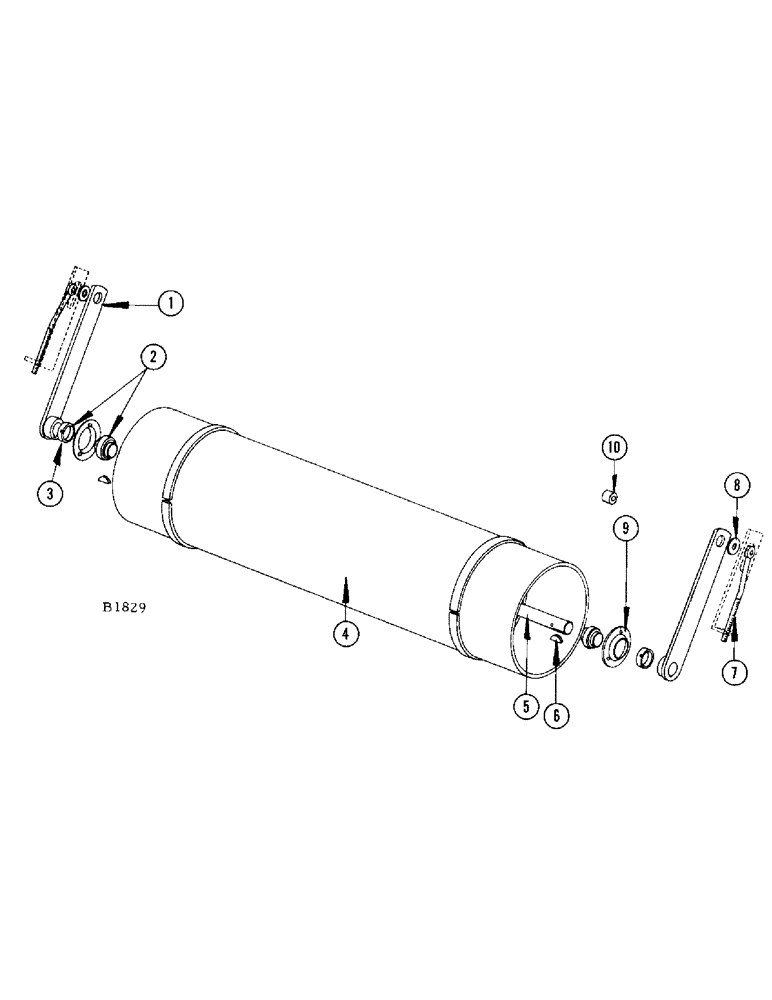

Запчасти Case IH 460 (032[1]) - LOWER FEED RAKE SHAFT, BEFORE S/N 8361801 (58) - ATTACHMENTS/HEADERS

1

F81691

ARM - adjustment, lower feed rake shaft before number 8361801

2шт.

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), , Lower feed rake shaft before number 8361801 3/16" x 2"

2шт.

2

F94133

HOUSING ASSY.

BEARING, lower feed rake shaft before number 8361801

2шт.

3

F10138

COLLAR

lower feed rake shaft before number 8361801

1шт.

4

F82574

DRUM - lower, feed rake shaft before number 8361801

1шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.; L.W. , lower feed rake shaft before number 8361801

6шт.

5

F17397

SHAFT

- lower, feed rake, before number 8361801

1шт.

6

126-29

WOODRUFF KEY,#C, 5/16" x 1 1/8"

Lower feed rake shaft before number 8361801 #C, 5/16" x 1 1/8"

2шт.

7

F17402

BOLT - eye, lower feed rake shaft before number 8361801

2шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex, lower feed rake shaft before number 8361801

4шт.

8

O273B

WASHER - between hub arm and side sheet, lower feed rake shaft before number 8361801

2шт.

9

B18282

FLANGE

- for 3074CSA bearing, lower feed rake shaft before number 8361801

2шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.; L.W. (92-5), lower feed rake shaft before number 8361801

6шт.

10

F18490

SPACER

- between hub arm and eyebolt, lower feed rake shaft before number 8361801

2шт.

13-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

Nut (25-107) L.W. (92-7), lower feed rake shaft before number 8361801 Hex, 7/16"-14 x 2", G5

2шт.
