Запчасти Case IH 460 (030[1]) - HEADER SKID ATTACHMENT (58) - ATTACHMENTS/HEADERS

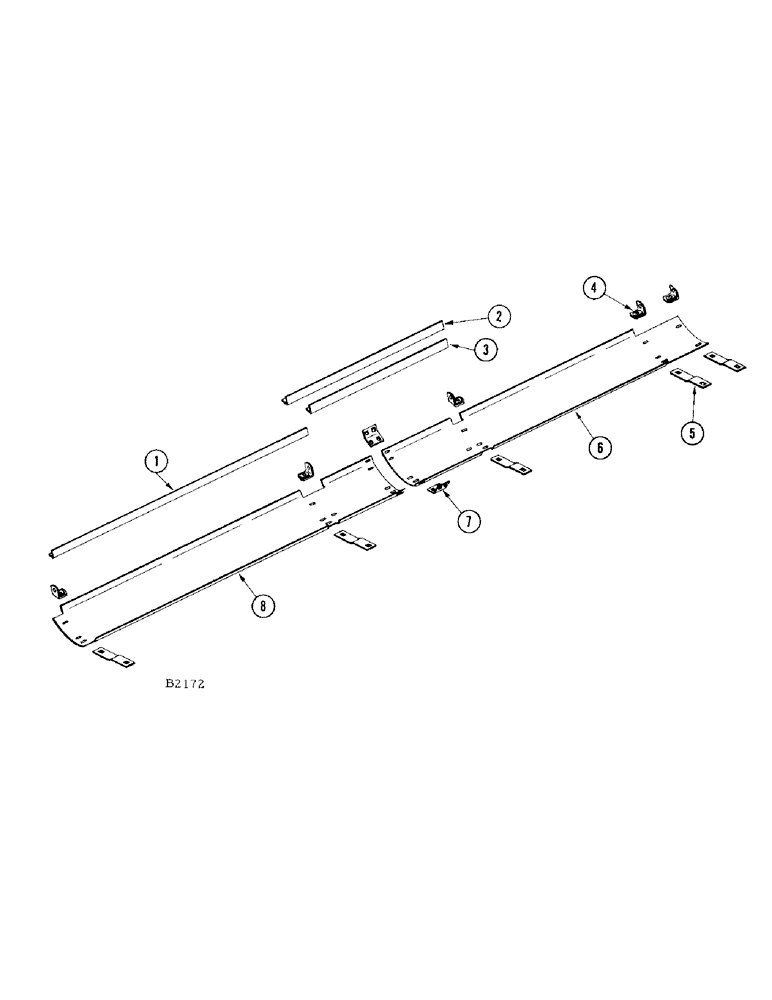

Схема запчастей Case IH 460 - (030[1]) - HEADER SKID ATTACHMENT (58) - ATTACHMENTS/HEADERS
5
2
4
3
1
7
8
6

№

Артикул

Название

Примечание

Количество

1

F20806

REINFORCEMENT - R.H. (10 ft. header), skid attachment

1шт.

F41363

REINFORCEMENT - R.H. inner (12 ft. header), header skid attachment

1шт.

F41361

REINFORCEMENT - R.H. outer (12 ft. header), skid attachment

1шт.

2

F19992

PACKAGE

REINFORCEMENT - center, header skid attachment

1шт.

111-302

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G2

BOLT - 3/8" x 3/4" rhd. sq. nk.; nut (129-103) L.W. (192-21), header skid attachment

2шт.

3

F20805

REINFORCEMENT - L.H., header skid attachment

1шт.

111-302

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G2

BOLT - 3/8" x 3/4" rhd. sq. nk.; nut (129-103) L.W. (192-21), header skid attachment

4шт.

4

F83117

BRACKET - rear (5-10 ft., 6-12 ft. headers), skid attachment

1шт.

114-104

BOLT,Hex, 5/16" - 24 x 1", Gr 5

- 5/16" x 1" N.F. hex.; nut (129-122) L.W. (192-20), header skid attachment

1шт.

114-101

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

Nut (129-122) L.W. (192-20), header skid attachment Hex, 5/16"-24 x 7/8", G5, Full Thd

4шт.

5

F12410

CLIP - front (5-10 ft., 6-12 ft. headers), skid attachment

1шт.

111-302

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G2

BOLT - 3/8" x 3/4" rhd. sq. nk.; nut (129-103) L.W. (192-21), header skid attachment

10шт.

6

F20808

PLATE - skid, L.H., header attachment

1шт.

114-200

BOLT,Hex, 3/8" - 24 x 1", Gr 5

Hex, 3/8"-24 x 1", G5, Full Thd; L.W. (192-21) Wshr. (195-525), Header skid attachment

3шт.

7

F19989

SPLICE, header skid attachment

2шт.

111-302

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G2

BOLT - 3/8" x 3/4" rhd. sq. nk.; nut (129-103) L.W. (192-21), header skid attachment

8шт.

8

F20807

PLATE - skid, R.H. (10 ft. header), header skid attachment

1шт.

111-302

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G2

BOLT - 3/8" x 3/4" rhd. sq. nk.; nut (129-103) L.W. (192-21), header skid attachment

2шт.

114-200

BOLT,Hex, 3/8" - 24 x 1", Gr 5

Hex, 3/8"-24 x 1", G5, Full Thd; L.W. (192-21) Wshr. (195-525), Header skid attachment

2шт.

F41362

PLATE - skid, R.H. (12 ft. headers), skid attachment

1шт.

111-302

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G2

BOLT - 3/8" x 3/4" rhd. sq. nk.; nut (129-103) L.W. (192-21), header skid attachment

2шт.

114-200

BOLT,Hex, 3/8" - 24 x 1", Gr 5

Hex, 3/8"-24 x 1", G5, Full Thd; L.W. (192-21) Wshr. (195-525), Header skid attachment

2шт.

Выбрано товаров: 22
