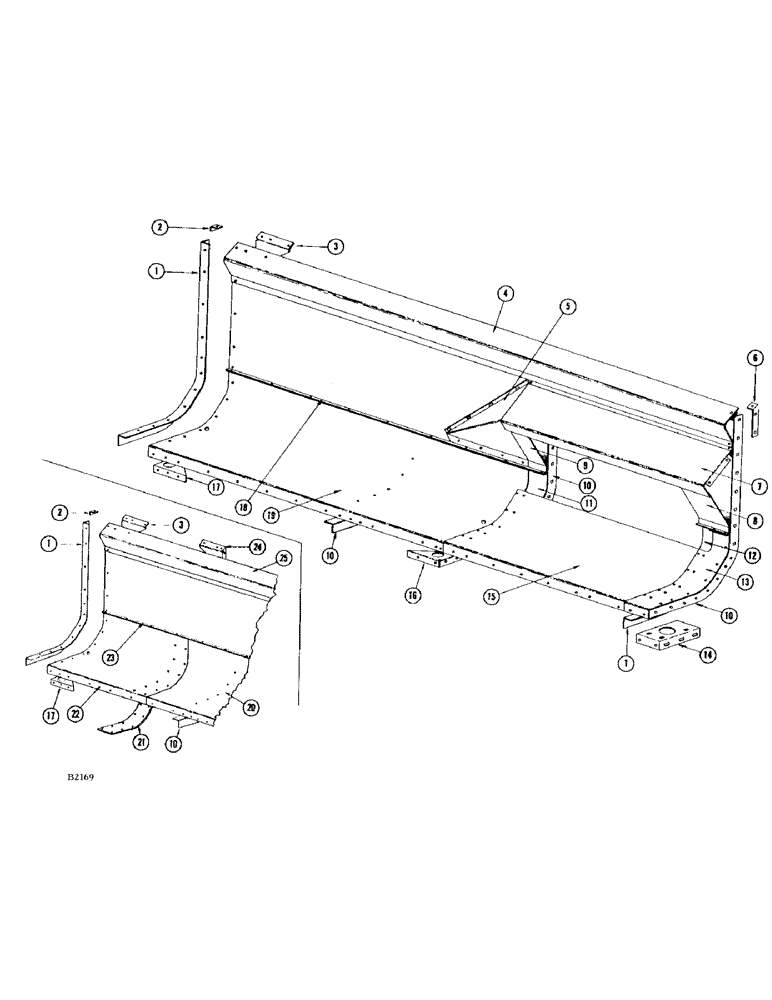

Запчасти Case IH 460 (026) - HEADER AUGER TROUGH (58) - ATTACHMENTS/HEADERS

1

F15719

RAIL - hook, L.H.

2шт.

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, , Nut (25-115) L.W. (92-5) Hex, 5/16"-24 x 5/8", G5, Full Thd

3шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

Nut (25-116) L.W. (92-6) Hex, 3/8"-24 x 3/4", G5, Full Thd

1шт.

12-410

BOLT - 1/4" x 5/8" rhd. sq. nk.; nut (25-104) L.W. (92-4)

3шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut (25-105), L.W. (92-5) Short NK, 5/16"-18 x 3/4", G2

3шт.

2

F81280

CLIP - top sheet, reel support arm

2шт.

12-512

BOLT

- 5/16" x 3/4" rhd. sh. sq. nk.; nut (25-105) L.W. (92-5)

1шт.

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

- rhd. N.C. mach.; wshr. (95-4) L.W. (92-4)

1шт.

3

F41351

GUSSET - R.H., reel support

1шт.

14-416

SCREW,Hex, 1/4" - 28 x 1", Gr 5

BOLT, Hex, 1/4"-28 x 1, G5, Full Thd, Nut (25-114) L.W. (92-4)

1шт.

111-102

CARRIAGE BOLT,Short NK, 1/4"-20 x 5/8", G2

BOLT - 1/4" x 5/8" rhd. sq. nk.; nut (25-104) L.W. (92-4)

2шт.

12-512

BOLT

- 5/16" x 3/4" rhd. sq. nk.; nut (25-105) L.W. (92-5)

3шт.

4

F83664

SHEET - top and back (10 ft. header)

1шт.

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- 1/4" x 3/4" N.F. hex.; nut (25-114) L.W. (92-4)

3шт.

14-514

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

Nut (25-115) L.W. (92-5) Hex, 5/16"-24 x 7/8", G5, Full Thd

2шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

Nut (25-116) L.W. (92-6) Hex, 3/8"-24 x 3/4", G5, Full Thd

2шт.

12-48

BOLT - 1/4" x 1/2" rhd. sq. nk.; nut (25-104) L.W. (92-4)

18шт.

12-612

BOLT - 3/8" x 3/4" rhd. sq. nk.; nut (25-106) L.W. (92-6)

3шт.

182-203

SCREW

- 1/4" x 5/8" N.C. pan hd.; nut (25-104) L.W. (92-4)

3шт.

5

F20596

POINT - feeder chain shield

1шт.

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

- 1/4" x 1/2" N.C. rhd.; nut (25-104) L.W. (92-4)

5шт.

75-410

SCREW,Rd, 1/4" - 20 x 5/8"

- 1/4" x 5/8" N.C. rhd. mach.; nut (25-104) L.W. (92-4)

4шт.

95-4

WASHER,1/4"

- flat 1/4"

8шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex.; nut (25-116) L.W. (92-6)

2шт.

195-25

WASHER,3/8"

- 3/8"

1шт.

6

F20606

STRAP - L.H. reel support

1шт.

12-512

BOLT

- 5/16" x 3/4" rhd. sq. nk.; nut (25-105) L.W. (92-5)

1шт.

7

F20595

SHIELD - chain, feed rake

1шт.

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- 1/4" x 3/4" N.F. hex.; nut (25-114)

2шт.

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

- 1/4" x 1/2" N.C. rhd. mach.; nut (25-104) L.W. (92-4)

7шт.

8

F20603

SHIELD - upper L.H. inlet

1шт.

75-410

SCREW,Rd, 1/4" - 20 x 5/8"

- 1/4" x 5/8" N.C. rhd. mach.; nut (25-104)

2шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (195-18) 1/4"

2шт.

9

F20237

SHIELD - upper R.H., inlet

1шт.

75-410

SCREW,Rd, 1/4" - 20 x 5/8"

- 1/4" x 5/8" N.C. rhd. mach.; nut (25-104)

2шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (195-18) 1/4"

2шт.

10

F15720

RAIL - hook, R.H. (3-10 ft., 4-12 ft. headers)

1шт.

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, , Nut (25-115) L.W. (92-5) Hex, 5/16"-24 x 5/8", G5, Full Thd

3шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

Nut (25-116) L.W. (92-6) Hex, 3/8"-24 x 3/4", G5, Full Thd

1шт.

12-410

BOLT - 1/4" x 5/8" rhd. sq. nk.; nut (25-104) L.W. (92-4)

3шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT - 5/16" x 7/8" N.F. hex.; nut (25-115) L.W. (92-5)

3шт.

11

F20235

SHIELD - R.H. lower inlet

1шт.

12

F20234

SHIELD - L.H. lower inlet

1шт.

13

F20591

FLOOR - L.H. auger trough

1шт.

164-31

HEX SOC SCREW,Flat Hd, 1/4" - 20 x 3/4"

SCREW - 1/4" x 3/4" N.C. fl. hd. hex. soc. cap

2шт.

14

F20599

PLATE - reinforcement, L.H.

1шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

Nut (25-116) L.W. (92-6) Hex, 3/8"-24 x 3/4", G5, Full Thd

2шт.

11-520

X

BOLT - 5/16" x 1-1/4" rhd. sq. nk.; nut (25-105) L.W. (92-5)

2шт.

15

F19670

FLOOR - center, auger trough

1шт.

77-46

SCREW

- 1/4" x 3/8" N.C. truss hd.; nut (25-104) and L.W. (92-4)

3шт.

164-31

HEX SOC SCREW,Flat Hd, 1/4" - 20 x 3/4"

SCREW - 1/4" x 3/4" N.C. fl. hd. hex. socket cap

8шт.

25-104

NUT,1/4"-20, G5

; L.W. (92-4) wshr. (95-4) 1/4"-20, G5

8шт.

16

F15766

PLATE - L.H., reinforcement (3-10 ft., 4-12 ft.)

1шт.

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- 5/16" x 1" N.F. hex.; nut (25-115) L.W. (92-5)

3шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

Nut (25-116) L.W. (92-6) Hex, 3/8"-24 x 3/4", G5, Full Thd

3шт.

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, , Nut (25-105), L.W. (92-5) Short NK, 5/16"-18 x 1", G2

12шт.

17

F15765

PLATE - R.H. reinforcement (3-10 ft., 4-12 ft.)

1шт.

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- 5/16" x 1" N.F. hex.; nut (25-115) L.W. (92-5)

3шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

Nut (25-116) L.W. (92-6) Hex, 3/8"-24 x 3/4", G5, Full Thd

3шт.

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, , Nut (25-105), L.W. (92-5) Short NK, 5/16"-18 x 1", G2

12шт.

14-514

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

Nut (25-115) L.W. (92-5) Hex, 5/16"-24 x 7/8", G5, Full Thd

1шт.

18

F41433

STRIPPER - (10 ft. header)

1шт.

182-203

SCREW

- 1/4" x 5/8" N.C. pan hd.; nut (25-104) L.W. (92-4)

10шт.

19

F20590

FLOOR - R.H., auger trough (10 ft. header)

1шт.

164-31

HEX SOC SCREW,Flat Hd, 1/4" - 20 x 3/4"

SCREW - 1/4" x 3/4" N.C. fl. hd. hex. socket cap

4шт.

25-104

NUT,1/4"-20, G5

; L.W. (92-4) wshr. (95-4) 1/4"-20, G5

4шт.

20

F41343

FLOOR - R.H., auger trough (12 ft. header)

1шт.

164-31

HEX SOC SCREW,Flat Hd, 1/4" - 20 x 3/4"

SCREW - 1/4" x 3/4" N.C. fl. hd. hex. socket cap

4шт.

25-104

NUT,1/4"-20, G5

; L.W. (92-4) wshr. (95-4) 1/4"-20, G5

4шт.

21

F41374

PLATE - connecting, R.H. floor (12 ft. header)

1шт.

164-31

HEX SOC SCREW,Flat Hd, 1/4" - 20 x 3/4"

SCREW - 1/4" x 3/4" N.C. fl. hd. hex. socket cap

4шт.

25-104

NUT,1/4"-20, G5

; L.W. (92-4) wshr. (95-4) 1/4"-20, G5

4шт.

22

F41375

EXTENSION - R.H. auger trough floor (12 ft. header)

1шт.

164-31

HEX SOC SCREW,Flat Hd, 1/4" - 20 x 3/4"

SCREW - 1/4" x 3/4" N.C. fl. hd. hex. socket cap

2шт.

25-104

NUT,1/4"-20, G5

; L.W. (92-4) wshr. (95-4) 1/4"-20, G5

2шт.

23

F41434

STRIPPER - (12 ft. header)

1шт.

182-203

SCREW

- 1/4" x 5/8" N.C. pan hd.; wshr. (195-18)

16шт.

25-104

NUT,1/4"-20, G5

; L.W. (92-4) 1/4"-20, G5

16шт.

24

F41370

GUSSET - pickup support (12 ft. header)

1шт.

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, , Nut (25-115) L.W. (92-5) Hex, 5/16"-24 x 5/8", G5, Full Thd

2шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Nut (25-115) L.W. (92-5) Hex, 5/16"-24 x 3/4", G5, Full Thd

1шт.

12-410

BOLT - 1/4" x 5/8" rhd. sq. nk.; nut (25-104) L.W. (92-4)

1шт.

11-510

SCREW,Short Nk, 5/16" - 18 x 5/8", Gr 2

BOLT - 5/16" x 5/8" rhd. sq. nk.; nut (25-105) L.W. (92-5)

1шт.

25

F85835

SHEET - top and back (12 ft. header)

1шт.

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- 1/4" x 3/4" N.F. hex.; nut (25-114) L.W. (92-4)

3шт.

14-514

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

Nut (25-115) L.W. (92-5) Hex, 5/16"-24 x 7/8", G5, Full Thd

2шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

Nut (25-116) L.W. (92-6) Hex, 3/8"-24 x 3/4", G5, Full Thd

6шт.

12-48

BOLT - 1/4" x 1/2" rhd. sq. nk.; nut (25-104) L.W. (92-4)

20шт.

12-412

BOLT - 1/4" x 3/4" rhd. sq. nk.; nut (25-104) L.W. (92-4)

1шт.

12-612

BOLT - 3/8" x 3/4" rhd. sq. nk.; nut (25-106) L.W. (92-6)

6шт.

182-203

SCREW

- 1/4" x 5/8" N.C. pan hd.; nut (25-104) L.W. (92-4)

3шт.

25-104

NUT,1/4"-20, G5

; L.W. (92-4) wshr. (95-4) 1/4"-20, G5

2шт.
