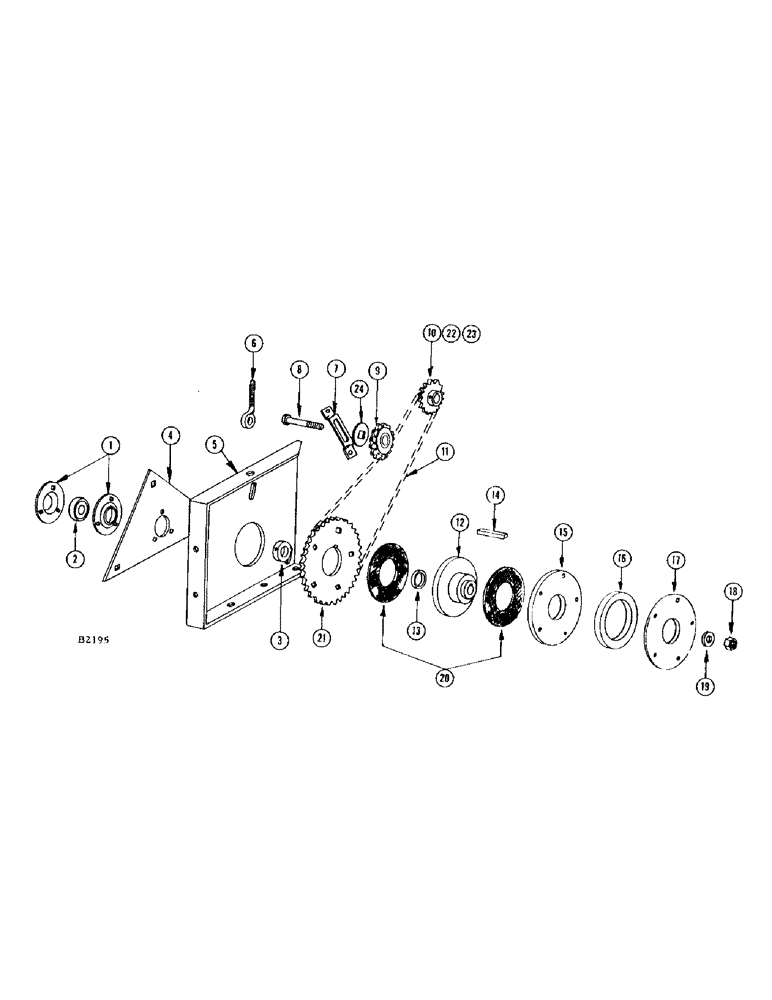

Запчасти Case IH 460 (024) - HEADER AUGER CLUTCH AND DRIVE (58) - ATTACHMENTS/HEADERS

1

F62225

FLANGE

2шт.

2

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING - L.H. end, auger shaft

1шт.

3

F62226

COLLAR

1шт.

4

F15804

PLATE - L.H. auger adjustment

1шт.

5

F20268

BRACKET - auger support

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Nut (25-115) L.W. (92-5) Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

6

F17753

EYEBOLT - auger adjustment

1шт.

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, , Dbl. nut (25-105,) L.W. (92-5) Short NK, 5/16"-18 x 1", G2

1шт.

7

F20626

STRAP - tightener

1шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

Nut (25-116) L.W. (92-6) Hex, 3/8"-24 x 3/4", G5, Full Thd

1шт.

14-410

SCREW,Hex, 1/4" - 28 x 5/8", Gr 5

BOLT - 1/4" x 5/8" N.F. hex.; nut (25-114) L.W. (92-4)

1шт.

8

11-1036

BOLT (MACHINE)

BOLT - 5/8" x 2-1/4" rhd. sq. nk.

1шт.

25-1010

NUT,5/8"-11, G5

L.W. (92-10) 5/8"-11, G5

1шт.

9

F6078

SPROCKET ASSY.

SPROCKET - tightener, main header (17T)

1шт.

10

F81741

SPROCKET - auger drive (22T)

1шт.

11

F20636

CHAIN - auger drive (See chain page)

1шт.

12

F82072

HUB - auger drive

1шт.

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

2шт.

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

2шт.

13

F17923

BEARING

1шт.

14

O6267HT

KEY

- drive hub

1шт.

15

F17495

PLATE - thrust

1шт.

16

F17496

SPRING - rubber

1шт.

17

F22250

PLATE

- pressure (Replaces F17494 when stocks exhausted)

1шт.

F17494

PLATE

- pressure (Replaced by F22250 when stocks exhausted)

1шт.

18

131-37

LOCK NUT,3/4"-16

NUT - 3/4" N.F. stop, Esna

1шт.

19

95-12

WASHER,3/4"

- () 3/4"

1шт.

20

F82061

FACING - slip clutch (Set of 2)

1шт.

21

F17493

SPROCKET - header auger drive, driven (45T)

1шт.

111-218

BOLT - 5/16" x 2" rhd. sq. nk.; Flex-loc nut (131-575)

5шт.

111-233

BOLT - 5/16" x 2-1/4" N.F. sq. nk.

1шт.

22

F81819

SPROCKET - (26T) header auger drive (197 RPM)

1шт.

23

F81747

SPROCKET - (18T) auger drive (132 RPM)

1шт.

24

O2287CS

WASHER

1шт.
