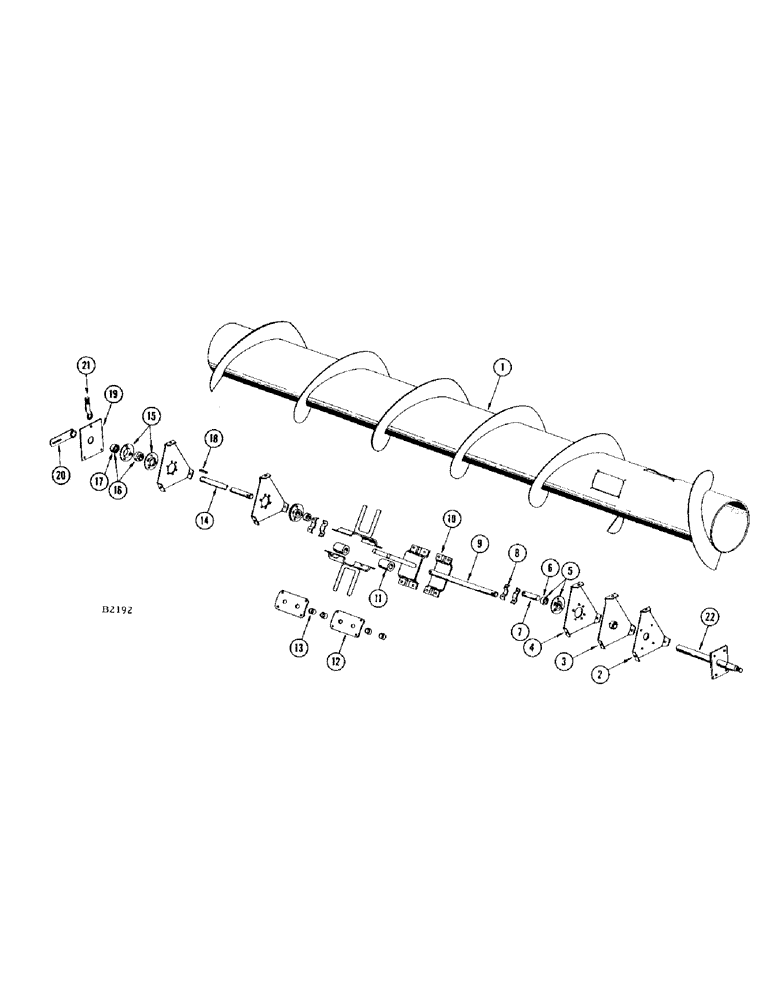

Запчасти Case IH 460 (022) - HEADER AUGER (58) - ATTACHMENTS/HEADERS

1

F83673M

AUGER - header (20" inline finger) 10 ft. header

1шт.

F85852M

AUGER - header (20" inline finger) 12 ft. header

1шт.

F83692

TUBE AND FLIGHTING - (10 ft. header

1шт.

75-612

SCREW - 3/8" x 3/4" rhd. mach.; nut (25-106) L.W. (92-6)

15шт.

F85876

TUBE AND FLIGHTING - (12 ft. header)

1шт.

75-612

SCREW - 3/8" x 3/4" rhd. mach.; nut (25-106) L.W. (92-6)

15шт.

2

F18442

BULKHEAD - outer drive

1шт.

3

F18441

HEAD

BULKHEAD - inner drive

1шт.

4

O5114CS

PLATE - mounting

3шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut (25-105), L.W. (92-5) Short NK, 5/16"-18 x 3/4", G2

9шт.

5

N5077

FLANGED BEARING

BEARING

2шт.

6

F52076

COLLAR

1шт.

7

O4241CS

SHAFT - stub

1шт.

8

F7473

ARM

- crank

4шт.

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

- 5/16" x 2" N.F. hex.; nut (25-115) L.W. (92-5)

4шт.

9

F20639

SHAFT - roller

1шт.

10

F86287

FINGER

4шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut (25-105), L.W. (92-5) Short NK, 5/16"-18 x 3/4", G2

8шт.

11

F11606

BUSHING

- roller

2шт.

12

F76158

LARGE PLATE

PLATE - cover

4шт.

13

F6658

BUSHING

- finger

2шт.

187-348

SELF-TAP SCREW,Slotted Pan Hd, 1/4" x 5/8"

SCREW - #14 x 5/8" pan hd. self tapping

16шт.

445406

SPRING NUT,Tinn, 1/4"-14

SPEED NUT - Tinnerman, #C7318-14A1

16шт.

14

F20638

SHAFT - control (10 ft. header)

1шт.

F41364

SHAFT - control (12 ft. header)

1шт.

15

B18282

FLANGE

2шт.

16

2950CSA

HOUSING ASSY.

BEARING

1шт.

17

O4233CS

COLLAR

1шт.

18

F62223

KEY

- finger control arm

1шт.

19

F15811

RING - R.H. end, auger adjustment

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, ; Wshr. (195-21) Short NK, 5/16"-18 x 3/4", G2

2шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.; L.W. (92-5)

2шт.

20

F81959

ARM - adjustment, finger control

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, ; Wshr. (195-21) Short NK, 5/16"-18 x 3/4", G2

1шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.; L.W. (92-5)

1шт.

21

F17753

BOLT - eye

1шт.

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, , L.W. (92-5) Short NK, 5/16"-18 x 1", G2

1шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

2шт.

22

F83674

SHAFT - auger drive

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex.; nut (25-116) L.W. (92-6)

4шт.
