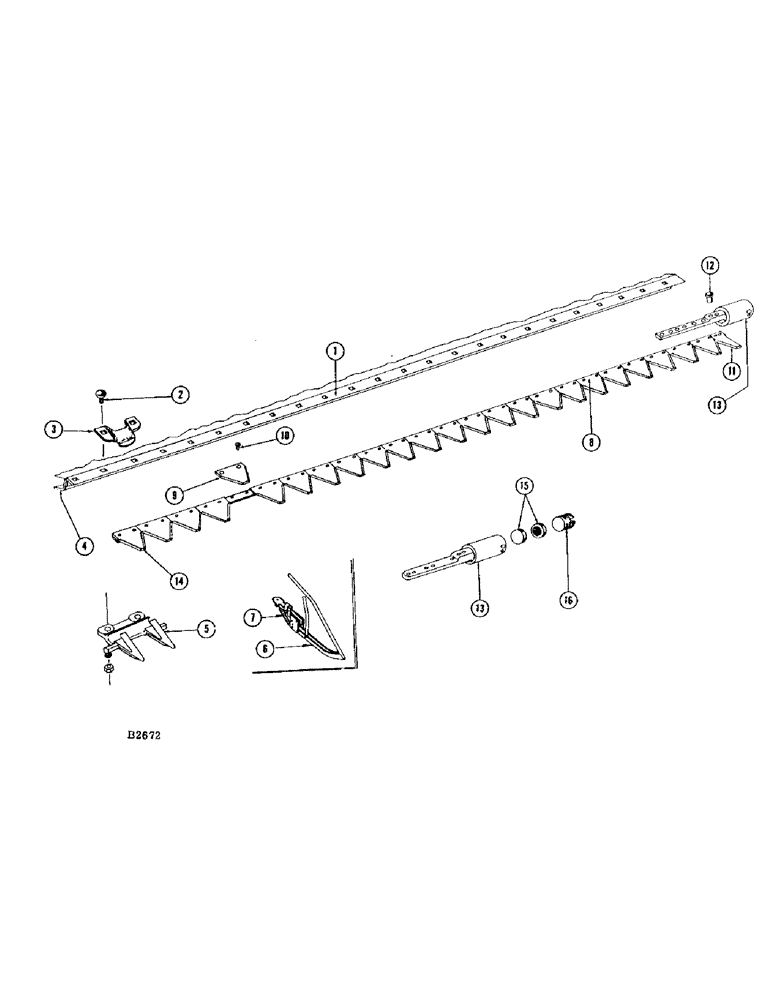

Запчасти Case IH 460 (021A) - SICKLE AND CUTTER BAR, S/N 8361801 AND AFTER (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
F20597
RAIL - cutter bar (10 ft. header)
1шт.
F41349
RAIL - cutter bar (12 ft. header)
1шт.
2
111-304
BOLT - 3/8" x 1-1/4" N.F. rhd. sq. nk. #5 (For Ref. 3 & 5)
1шт.
3
F13511
CLIP
- hold down (10-10 ft., 12-12 ft.)
1шт.
4
F20598
REINFORCEMENT - cutter bar (10 ft. header)
1шт.
11-514
CARRIAGE BOLT,Short NK, 5/16"-18 x 7/8", G2
BOLT - 5/16" x 7/8" rhd. sq. nk.; nut 925-105) L.W. (92-5)
9шт.
F41350
REINFORCEMENT - cutter bar (12 ft. header)
1шт.
11-514
CARRIAGE BOLT,Short NK, 5/16"-18 x 7/8", G2
BOLT - 5/16" x 7/8" rhd. sq. nk.; nut (25-105) L.W. (92-5)
10шт.
5
F3154
GUARD
- sickle 19-10 ft., 23-12 ft.
1шт.
25-116
NUT,Hex, 3/8"-24, G5
- 3/8" N.F. hex.; L.W. (92-6)
1шт.
111-304
BOLT - 3/8" x 1-1/4" N.F. rhd. sq. nk.
1шт.
F3153
GUARD - sickle, L.H. end
1шт.
25-116
NUT,Hex, 3/8"-24, G5
- 3/8" N.F. hex.; L.W. (92-6)
2шт.
6
F86299
GUARD
1шт.
7
A30455
SPRING
1шт.
8
F92623
KNIFE ASSY
SICKLE - (10 ft. header)
1шт.
F88170
SICKLE - (12 ft. header)
1шт.
9
MT944S
KNIFE SECTION
SECTION - underserrated (Standard)
1шт.
T13492
RIVET
- (#5-1/2" x 7/8" rhd. chrome plated) sickle head
1шт.
10
Z1690
RIVET
- (#5-1/2" x 9/16" rhd.) sections to bar (1 lb. pkg.)
1шт.
T13489
RIVET
- (#5-1/2" x 9/16" rhd. chrome plated)
1шт.
11
F13701
PLATE - filler
1шт.
47-418
RIVET - (1/4" x 1-1/8" flat hd.) filler, Serial Range: plate-head
2шт.
12
Z1716
RIVET
- (#5-1/2" x 1" rhd.) sickle head to bar (1 lb. pkg.)
5шт.
T13492
RIVET
- (#5-1/2" 7/8" rhd. chrome plated)
5шт.
13
F77330
HEAD
- sickle
1шт.
14
F22513
CUTTER BAR
HALF SECTION - R.H. end
1шт.
F59129
HALF SECTION - R.H. (Chrome plated)
1шт.
15
A26629
BEARING
- pitman socket (1 each side of head)
2шт.
16
F8360
ADJUSTMENT SCREW,1 5/16" - 18 x 3/4"
- adjusting, pitman
1шт.
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, 1/8" str.
1шт.
132-24
COTTER PIN,3/32" x 1/2"
PIN, SPLIT (COTTER), 3/32" x 1/2"
2шт.
Выбрано товаров: 34
