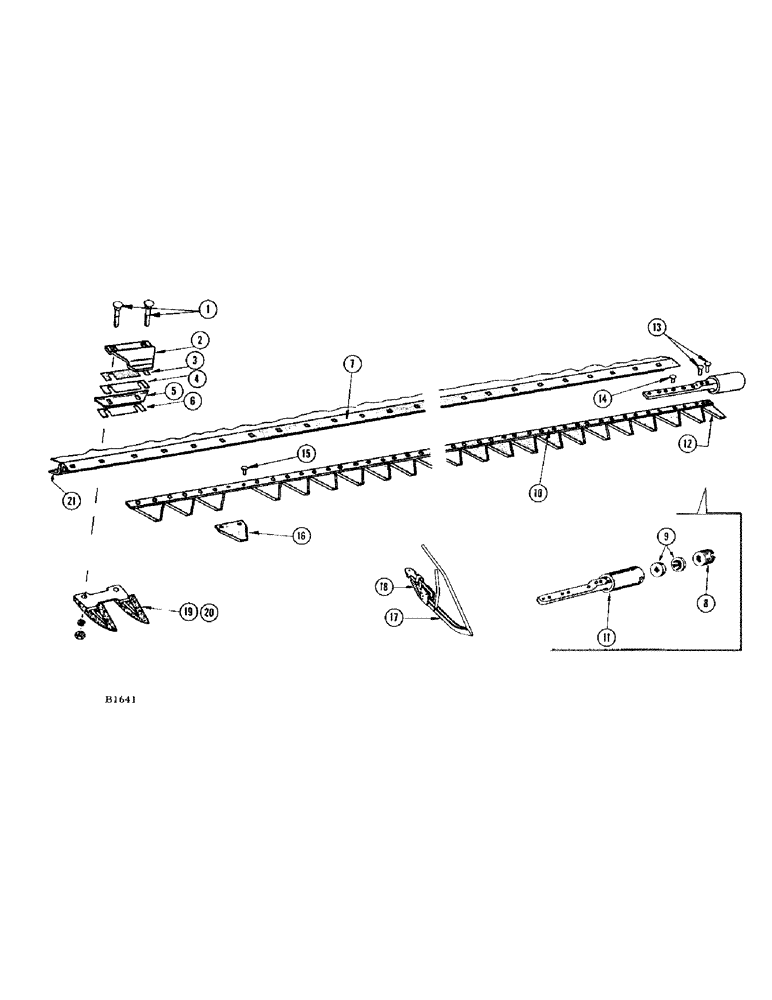

Запчасти Case IH 460 (020) - SICKLE AND CUTTER BAR, BEFORE S/N 8361801 (58) - ATTACHMENTS/HEADERS

1

F76562

BOLT - sickle guard (3/8" x 1-1/2" rhd. sq. nk. w/nut)

1шт.

2

F8356

CLIP

- hold down (10-10 ft., 12-12 ft.)

1шт.

3

E3354S

SHIM - hold down clip (26 ga.)

1шт.

4

F8355

SHIM - hold down clip (20 ga.)

1шт.

5

F7098

LARGE PLATE

PLATE - chafing (10-10 ft., 12-12 ft.)

1шт.

6

F9392

SHIM - hold down clip (10-10 ft., 12-12 ft.)

1шт.

7

F20597

RAIL - cutter bar (10 ft. header)

1шт.

F41349

RAIL - cutter bar (12 ft. header)

1шт.

8

F8360

ADJUSTMENT SCREW,1 5/16" - 18 x 3/4"

- adjusting

1шт.

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" str., grease

1шт.

9

A26629

BEARING

- pitman socket

2шт.

10

F82508

KNIFE ASSY

SICKLE - (10 ft. header)

1шт.

TF83857

SICKLE - (12 ft. header)

1шт.

11

F77330

HEAD

- sickle

1шт.

12

F9956

PLATE

- filler, L.H. end of sickle

1шт.

13

45-418

RIVET,Button, 6.35mm OD x 28.57mm L

- (1/4" x 1-1/8" rd. hd.) sickle head

2шт.

14

Z1702

RIVET

- #5 (1/2" x 7/8") rhd. (1 lb. pkg. - 111 rivets)

1шт.

15

Z1690

RIVET

- #5 (1/2" x 9/16") rhd. (1 lb. pkg. - 160 rivets)

1шт.

16

F11304

KNIFE SECTION

SECTION - sickle (40-10 ft., 48-12 ft.)

1шт.

17

F86299

GUARD - pickup, grain savings

1шт.

18

A30455

SPRING

1шт.

19

F3146

GUARD

- forged (19-10 ft., 23-12 ft. headers)

1шт.

20

F3147

GUARD

- end, forged

1шт.

111-304

BOLT - 3/8" x 1-1/4" rhd. sq. nk.; nut (25-116) L.W. (92-6)

2шт.

21

F20598

REINFORCEMENT - cutter bar (10 ft. header)

1шт.

11-514

CARRIAGE BOLT,Short NK, 5/16"-18 x 7/8", G2

BOLT - 5/16" x 7/8" rhd. sq. nk.; nut (25-105 ) L.W. (92-5)

9шт.

F41350

REINFORCEMENT - cutter bar (12 ft. header)

1шт.

11-514

CARRIAGE BOLT,Short NK, 5/16"-18 x 7/8", G2

BOLT - 5/16" x 7/8" rhd. sq. nk.; nut (25-105) L.W. (92-5)

10шт.
