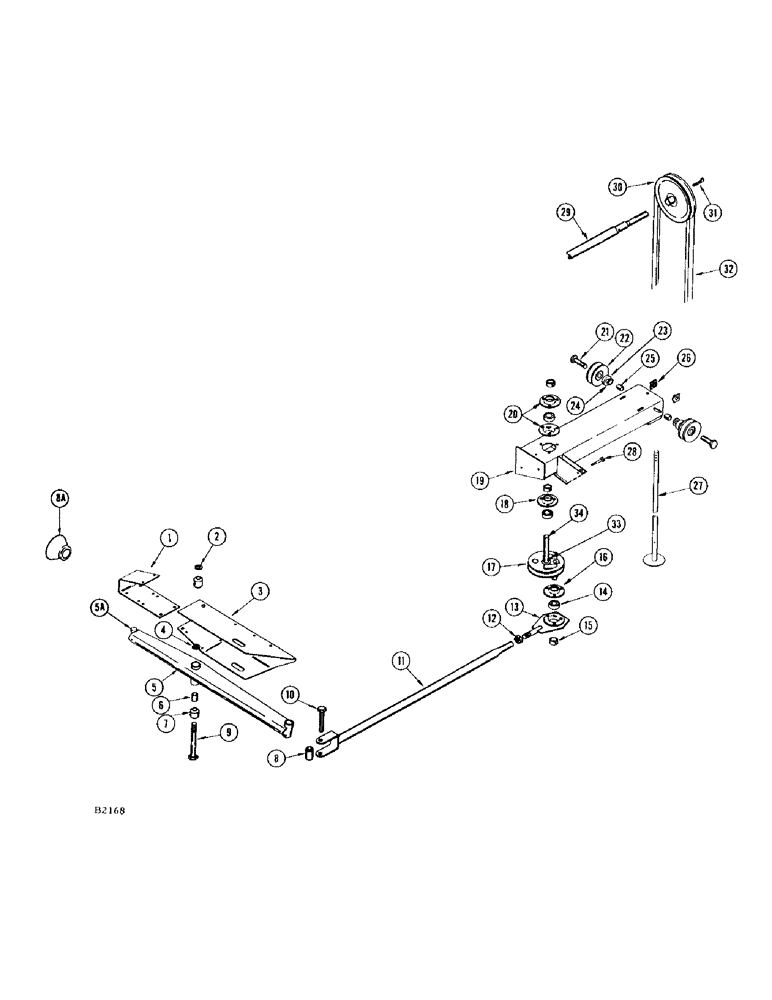

Запчасти Case IH 460 (018) - SICKLE DRIVE (58) - ATTACHMENTS/HEADERS

1

F17759

REINFORCEMENT - L.H. divider shoe

1шт.

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, , Nut (25-105), L.W. (92-5) Short NK, 5/16"-18 x 1", G2

2шт.

14-614

SCREW,Hex, 3/8" - 24 x 7/8", Gr 5

BOLT - 3/8" x 7/8" N.F. hex.; nut (25-116) L.W. (92-6)

2шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

Nut (25-116) L.W. (92-6) Hex, 3/8"-24 x 3/4", G5, Full Thd

2шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex.; nut (25-116) L.W. (92-6)

4шт.

2

95-14

WASHER,7/8"

FLATWASHER - I.D. 7/8"

2шт.

3

F92660

PLATE - support (Replaces F82512 when stocks exhausted)

1шт.

F82512

PLATE - support (Replaced by F92660 when stocks exhausted)

1шт.

4

O3885A

WASHER

- pivot bolt

2шт.

5

F89190

SWAYBAR - (#8361801 and after)

1шт.

F83677

SWAYBAR - (Before #8361801)

1шт.

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

- 5/16" x 1-1/2" N.F. hex.; wshr. (195-21) and dbl. nut (25-115)

2шт.

5a

F8370

BALL

1шт.

6

F18853

SPACER

- center

1шт.

7

F18852

RUBBER BUSHING

PIVOT - center

2шт.

8

F18851

BUSHING

- rear

1шт.

8a

A31186

BOOT

COVER - dust

1шт.

9

13-14112

BOLT,Hex, 7/8" - 9 x 7", Gr 5

- 7/8" x 7" N.C. hex (Grade 5)

1шт.

25-1014

NUT,7/8"-9, G5

; Jam nut (25-1414) 7/8"-9, G5

1шт.

10

14-1072

BOLT,Hex, 5/8" - 18 x 4-1/2", Gr 5

- 5/8" x 4-1/2" N.F. hext

1шт.

25-1110

NUT,5/8"-18, G5

- 5/8" N.C. hex.; L.W. (92-10)

1шт.

11

F83683

PITMAN - sickle

1шт.

12

25-1514

JAM NUT,Jam, 7/8"-14, G5

- 7/8" jam

1шт.

13

F82633

PLATE ASSY.

PLATE - bearing

1шт.

14

1443CKA

BALL BEARING

BEARING - drive shaft

3шт.

15

F62234

COLLAR

1шт.

16

F62225

FLANGE

TTE - bearing plate

1шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , Nut (25-106) L.W. (92-6) Short NK, 3/8"-16 x 1", G2

3шт.

17

F83681

SHEAVE AND PIN

1шт.

18

F19270

FLANGE

TTE - bearing

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex.; nut (25-116) L.W. (92-6)

3шт.

19

F85879

CHANNEL - support

1шт.

20

F62225

FLANGE

TTE - upper shaft bearing

2шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

Nut (25-116) L.W. (92-6) Hex, 3/8"-24 x 3/4", G5, Full Thd

3шт.

21

14-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5

2шт.

22

F81124

SHEAVE - idler

2шт.

23

F7293

BEARING

1шт.

24

195-41

WASHER,5/8"

2шт.

25

F22332

SPACER - idler sheave (Replaces VB1180 when stocks exh.)

2шт.

VB1180

SPACER - idler sheave (Replaced by F22332 when stocks exh.)

2шт.

26

F75313

LOCKNUT

2шт.

27

F85881

STAND - support

1шт.

28

14-536

CAPSCREW,Hex, 5/16" - 24 x 2 1/4", Gr 5

BOLT - 5/16" x 2-1/4" N.F. hex (For support stand)

1шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex; L.W. (92-5)

1шт.

29

F94384

JACKSHAFT - header drive (#8361801 and after)

1шт.

F83825

JACKSHAFT - header drive (Before #8361801)

1шт.

30

F81281

SHEAVE - sickle drive

1шт.

31

F17863

GIB KEY

1шт.

32

F20628

BELT - sickle drive

1шт.

33

O4746TF

KEY

1шт.

34

F18845

SHAFT

1шт.
