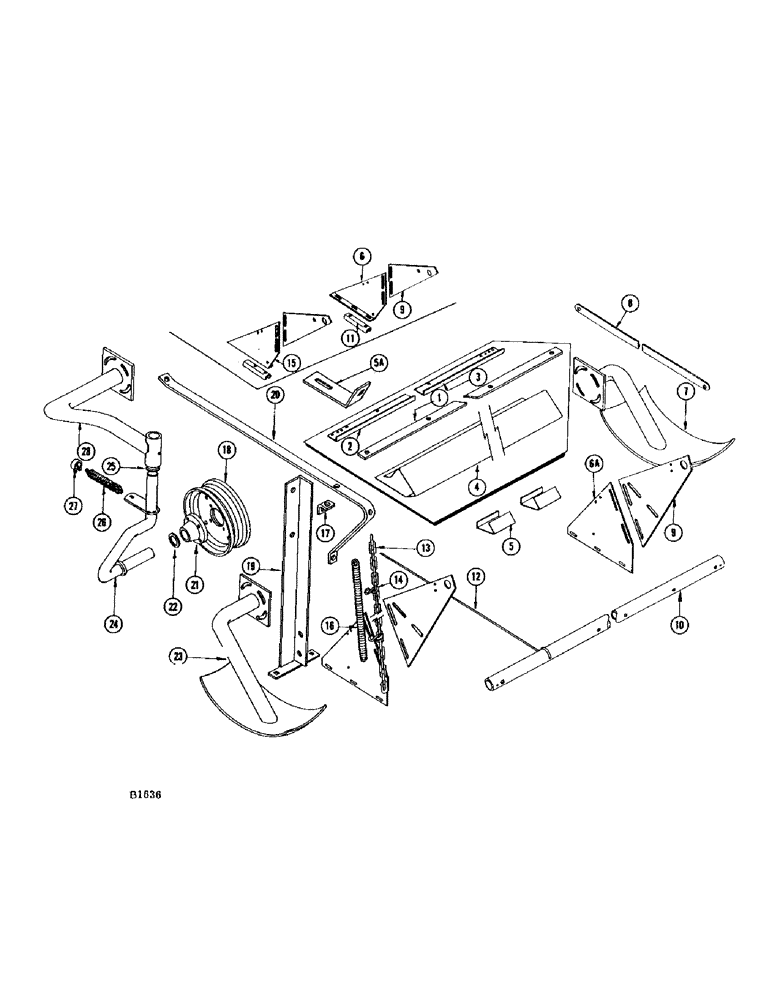

Запчасти Case IH 460 (014) - PICKUP SUPPORTS, 4 BELT (58) - ATTACHMENTS/HEADERS

1

F22274

WIPER - finger (Replaces F9643 when stocks exhausted)

2шт.

F9643

WIPER - finger (Replaced by F22274 when stocks exhausted)

2шт.

14-410

SCREW,Hex, 1/4" - 28 x 5/8", Gr 5

BOLT - 1/4" x 5/8" N.F. hex.; nut (25-114)

10шт.

95-4

WASHER,1/4"

- flat, L.W. (92-4) 1/4"

10шт.

2

F14136

PLATE - filler (Replaces F10951 and F10952 when exhausted)

2шт.

F10952

PLATE - filler, R.H. (See note) (Replaced by F19136 when exh.)

1шт.

111-302

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G2

BOLT - 3/8" x 3/4" rhd. sq. nk.; nut (129-103) L.W. (192-21)

10шт.

3

F10951

PLATE - filler, L.H. (See note) (Replaced by F14136 when exh.)

1шт.

111-302

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G2

BOLT - 3/8" x 3/4" rhd. sq. nk.; nut (129-103) L.W. (192-21)

10шт.

4

F14816

SHIELD - sickle guard (Replaces F9642 when stocks exh.)

2шт.

F9642

SHIELD - sickle guard (Replaced by F14816 when stocks exh.)

2шт.

5

F12150

SUPPORT - sickle guard shield F9642 (Replaced by F14802 when stocks exhausted)

4шт.

5a

F14802

CLIP - sickle guard shield (Replaces F12150 when stocks exhausted)

4шт.

6

F16731

BRACKET - L.H. lower windguard support (Replaced by F9631)

1шт.

6a

F9631

BRACKET - lower, windguard support (Replaces F16731 and F17676 when stocks are exhausted)

2шт.

114-102

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

Nut 9129-122) L.W. (192-20) Hex, 5/16"-24 x 3/4", G5, Full Thd

3шт.

195-103

WASHER,5/16"

- 5/16"

5шт.

7

F77372

RUNNER - L.H.

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.; L.W. (92-6) fl. wshr. (95-6)

4шт.

8

F12551

BRACE - L.H. mounting angle

1шт.

F12550

BRACE - R.H. mounting angle

1шт.

9

F19981

SUPPORT - upper, windguard

2шт.

114-304

BOLT,Hex, 7/16" - 20 x 2-1/4", Gr 5

Hex, 7/16"-20 x 2 1/4", G5, Dbl. nut (129-124)

2шт.

114-102

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

Dbl. nut (129-129) Hex, 5/16"-24 x 3/4", G5, Full Thd

4шт.

195-103

WASHER,5/16"

- 5/8"

8шт.

10

F9638

PIPE - windguard (Replaces F17671 when stocks exhausted)

1шт.

F17671

PIPE - windguard (Replaced by F9638 when stocks exhausted)

1шт.

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

2шт.

113-321

BOLT,Hex, 7/16" - 14 x 4", Gr 5

2шт.

230-4117

LOCK NUT,7/16"-14, GA

LOCKNUT - 7/16" N.C. Gripco jam

4шт.

11

F17680

REINFORCEMENT - Use only with F16731 and F17676

2шт.

12

F9639

TINE - windguard

15шт.

13

F84972

CHAIN (AG)

CHAIN - support (Replaces F83797 when stocks exhausted)

2шт.

F83797

CHAIN (AG)

CHAIN - support (Replaced by F84972 when stocks exhausted)

2шт.

14

F20641

"S" HOOK

4шт.

15

F17676

BRACKET - R.H. lower windguard support (Replaced by F9631)

1шт.

114-102

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

Nut (129-122) L.W. (192-20) Hex, 5/16"-24 x 3/4", G5, Full Thd

3шт.

195-103

WASHER,5/16"

- 5/16"

5шт.

114-104

BOLT,Hex, 5/16" - 24 x 1", Gr 5

- 5/16" x 1" N.F. hex.; nut (129-122) L.W. (192-20)

2шт.

195-103

WASHER,5/16"

- 5/16"

2шт.

16

F22285

SPRING - For supporting arms (Replaces F12558 when exh.)

2шт.

F12558

SPRING - For supporting arms (Replaced by F22285 when exh.)

2шт.

17

F17683

CLIP - mounting angle support

2шт.

114-102

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

Nut (129-102) Hex, 5/16"-24 x 3/4", G5, Full Thd

4шт.

18

F11478

WHEEL - caster (2) disc halves for 12 x 3.50 semi-pneumatic tire

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" str., grease

2шт.

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, , Nut (25-115) L.W. (92-5) Hex, 5/16"-24 x 5/8", G5, Full Thd

8шт.

19

F86662

ANGLE - R.H. mounting

1шт.

195-104

WASHER,3/8"

- 3/8"

3шт.

114-209

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

- 3/8" x 3/4" N.F. hex.; nut (129-123) L.W. (192-21)

1шт.

114-201

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5, Full Thd

- 3/8" x 1-1/4" N.F. hex.; nut (129-123) L.W. (192-21)

3шт.

114-301

BOLT,Hex, 7/16" - 20 x 1", Gr 5, Full Thd

Nut (129-124), L.W. (192-22) Hex, 7/16"-20 x 1", G5, Full Thd

2шт.

F86661

ANGLE - L.H. mounting

1шт.

114-201

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5, Full Thd

- 3/8" x 1-1/4" N.F. hex.; wshr. (195-104)

3шт.

129-123

NUT,3/8"-24, G5

; L.W. (192-21) 3/8"-24, G5

3шт.

114-301

BOLT,Hex, 7/16" - 20 x 1", Gr 5, Full Thd

Nut (129-124), L.W. (192-22) Hex, 7/16"-20 x 1", G5, Full Thd

3шт.

20

F17679

SUPPORT - mounting angle

2шт.

21

F1355

HUB - caster wheel

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" str., grease

2шт.

14-514

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

Nut (25-115) L.W. (92-5) Hex, 5/16"-24 x 7/8", G5, Full Thd

8шт.

22

A28764

WASHER - (1-3/4" O.D. x 1-1/32" I.D. #16 ga.) axle

6шт.

23

F77373

RUNNER - R.H.

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.; L.W. (92-6) wshr. (95-6)

4шт.

24

F86973

AXLE - caster wheel

2шт.

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

4шт.

25

B18275

WASHER

- (1-1/2" O.D. x 1-1/32" I.D. #12 ga.) axle

4шт.

26

O2818BF

SPRING

2шт.

27

F12970

CLAMP

2шт.

28

F78892

ARM - R.H. support, caster wheel

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg

1шт.

F78891

ARM - L.H. support, caster wheel

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg

1шт.

114-301

BOLT,Hex, 7/16" - 20 x 1", Gr 5, Full Thd

Nut (129-124), L.W. (192-22) Hex, 7/16"-20 x 1", G5, Full Thd

2шт.
