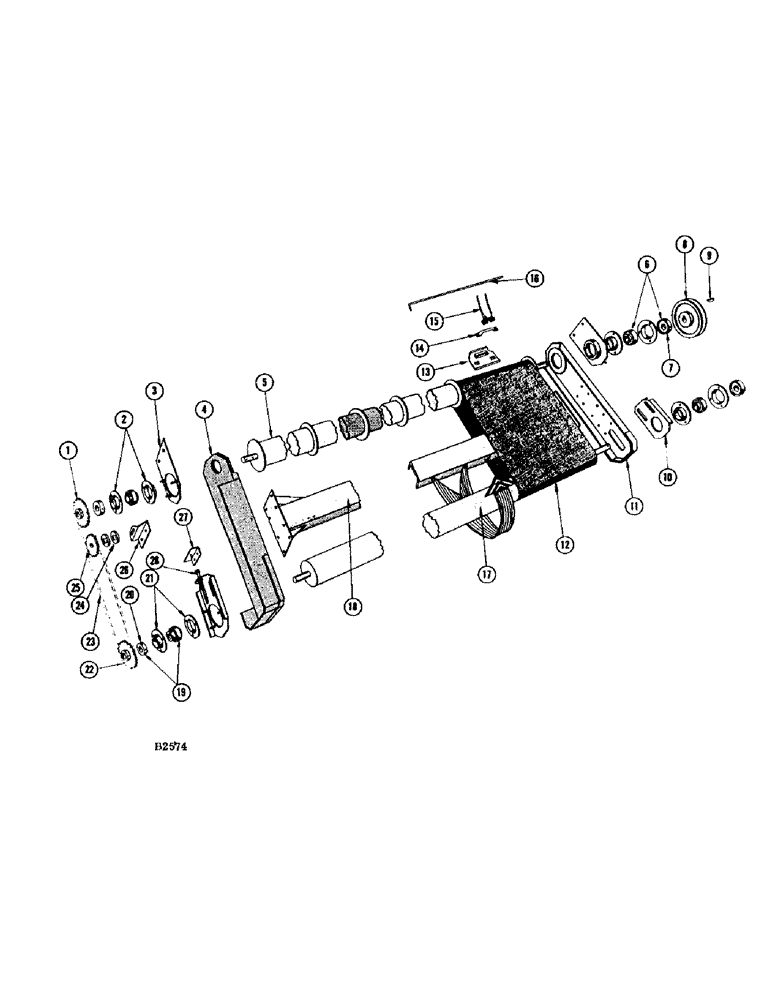

Запчасти Case IH 460 (013A) - PICKUP CONVEYOR, 5 BELT (58) - ATTACHMENTS/HEADERS

1

F77273

SPROCKET - (10T) rear conveyor roller, driven (R.H. end)

1шт.

135-78

PIN - 1/4" x 1-3/4" Drive-Loc type "A"

1шт.

2

B18282

FLANGE

- rear conveyor roller bearing

4шт.

3

F77175

BRACKET - bearing, For rear roller

2шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.; L.W. (92-5)

6шт.

114-301

BOLT,Hex, 7/16" - 20 x 1", Gr 5, Full Thd

Nut (129-124) Hex, 7/16"-20 x 1", G5, Full Thd

4шт.

4

F87793

SHEET - end, R.H.

1шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.; L.W. (92-5)

3шт.

5

F84964

ROLLER - rear

1шт.

6

3074CSA

BALL BEARING

- rear conveyor roller shaft

2шт.

7

F62108

COLLAR

1шт.

8

F81889

SHEAVE - rear roller drive, driven (L.H. end)

1шт.

135-360

PULLEY

PIN - 1/4" x 1-3/4" Drive-Loc type "A"

1шт.

9

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

Ref. 8 sheave to ref. 5 roller #A, 1/4" x 7/8", HT

1шт.

10

F77369

SCREW

PLATE - bearing, front roller adjusting

2шт.

25-115

NUT,5/16"-24, G5

- 5/16" N.C. hex; L.W. (92-5) wshr. (95-5)

6шт.

11

F77368

SHEET - end, L.H.

1шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.; L.W. (92-5)

3шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex; L.W. (9-25) fl. wshr. (95-5)

4шт.

12

F91853

BELT, CONVEYOR 57.13" L, (42 fingers), See F84968 57.13" L

5шт.

13

F10861

CLIP - hold down, spring finger

42шт.

121-6

BOLT - 1/4" x 3/4" slotted elevator

84шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, L.W. (192-19)

84шт.

14

F15245

RETAINER - spring finger

42шт.

15

F15243

SPRING

FINGER - spring

42шт.

F91854

LACING SET - (Not shown)

2шт.

16

F22395

PIN - belt lacing

5шт.

12

F84968

BELT - conveyor (36 finger) See F91853 When replacing one F84968, Use F84968. When replacing all five F84968, Use five F91853.

5шт.

13

F10861

CLIP - hold down, spring finger

36шт.

121-5

BOLT

- 1/4" x 3/4" flat hd. ctsk.; nut (25-104), L.W. (92-4)

72шт.

14

F15245

RETAINER - spring finger

36шт.

15

F15243

SPRING

FINGER - spring

36шт.

F78466

LACING SET - (Not shown)

1шт.

16

F21401

PIN - belt lacing

4шт.

17

F84961

ROLLER - front

1шт.

18

F87810

CHANNEL - torque, cross brace

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Nut (25-115) L.W. (92-5) Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- 5/16" x 1" N.F. hex.; nut (25-115) L.W. (92-5)

2шт.

19

3074CSA

BALL BEARING

- front conveyor roller shaft

2шт.

20

F62108

COLLAR

1шт.

21

B18282

FLANGE

- front conveyor drive bearing

4шт.

22

F77273

SPROCKET - (10T) front conveyor roller drive (R.H. end)

1шт.

23

F8655

X

CHAIN - conveyor drive (See page 4-NSS)

1шт.

24

O2287CS

WASHER - tightener bracket bolt (111-601)

2шт.

25

F8659

SPROCKET - (11T) conveyor chain tightener

1шт.

26

F8658

BRACKET - tightener, conveyor drive chain

1шт.

11-1032

X,Short NK, 5/8"-11 x 2", G2

BOLT - 5/8" x 2" rhd. sq. nk.; nut (25-1010) L.W. (92-10)

1шт.

27

F77596

ANGLE - adjusting, For adjusting screw

2шт.

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- 5/16" x 1" N.F. hex.; nut (25-115) L.W. (92-5)

4шт.

28

F9423

SCREW - adjusting, For Ref. 10 bearing plate

2шт.
