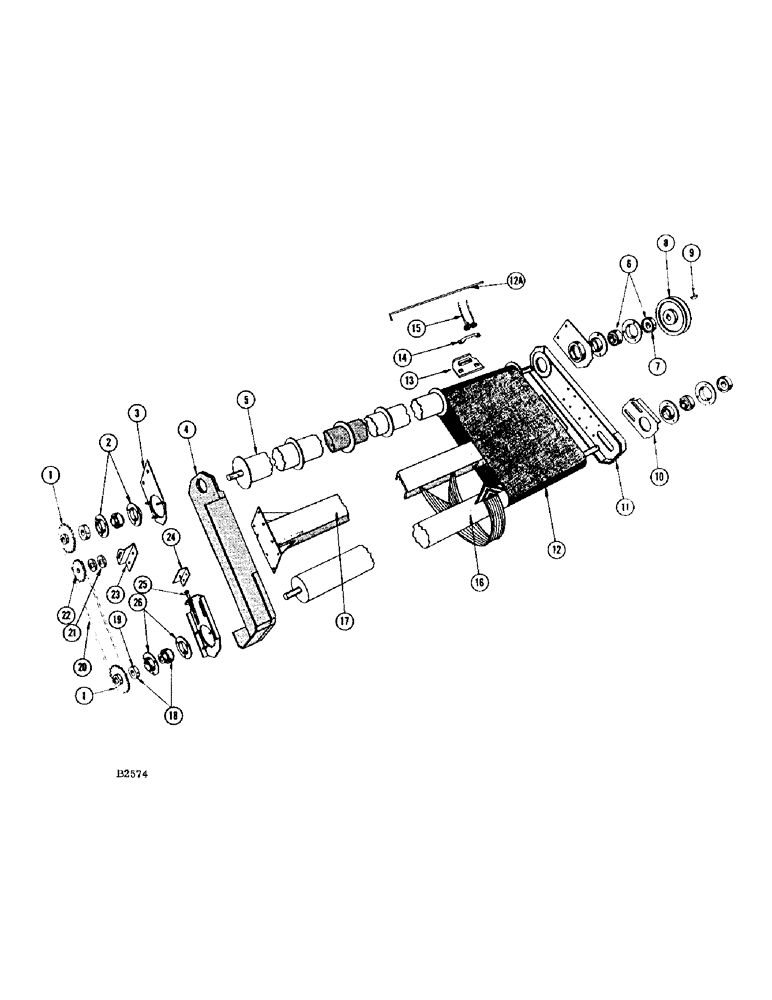

Запчасти Case IH 460 (012) - PICKUP CONVEYOR, 4 BELT (58) - ATTACHMENTS/HEADERS

1

F77273

SPROCKET - roller drive (10T) front and rear, R.H. end

2шт.

135-78

PIN - 1/4" x 1-3/4" Drive-Loc type "A"

2шт.

2

B18282

FLANGE

TTE - For 3074CSA

4шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.; L.W. (92-5)

6шт.

3

F77175

BRACKET - bearing, For rear conveyor tube

2шт.

4

F87793

SHEET - end, R.H. (Replaces F82679 when stocks exhausted)

1шт.

F82679

SHEET - R.H. end (Replaced by F87793 when stocks exhausted)

1шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.; L.W. (92-5)

6шт.

114-301

BOLT,Hex, 7/16" - 20 x 1", Gr 5, Full Thd

- 5/16" x 1" N.F. hex.; L.W. (129-124)

4шт.

5

F77171

ROLLER - rear, conveyor

1шт.

6

3074CSA

BALL BEARING

- rear roller shaft

2шт.

7

F62108

COLLAR

1шт.

8

F81889

SHEAVE - (8" O.D.) rear roller drive, driven (L.H. end)

1шт.

135-360

PULLEY

PIN - 1/4" x 3/4" Drive-Loc type "A"

1шт.

9

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

PLATE - bearing, front adjusting

2шт.

25-115

NUT,5/16"-24, G5

- 5/16" N.C. hex; L.W. (92-5) fl. wshr. (95-5)

6шт.

11

F77368

SHEET - L.H. end (Replaces F82678 when stocks exhausted)

1шт.

F82678

SHEET - L.H. end (Replaced by F77368 when stocks exhausted)

1шт.

12

F91853

BELT, CONVEYOR 57.13" L, (42 fingers), See F79158 57.13" L

4шт.

12a

F22395

PIN - belt lacing

4шт.

13

F10861

CLIP - hold down, spring finger

42шт.

121-6

BOLT - 1/4" x 3/4" slotted

84шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, L.W. (192-19)

84шт.

14

F15245

RETAINER - spring finger

42шт.

15

F15243

SPRING

FINGER - spring

42шт.

F91854

LACING SET - (Not shown)

2шт.

12

F79158

CONVEYOR BELT

BELT, CONVEYOR, (36 fingers) See F91853. When replacing one F79158, use F79158. When replacing all four F79158, use four F91853.

4шт.

F78466

SET - lacing, For F79158 conveyor belt (Not shown)

1шт.

12a

F21401

PIN - belt lacing

1шт.

13

F10861

CLIP - hold down, spring finger (For conveyor)

36шт.

121-5

BOLT

- 1/4" x 3/4" N.C. flat ctsk, nut (25-104) and L.W. (92-4)

72шт.

14

F15245

RETAINER - spring finger (For conveyor)

36шт.

15

F15243

SPRING

FINGER - spring (For conveyor)

36шт.

16

F77269

ROLLER - front, conveyor

1шт.

17

F87811

TUBE - torque, cross brace (Replaces F81884 when stocks exhausted)

1шт.

F81884

TUBE - torque, cross brace (Replaced by F87811 when stocks

1шт.

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- 5/16" x 1" N.F. hex.; nut (25-115) L.W. (92-5)

2шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Nut (25-115) L.W. (92-5) Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

111-354

BOLT

- 3/8" x 1-1/4" rhd. sq. nk.; nut (129-123)

8шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , and fl. wshr. (195-104) 3/8"

8шт.

18

3074CSA

BALL BEARING

- front conveyor roller shaft

2шт.

19

F62108

COLLAR

1шт.

20

F8655

X

CHAIN - lower roller drive (See chain page)

1шт.

21

O2287CS

WASHER - idler bolt (111-601) 1-5/16" O.D. x 21/32" sq. hole

2шт.

22

F8659

SPROCKET - idler (11T) conveyor chain tightener

1шт.

23

F8658

BRACKET - idler

1шт.

111-601

CARRIAGE BOLT,Short NK, 5/8"-11 x 2", G2

BOLT - 5/8" x 2" rhd. sq. nk.; nut (129-107)

1шт.

24

F77596

ANGLE - adjusting, For adjusting screw

2шт.

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- 5/16" x 1" N.F. hex.; nut (25-115) L.W. (92-5)

4шт.

25

F9423

SCREW - adjusting, For bearing plate

2шт.

26

B18282

FLANGE

TTE - for 3074CSA bearing

4шт.
