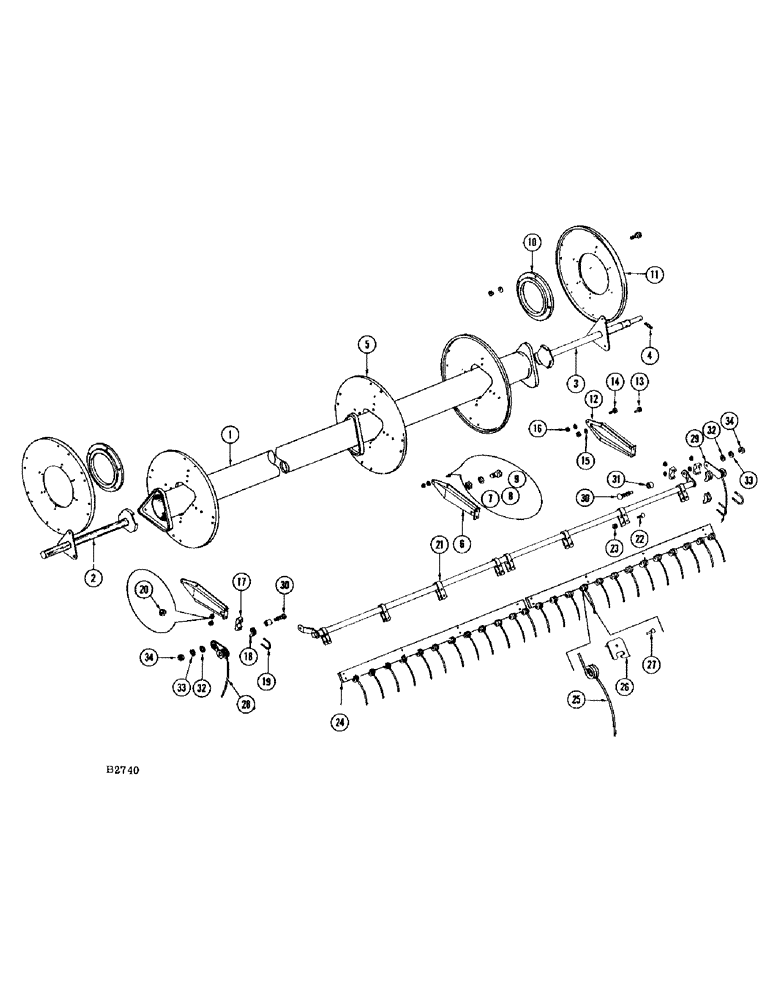

Запчасти Case IH 460 (011A) - HART-CARTER PICKUP REEL (58) - ATTACHMENTS/HEADERS

1

F94135

SHAFT - reel, 10 ft. header

1шт.

F94139

SHAFT - reel, 12 ft. header

1шт.

2

F94168

SHAFT - driven end

1шт.

3

F94169

SHAFT - drive end

1шт.

4

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

1шт.

5

F53431

PLATE - reel arms, 3-10 ft. and 12 ft.

1шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

12-616

BOLT

- 3/8" x 1" N.c. rhd. sq. nk.

6шт.

195-25

WASHER,3/8"

- flat 3/8"

6шт.

92-6

LOCK WASHER,3/8"

6шт.

131-6

LOCK NUT,3/8"-16, GC

LOCKNUT - 3/8" N.C.

6шт.

6

F94162

ARM

- reel, 18-10' and 12'

1шт.

7

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

8

92-5

LOCK WASHER,5/16"

1шт.

9

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

1шт.

10

F2186

OIL SEAL

RING - eccentric control

2шт.

11

F53436

PLATE - eccentric

2шт.

12

F94162

ARM

- eccentric

12шт.

13

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

24шт.

14

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

12шт.

15

92-5

LOCK WASHER,5/16"

36шт.

16

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

36шт.

17

F53434

BASE

- bearing, 30-10' and 12'

1шт.

18

F53433

CAP

BEARING - cap, 30-10' and 12'

1шт.

19

F53432

BOLT

"U" BOLT - bearing, 30-10' and 12'

1шт.

20

131-717

LOCK NUT

NUT - 1/4" N.C. hug lock

1шт.

21

F94138

SHAFT - bat, 10 ft., reel

6шт.

F94142

SHAFT - bat, 12 ft. reel

6шт.

22

11-422

CARRIAGE BOLT,Short NK, 1/4"-20 x 1 3/8", G2

BOLT - 1/4" x 1-3/8" rhd. sq. nk.

1шт.

23

131-2

NUT,1/4"-20, GB

LOCKNUT - 1/4" N.C. hex

1шт.

24

F94137

BAT

- 10 ft., reel

12шт.

F94141

BAT - 12 ft., reel

1шт.

25

F53349

TINE

- bat (72-10 ft., 84-12 ft.)

1шт.

26

F53348

CLIP - tine (72-10 ft., 84-12 ft.)

1шт.

27

B17161

RIVET - 3/16" x 1" oval hd. tubular (1 lb. pkg.)

1шт.

28

F94166

FINGER

- R.H., auxiliary

6шт.

29

F94164

FINGER

- L.H., auxiliary

6шт.

30

F53437

BOLT - shank, auxiliary finger

12шт.

31

F53440

SPACER - shank bolt

12шт.

32

195-29

WASHER,7/16"

- flat 7/16"

12шт.

33

92-8

LOCK WASHER,1/2"

12шт.

34

131-168

LOCK NUT,1/2"-20, GA

NUT - 1/2" N.F. Gripco lock

12шт.
