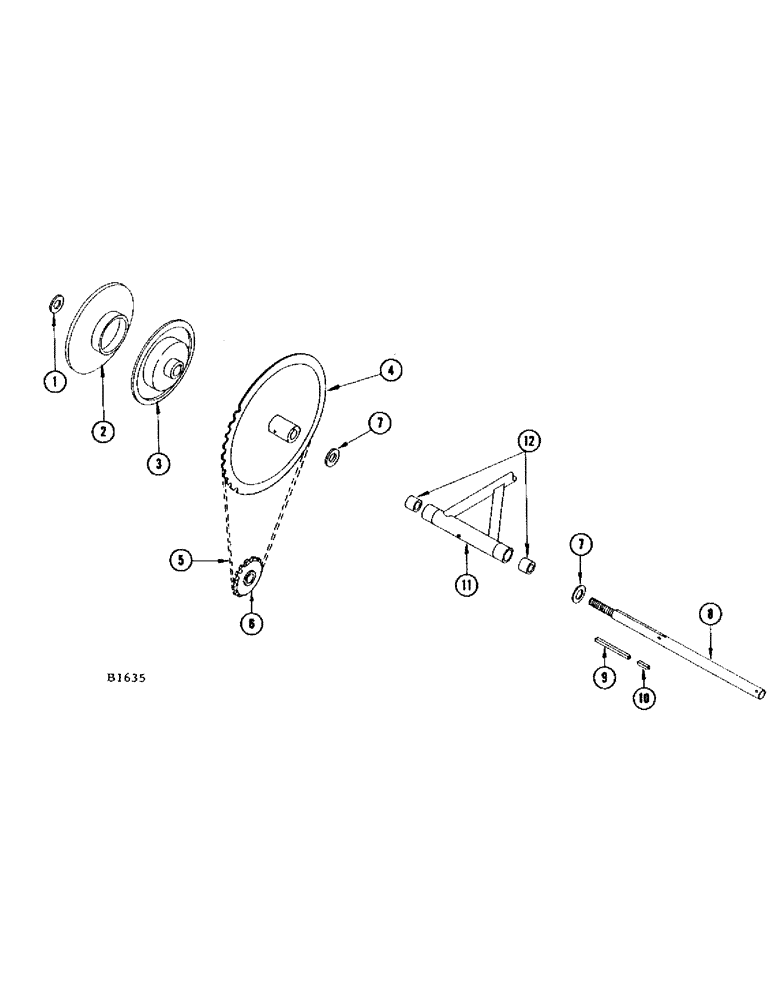

Запчасти Case IH 460 (010) - REEL DRIVE JACKSHAFT (58) - ATTACHMENTS/HEADERS

1

F20276

WASHER - (1-7/16" O.D. x 25/32" I.D. #10 ga.)

1шт.

2

F1572

SHEAVE - half (8.66 O.D.)

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8" str.

1шт.

3

F1313

SHEAVE

- half (8.66 O.D.)

1шт.

4

F81760

SPROCKET - drives reel jackshaft, driven (60T) - 19-31 RPM with (15T) drive sprocket and 28-45 RPM with (22T) drive sprocket

1шт.

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

1шт.

5

F20637

CHAIN - reel jackshaft drive (See chain page)

1шт.

F17924

X

CHAIN - reel jackshaft drive (See chain page)

1шт.

F17514

X

CHAIN - short extension, jackshaft drive (See chain page)

1шт.

6

F82898

SPROCKET ASSY.

SPROCKET - (15T) drives reel drive jackshaft - standard (Before #8361801)

1шт.

F92661

SPROCKET - (15T) drives reel drive jackshaft (#8361801 and after)

1шт.

F82850

DRIVEN SPROCKET

SPROCKET - (22T) drives reel drive jackshaft - special (Before #8361801)

1шт.

F92664

DRIVEN SPROCKET

SPROCKET - (22T) drives reel drive jackshaft (#8361801 and after)

1шт.

F82851

SPROCKET ASSY.

SPROCKET - (27T) drives jackshaft (Pickup drive) (Before # 8361801)

1шт.

F92665

DRIVEN SPROCKET

SPROCKET - (22T) drives jackshaft (Pickup drive) (#8361801 and after)

1шт.

7

F62073

WASHER

- jackshaft

2шт.

8

F15845

JACKSHAFT - reel drive

1шт.

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

1шт.

25-1512

JAM NUT,Jam, 3/4"-10, G5

- 3/4" N.F. hex jam

2шт.

9

F8896

KEY - drive sheaves

1шт.

10

O1045B

KEY

- drive sprocket

1шт.

11

F82527

ARM - reel support, L.H.

1шт.

12

A31082

BUSHING

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.
