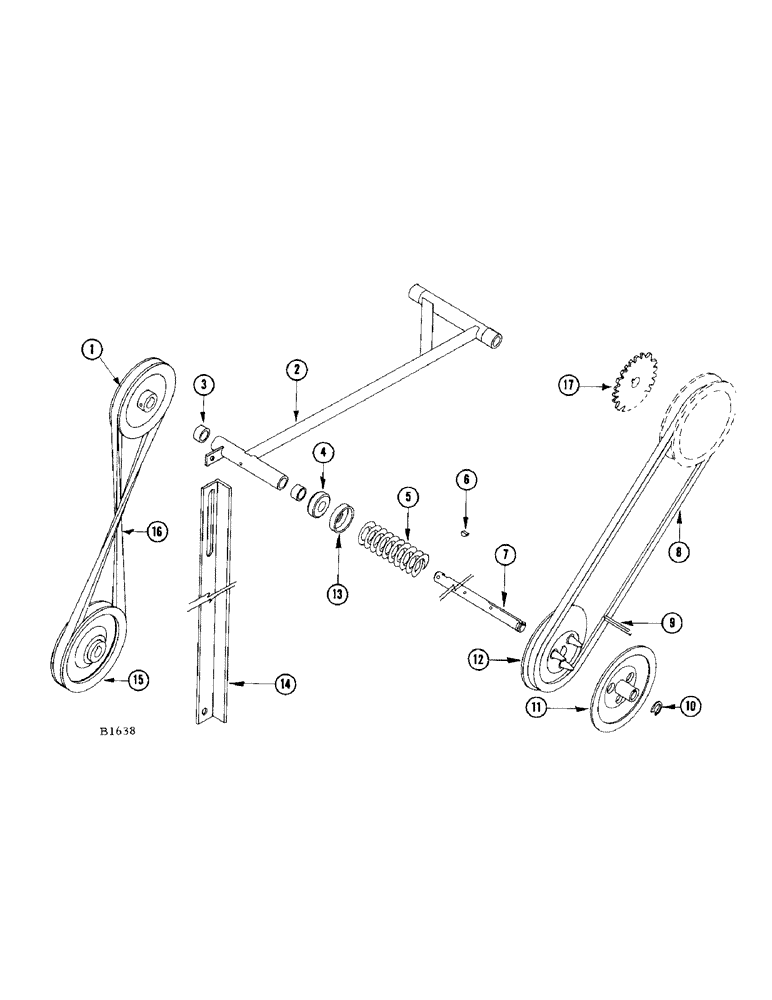

Запчасти Case IH 460 (009A) - PICKUP DRIVE JACKSHAFT, 4 AND 5 BELT (58) - ATTACHMENTS/HEADERS

1

F77186

SHEAVE

1шт.

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

1шт.

2

F81886

SUPPORT - (10 ft. header - 4 belt)

1шт.

F84976

SUPPORT - (12 ft. header - 5 belt)

1шт.

3

A31082

BUSHING

4шт.

4

O1664FH

COLLAR - jackshaft

1шт.

132-102

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

1шт.

5

F9021

VALVE SPRING

SPRING - variable drive sheaves

1шт.

6

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

For drive sheave #A, 1/4" x 7/8"

1шт.

7

F17675

JACKSHAFT - pickup drive (10 ft. header)

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - 1/8" str., grease

2шт.

F22289

JACKSHAFT - pickup drive (12' header)

1шт.

129-1

FITTING

- grease 1/8" str.

2шт.

8

F16745

V-BELT

BELT - drive

1шт.

9

F8896

KEY -, Serial Range: sheaves-jackshaft

1шт.

10

A26949

RING, SNAP

SNAP RING

1шт.

11

F1313

SHEAVE

HALF - driven

1шт.

12

F1572

SHEAVE HALF - driven

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" str., grease

1шт.

13

F16078

WASHER - cup

1шт.

14

F17678

BRACKET - tightener

1шт.

15

F81889

SHEAVE - rear roller drive, driven (8" O.D.) L.H. end only

1шт.

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

1шт.

135-360

PULLEY

PIN - 1/4" x 3/4" Driv-Loc type "A"

1шт.

16

F16744

V-BELT

BELT - rear roller drive

1шт.

17

F81888

SPROCKET - (22T) reel drive jackshaft

1шт.

132-126

COTTER PIN,7/32" x 2"

Pin, Split (Cotter), 7/32" x 2"

1шт.
