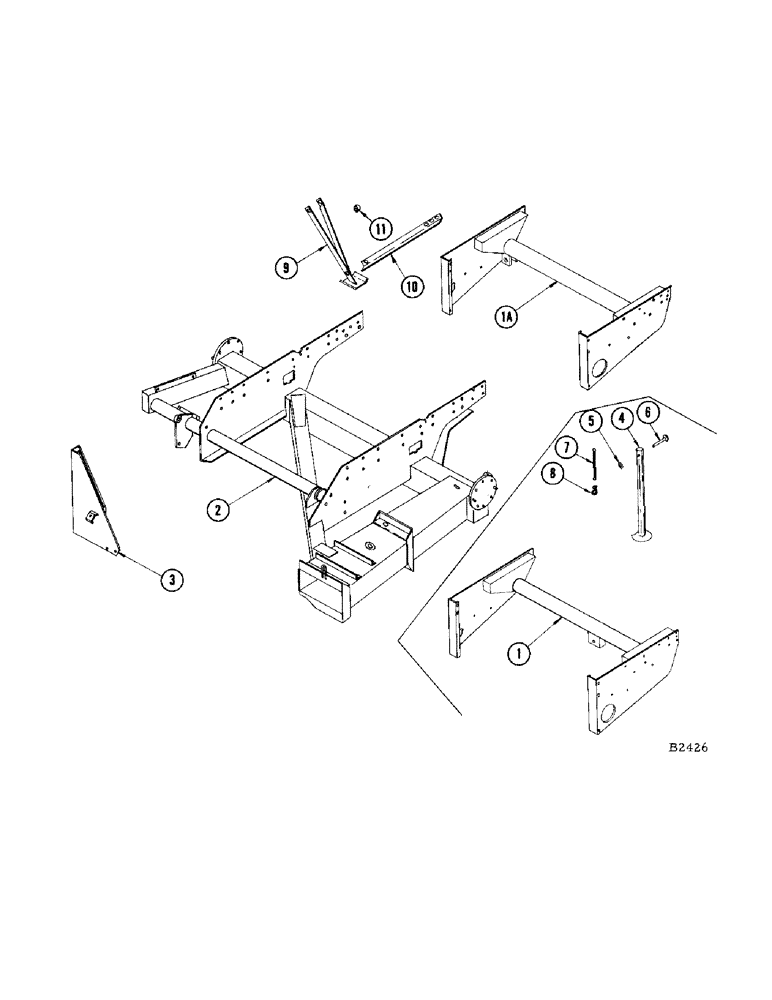

Запчасти Case IH 460 (100[1]) - MAIN FRAME AND TORQUE TUBE (39) - FRAMES AND BALLASTING

1

F80830

TUBE - torque (Before #8361801)

1шт.

1a

F89193

TUBE - torque (#8361801 and after)

1шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

Nut (25-116) L.W. (92-6) Hex, 3/8"-24 x 3/4", G5, Full Thd

6шт.

14-644

SCREW,Hex, 3/8" - 24 x 2 3/4", Gr 5

BOLT - 3/8" x 2-3/4" N.F. hex.; nut (25-116) L.W. (92-6)

8шт.

2

F85762

FRAME - main

1шт.

PIN - groove 1/2" x 1-1/2"

4шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

Nut (25-116) L.W. (92-6) Hex, 3/8"-24 x 3/4", G5, Full Thd

1шт.

14-716

BOLT,Hex, 7/16" - 20 x 1", Gr 5

- 7/16" x 1" N.F. hex.l nut (25-117) L.W. (92-7)

10шт.

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

- 1/2" x 1" N.F. hex.; nut (25-118) L.W. (92-8)

8шт.

3

F85826

SUPPORT - R.H. pivot

1шт.

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

- 1/2" x 1" N.F. hex.; nut (25-118) L.W. (92-8)

4шт.

4

F83743

STAND - rear support (Before #8361801)

1шт.

5

B18080

WASHER

- (Use with F83743)

1шт.

6

O3657HT

PIN - (Use with F83743)

1шт.

132-93

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), (Use with F83743) 3/16" x 1 1/4"

1шт.

7

O2678N

SPRING

- (Use with F83743)

1шт.

8

O5481HT

HOOK - "S" (Use with F83743)

1шт.

9

F89195

STAND - rear leg brace (#8361801 and after)

1шт.

114-302

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5, Full Thd

- 7/16" x 1-1/4" N.F. hex.; nut (129-124) L.W. (192-22)

1шт.

10

F40554

LAMP

BRACE - leg, R.H.

1шт.

11

F40555

BUSHING

3шт.

114-400

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

Nut (129-125) L.W. (192-23) and ft. washer (195-532) Hex, 1/2"-20 x 1 1/4", G5, Full Thd

3шт.
