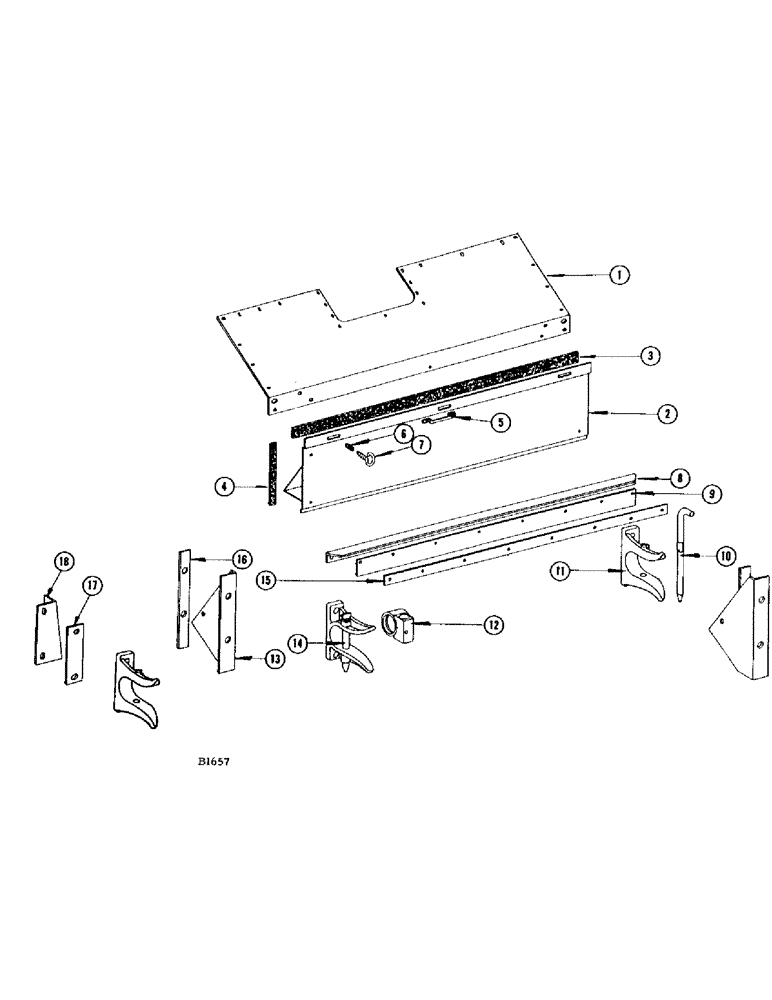

Запчасти Case IH 460 (042) - FRONT DECK, CONCAVE ACCESS SECTION, HEADER PIVOT BRACKETS (39) - FRAMES AND BALLASTING

1

F18479

DECK - front

1шт.

75-58

BOLT (MACHINE),5/16" x 1/2"

SCREW - 5/16" x 1/2" N.C. rhd. mach.; nut (25-105) L.W. (92-5)

2шт.

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8" x 1-1/4" N.F. hex

2шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

4шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

Nut (25-116) L.W. (92-6) Hex, 3/8"-24 x 3/4", G5, Full Thd

3шт.

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

- 1/2" x 1" N.F. hex.; nut (25-118) L.W. (92-8)

2шт.

2

F84714

DOOR - cylinder (Rub bar cylinder) Replaces F83090 when stocks exhausted, concave access section

1шт.

F84716

DOOR - cylinder (Spike tooth cylinder) Replaces F83315 when stocks are exhausted, concave access section

1шт.

49-35

RIVET - 3/16" x 5/16" W.B. hd., concave access section

4шт.

3

F22002

SEAL

- top, For cylinder door, concave access section

1шт.

4

F19317

SEAL - side, For cylinder door, concave access section

2шт.

5

228-3

HANDLE - Stanley, concave access section

1шт.

49-36

RIVET,Truss Hd, 3/16" x 3/8"

- 3/16" x 3/8" W.B. hd., concave access section

2шт.

2

F83090

DOOR - cylinder (Rub bar cylinder) Replaced by F84714 when stocks are exhausted, concave access section

1шт.

F83315

DOOR - cylinder (Spike tooth cylinder) Replaced by F84716 when stocks exhausted, concave access section

1шт.

49-35

RIVET - 3/16" x 5/16" W.B. hd., concave access section

4шт.

3

F19316

SEAL - top, For cylinder door, concave access section

1шт.

4

F19317

SEAL - side, For cylinder door, concave access section

2шт.

5

228-3

HANDLE - Stanley, concave access section

1шт.

49-36

RIVET,Truss Hd, 3/16" x 3/8"

- 3/16" x 3/8" W.B. hd., concave access section

2шт.

6

117EB

SPRING

- door latch, concave access section

3шт.

7

F19960

LATCH

BOLT - latch, concave access section

3шт.

25-104

NUT,1/4"-20, G5

Concave access section 1/4"-20, G5

6шт.

8

F16211

ANGLE - feeder spout, concave access section

1шт.

14-716

BOLT,Hex, 7/16" - 20 x 1", Gr 5

- 7/16" x 1" N.F. hex.; nut (25-117) L.W. (92-7), concave access section

2шт.

9

F16213

SEAL

- feeder spout angle, concave access section

1шт.

10

F17831

PIN - L.H. side, header pivot brackets

1шт.

11

F1105

PIVOT - header pivot brackets

3шт.

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

; Nut (25-1110) L.W. (92-10), header pivot brackets Hex, 5/8"-18 x 1 3/4", G5

6шт.

12

F83093

BEARING

- header pivot, header pivot brackets

3шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight), Header pivot brackets 1/4"-28 NPT x .54" lg

3шт.

13

F18748

PLATE - scuff, header pivot brackets

2шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

; Nut (25-114), L.W. (92-4), header pivot brackets Hex, 1/4"-28 x 1/2", G5, Full Thd

2шт.

14

F6266

PIN - R.H., header pivot brackets

2шт.

15

F16214

STRIP - backing, header pivot brackets

1шт.

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- 1/4" x 3/4" N.F. hex.; nut (25-114) L.W. (92-4), header pivot brackets

8шт.

16

F18745

SPACER, header pivot brackets

2шт.

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

; Nut (25-1110) L.W. (92-10), header pivot brackets Hex, 5/8"-18 x 1 3/4", G5

4шт.

17

F9858

SPACER - strap, header pivot brackets

2шт.

18

F41318

BRACKET - mounting, R.H. pivot, header pivot

1шт.

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

- 1/2" x 1-1/4" N.F. hex.; nut (25-108) L.W. (92-8), header pivot brackets

2шт.
