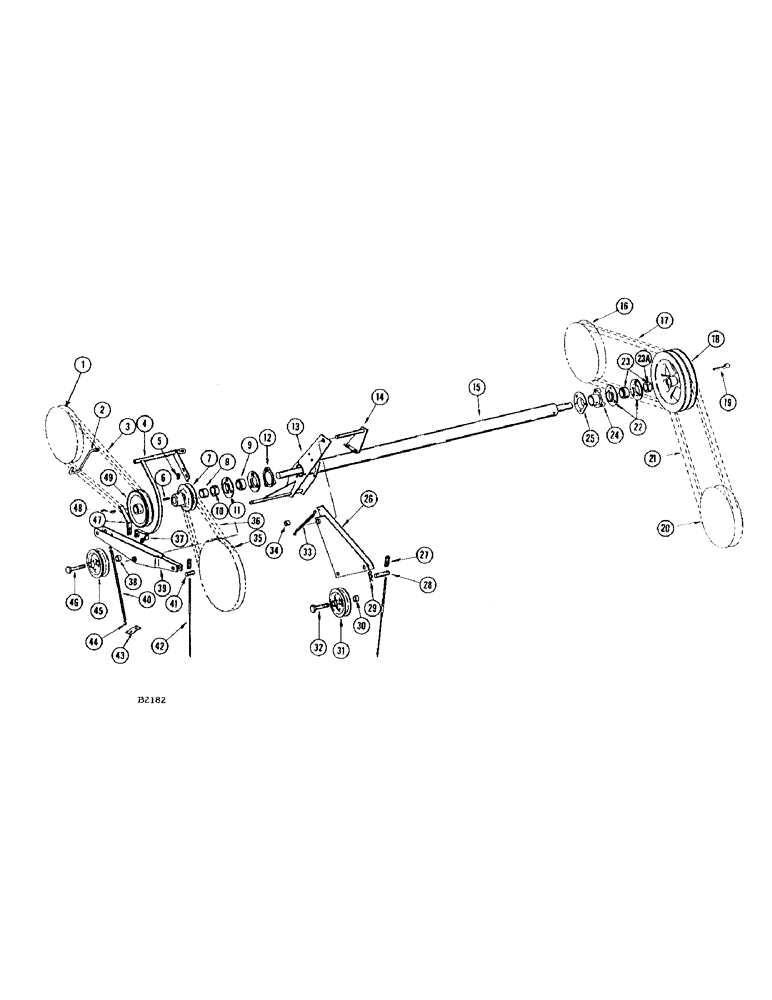

Запчасти Case IH 460 (112) - MAIN COMBINE DRIVE JACKSHAFT (14) - MAIN GEARBOX & DRIVE
№
Артикул
Название
Примечание
Количество
1
F81380
SHEAVE - grain bin drive, driven
1шт.
2
F20872
GUIDE - belt
1шт.
14-616
BOLT,Hex, 3/8" - 24 x 1", Gr 5
- 3/8" x 1" N.F. hex.; nut (25-116) L.W. (92-6)
1шт.
3
F20722
SCREW
BELT - grain bin drive
1шт.
4
F85427
GUIDE - belt
1шт.
14-412
BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd
- 1/4" x 3/4" N.F. hex.; nut (25-114) L.W. (92-4)
2шт.
14-616
BOLT,Hex, 3/8" - 24 x 1", Gr 5
- 3/8" x 1" N.F. hex.; nut (26-116) L.W. (92-6)
1шт.
5
85-616
SET SCREW,Sq Hd, 3/8"-16 x 1"
SCREW - cup point
1шт.
25-146
JAM NUT,Jam, 3/8"-16, G5
- 3/8" N.C. jam
1шт.
6
F20955
KEY - 5/16" square
1шт.
7
F1683
SHEAVE - header drive
1шт.
8
F20956
SPACER
1шт.
9
T18852
BALL BEARING
BEARING
1шт.
10
O4524B
COLLAR
1шт.
11
T17277
FLANGE
TTE
2шт.
12-624
BOLT - 3/8" x 1-1/2" rhd. sq. nk. and nut (25-106) L.W. (92-6)
3шт.
12
F1675
SPACER
1шт.
13
F83834
TUBE - jackshaft
1шт.
132-93
COTTER PIN,3/16" x 1 1/4"
Pin, Split (Cotter), 3/16" x 1 1/4"
1шт.
11-612
BOLT
- 3/8" x 3/4" rhd. sq. nk.; nut (25-106) L.W. (92-6)
3шт.
14
F83838
SHAFT - header clutch
1шт.
132-93
COTTER PIN,3/16" x 1 1/4"
Pin, Split (Cotter), 3/16" x 1 1/4"
1шт.
14-614
SCREW,Hex, 3/8" - 24 x 7/8", Gr 5
BOLT - 3/8" x 7/8" N.F. hex.; nut (25-116) L.W. (92-6)
2шт.
15
F20891
JACKSHAFT - main drive
1шт.
16
F85522
SHEAVE - beater
1шт.
17
F20741
SCREW
BELT - beater drive
1шт.
18
F1676
SHEAVE - main drive
1шт.
14-444
BOLT,Hex, 1/4" - 28 x 2-3/4", Gr 5
- 1/4" x 2-3/4" N.F. hex.; Gripco nut 9131-364)
1шт.
19
O30388HT
KEY
1шт.
20
F1540
SHEAVE - main drive
1шт.
21
F41177
BELT
- main drive
1шт.
22
T17277
FLANGE
TTE
2шт.
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
L.W. (92-6) Hex, 3/8"-16 x 1", G5, Full Thd
3шт.
23
T18852
BALL BEARING
BEARING
1шт.
23a
O4524B
COLLAR
1шт.
24
F1674
HOLDER - bearing
1шт.
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
Nut 925-106) Hex, 3/8"-16 x 1", G5, Full Thd
2шт.
25
F17425
SCREW
COLLAR - support
1шт.
11-612
BOLT
- 3/8" x 3/4" rhd. sq. nk.; nut (25-106) L.W. (92-6)
3шт.
26
F83839
ARM - header drive idler
1шт.
86636814
LUBE NIPPLE,1/4"-28 x .52" lg
FITTING - grease 1/4" str.
1шт.
27
V14857
HANDLE
SPRING - clutch
2шт.
28
F20730
SCREW
PIN - header idler
1шт.
132-50
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
1шт.
29
136-161
COTTER - hair pin
1шт.
30
V13384
SPACER
2шт.
31
F11626
BEARING
SHEAVE - header clutch
1шт.
32
14-1044
BOLT,Hex, 5/8" - 18 x 2-3/4", Gr 5
- 5/8" x 2-3/4" N.F. hex
1шт.
33
146EB
SPRING - belt tightener
1шт.
14-420
BOLT,Hex, 1/4" - 28 x 1-1/4", Gr 5
Nut (25-114) L.W. (92-4) Hex, 1/4"-28 x 1 1/4", G5
1шт.
95-4
WASHER,1/4"
- 1/4"
2шт.
34
VB1410
SPACER - main drive jackshaft
1шт.
35
F83685
SHEAVE - header, driven
1шт.
36
F20721
SCREW
BELT - header drive
1шт.
37
F20830
CLAMP - belt guide
1шт.
38
V13384
SPACER
2шт.
39
F83836
ARM - grain bin idler
1шт.
40
O2678N
SPRING
1шт.
41
F20726
SCREW
PIN - grain bin idler
1шт.
132-30
COTTER PIN,3/32" x 1 1/4"
Pin, Split (Cotter), 3/32" x 1 1/4"
2шт.
42
F20732
SCREW
CABLE - clutch
2шт.
129-122
NUT,5/16"-24, G5
Wshr. (195-521) 5/16"-24, G5
4шт.
43
F17918
BRACKET - locking (For spike tooth machines)
1шт.
44
O5481HT
HOOK
2шт.
45
F6474
PULLEY
SHEAVE - grain bin clutch
1шт.
46
14-1048
BOLT,Hex, 5/8" - 18 x 3", Gr 5
- 5/8" x 3" N.F. hex
1шт.
25-1110
NUT,5/8"-18, G5
- 5/8" N.F. hex.; L.W. (92-10)
1шт.
47
F20831
GUIDE - belt
1шт.
12-412
BOLT - 1/4" x 3/4" rhd. sq. nk.; nut (25-104) and L.W. (92-4)
2шт.
48
126-25
WOODRUFF KEY,#B, 5/16" x 1"
KEY - ("B" Woodruff)
1шт.
49
F83863
SHEAVE - grain bin drive
1шт.
132-159
COTTER PIN,1/4" x 3"
Pin, Split (Cotter), 1/4" x 3"
1шт.
34
VB1410
SPACER - main drive jackshaft
1шт.
Выбрано товаров: 74
