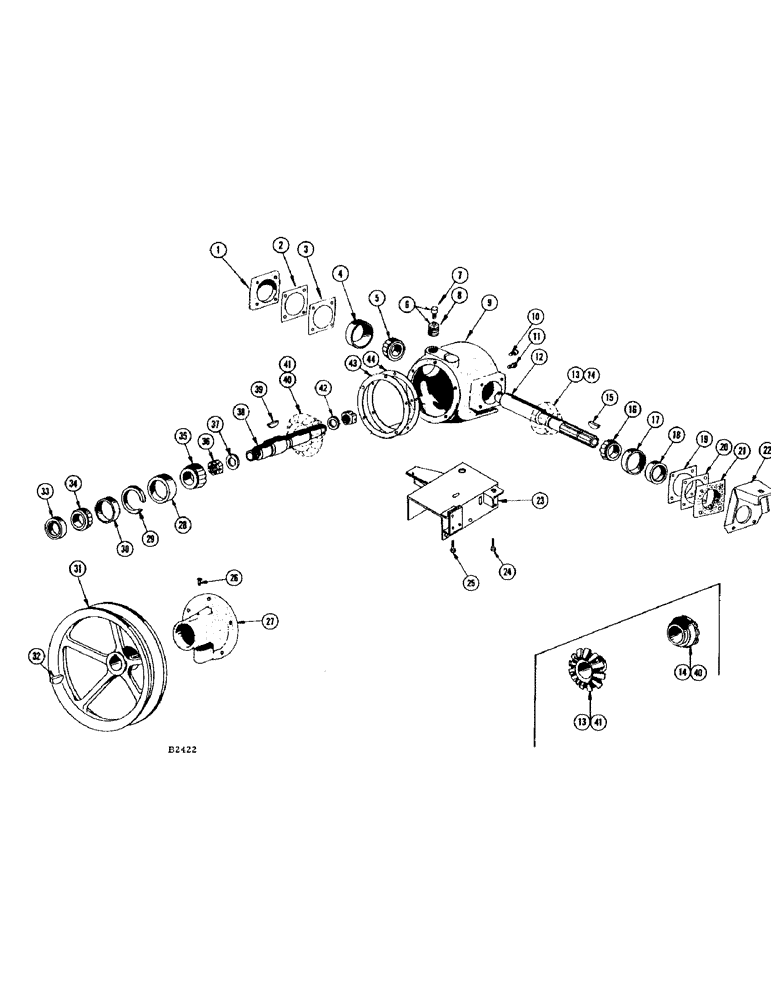

Запчасти Case IH 460 (108) - GEAR BOX (14) - MAIN GEARBOX & DRIVE

1

F62025

CAP - bearing, rear

1шт.

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

L.W. (92-5) Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

2

N3767

SHIM

1шт.

3

N3766

SHIM,.005" Thk

1шт.

4

A29977

BEARING CUP

CUP

1шт.

5

T20939

ROLLER BEARING,1.25" ID x 0.771"

CONE

1шт.

6

NSS

NOT SOLD SEPARAT

PLUG - filler

1шт.

7

O6500CH

VENT

1шт.

8

F40018

PLUG

1шт.

9

75BF

BOX - gear

1шт.

10

221-11

PLUG,Sq Hd, 1/8"-27

- pipe (1/8" PT)

1шт.

11

221-12

PLUG,Sq Hd, 1/4"-18

- pipe (1/4" PT)

1шт.

12

F41427

SHAFT - input

1шт.

13

F3506

PINION - (19T) input shaft (Used with Ref. 40 for 540 RPM)

1шт.

14

F3507

PINION - (14T) input shaft (Used with Ref. 41 for 1000 RPM)

1шт.

15

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Pinion to shaft #C, 5/16" x 1 1/8", HT

1шт.

16

A29976

ROLLER BEARING

CONE

1шт.

17

A29977

BEARING CUP

CUP

1шт.

18

O3868AB

OIL SEAL

SEAL - oil

1шт.

19

N3766

SHIM,.005" Thk

1шт.

20

N3767

SHIM

1шт.

21

F62026

CAP - bearing, front

1шт.

22

F20701

SCREW

BRACKET - PTO shield

1шт.

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

; L.W. (92-5) Hex, 5/16"-18 x 1 1/8", G5

4шт.

23

F85783

BRACKET - gear box mounting

1шт.

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

- 1/2" x 1" N.F. hex.; nut (25-118) L.W. (92-8)

5шт.

24

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

Gear box mounting Hex, 5/8"-18 x 1 3/4", G5

2шт.

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex.; L.W. (92-10)

2шт.

25

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

Bearing housing Hex, 5/8"-11 x 1 1/4", G5, Full Thd

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

O2743AB

WASHER - flat (For 13-1020 bolt)

1шт.

26

221-11

PLUG,Sq Hd, 1/8"-27

- pipe (1/8" PT)

1шт.

27

F85542

HOUSING - output shaft bearings

1шт.

28

F40618

CUP

1шт.

29

A29330

RING, SNAP

RING - snap

1шт.

30

F40619

BEARING CUP

CUP

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

L.W. (92-6) Hex, 3/8"-16 x 1", G5, Full Thd

5шт.

31

F1540

SHEAVE - drive

1шт.

32

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

1шт.

33

F40620

SEAL - oil

1шт.

34

F40617

CONE

1шт.

35

R20589

CONE

1шт.

36

B18305

NUT

- 1" hex. slotted

2шт.

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

37

O15761S

WASHER - (2-1/4" O.D. x 1-1/16" I.D. #12 ga.)

1шт.

38

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Pinion to shaft #C, 5/16" x 1 1/8", HT

1шт.

40

F3507

PINION - (14T) output shaft (Used with Ref. 13 for 540 RPM)

1шт.

41

F3506

PINION - (19T) output shaft (Used with Ref. 14 for 1000 RPM)

1шт.

42

F62073

WASHER

- (1-5/8" O.D. x 1-1/32" I.D. #16 ga.)

1шт.

43

N3769

SHIM

1шт.

44

N3768

SHIM

1шт.

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

1шт.
