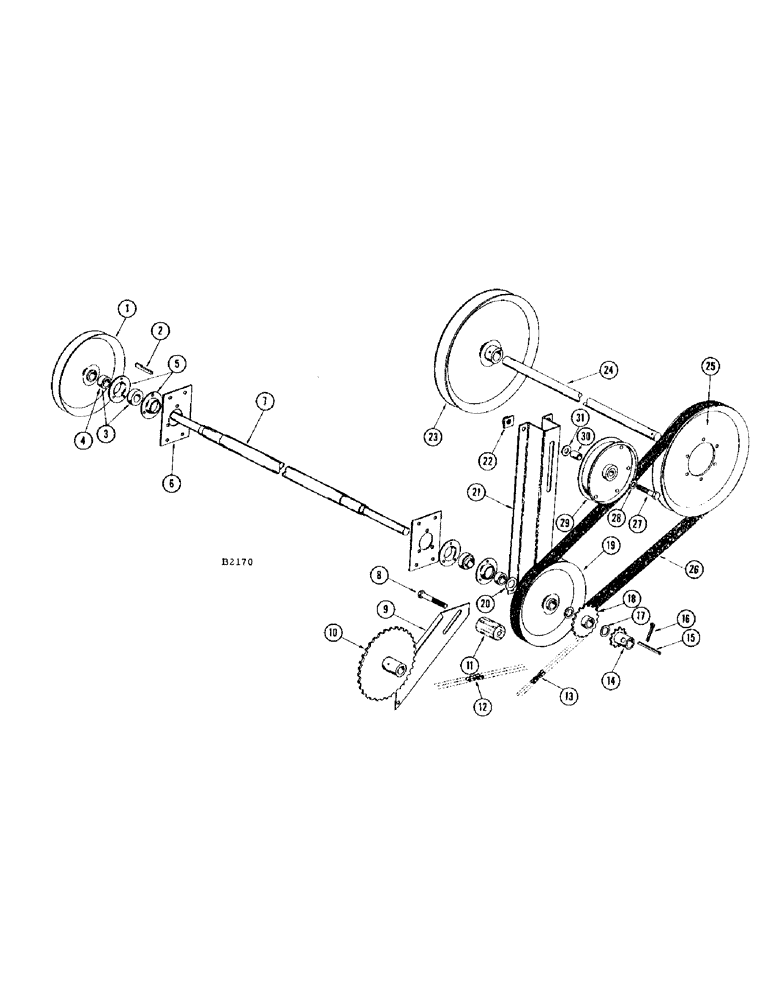

Запчасти Case IH 460 (036) - MAIN HEADER DRIVE SHAFT (14) - MAIN GEARBOX & DRIVE

1

F81281

SHEAVE

1шт.

2

F17863

KEY - gib 1/4" x 2-1/2"

1шт.

3

3074CSA

BALL BEARING

2шт.

4

F62108

COLLAR

1шт.

5

B18282

FLANGE

TTE

4шт.

6

F20632

PLATE - feeder spout bearing

2шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Nut (25-115) L.W. (92-5) Hex, 5/16"-24 x 3/4", G5, Full Thd

14шт.

7

F83825

JACKSHAFT - header drive (Before #8361801)

1шт.

F94384

JACKSHAFT - header drive (#8361801 and after)

1шт.

8

11-552

BOLT

- 5/16" x 3-1/4" rhd. sq. nk.

1шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.; L.W. (92-5) wshr. (95-5)

1шт.

9

F20635

BRACKET - idler, reel drive

1шт.

11-520

X

BOLT - 5/16" x 1" rhd. sq. nk.; nut (25-105) L.W. (92-5)

1шт.

95-5

WASHER,3/8" x 7/8" x .083"

- 5/16"

8шт.

11-420

BOLT - 1/4" x 1-1/4" rhd. sq. nk.; nut (25-104) L.W. (92-4)

1шт.

10

F81760

SPROCKET - (60T) drives reel jackshaft, 19-31 RPM with 15T sprocket - 28-45 RPM with 22T drive sprocket

1шт.

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

1шт.

11

3162-1/2HT

BLOCK - idler (Wood) reel jackshaft drive

1шт.

12

F20637

CHAIN - reel jackshaft drive (See chain page)

1шт.

13

F20636

CHAIN - auger drive (See chain page)

1шт.

14

F82898

SPROCKET ASSY.

SPROCKET - (15T) drives reel jackshaft-standard (Before #8361801)

1шт.

F92661

SPROCKET - drives reel jackshaft (#8361801 and after)

1шт.

15

O1032HT

X

KEY - 1/4" x 1/4" x 3-1/2" (Before #8361801)

1шт.

O30105HT

KEY - 1/4" x 1/4" x 3-1/2" (#8361801 and after)

1шт.

16

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

1шт.

17

O1932AB

WASHER - (3 inside and 2 outside of F81741)

5шт.

18

F81741

SPROCKET - auger drive (22T)

1шт.

19

F83686

SHEAVE - jackshaft, driven

1шт.

20

O906B

WASHER

- (1-1/2" x 1-1/32" #16 ga.)

1шт.

21

F20587

BRACKET - idler

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Nut (25-115) L.W. (92-5) Hex, 5/16"-24 x 3/4", G5, Full Thd

4шт.

95-5

WASHER,3/8" x 7/8" x .083"

- 5/16" flat

2шт.

22

F75313

NUT - lock assembly

1шт.

23

F83685

SHEAVE

1шт.

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

1шт.

24

F20899

SHAFT - upper feed rake (Before #8361801)

1шт.

F41815

SHAFT - upper feed rake (#8361801 and after)

1шт.

25

F81287

SHEAVE - header drive

1шт.

14-614

SCREW,Hex, 3/8" - 24 x 7/8", Gr 5

BOLT - 3/8" x 7/8" N.F. hex.; nut (25-116) L.W. (92-6)

6шт.

26

F17445

V-BELT

BELT - jackshaft

1шт.

27

14-1048

BOLT,Hex, 5/8" - 18 x 3", Gr 5

- 5/8" x 3" N.F. hex

1шт.

28

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

29

F6458

BEARING ASSY

SHEAVE - idler, upper feed rake

1шт.

30

VP592

SPACER - (7/8" O.D. x 15/16" long)

1шт.

31

95-10

WASHER,5/8"

FLATWASHER - 5/8"

1шт.
