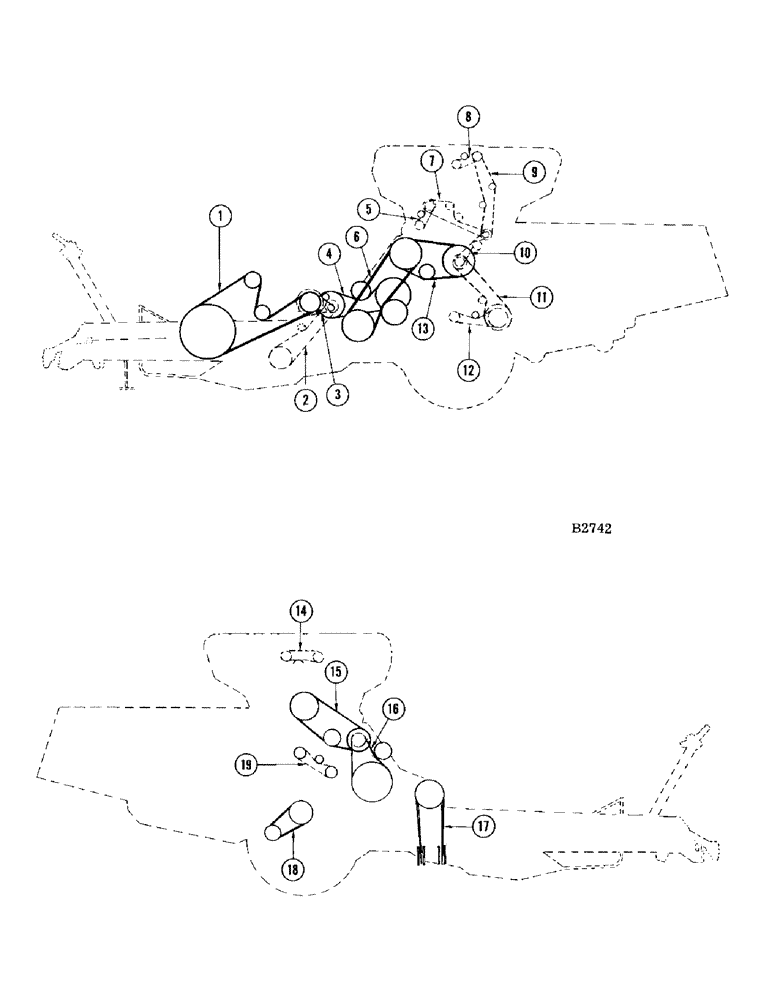

Запчасти Case IH 460 (003A) - BELT AND CHAIN DRIVE REFERENCE (05) - SERVICE & MAINTENANCE

1

F16633

BELT

Reel Drive

1шт.

2

F20636

CHAIN - auger drive

1шт.

3

F20637

CHAIN - reel jackshaft drive

1шт.

F17924

X

CHAIN - extension, reel jackshaft drive

1шт.

F17514

X

CHAIN - extension, reel jackshaft drive

1шт.

4

F17445

V-BELT

BELT - jackshaft

1шт.

5

F17105

X

CHAIN - discharge auger drive, tailings elevator

1шт.

6

F41177

BELT

- main drive

1шт.

7

F41298

CHAIN - tailings elevator drive

1шт.

8

F51206

ROLLER

CHAIN - distribution auger drive

1шт.

9

F41297

CHAIN - grain elevator drive

1шт.

10

F41296

CHAIN - countershaft drive

1шт.

11

F16228

X

CHAIN - crankshaft drive

1шт.

12

F16079

X

CHAIN - fan jackshaft drive

1шт.

13

F20741

SCREW

BELT - beater drive

1шт.

14

F41263

CHAIN - rear distribution auger drive

1шт.

15

F20722

SCREW

BELT - grain bin drive

1шт.

16

F20721

SCREW

BELT - header drive

1шт.

17

F20628

BELT - sickle drive

1шт.

18

F16080

V-BELT

Fan Drive

1шт.

19

F18520

X

CHAIN - cylinder drive

1шт.

F16252

X

CHAIN - extension, cylinder drive

1шт.

F16744

V-BELT

BELT - pickup rear roller drive, additional

1шт.

F16745

V-BELT

BELT - pickup jackshaft drive, additional

1шт.

F19549

V-BELT,153.00" L

Front Cutter Spreader Drive, Additional 153.00" L

1шт.

F19550

V-BELT

BELT - rear (73") cutter and spreader drive, additional

1шт.
