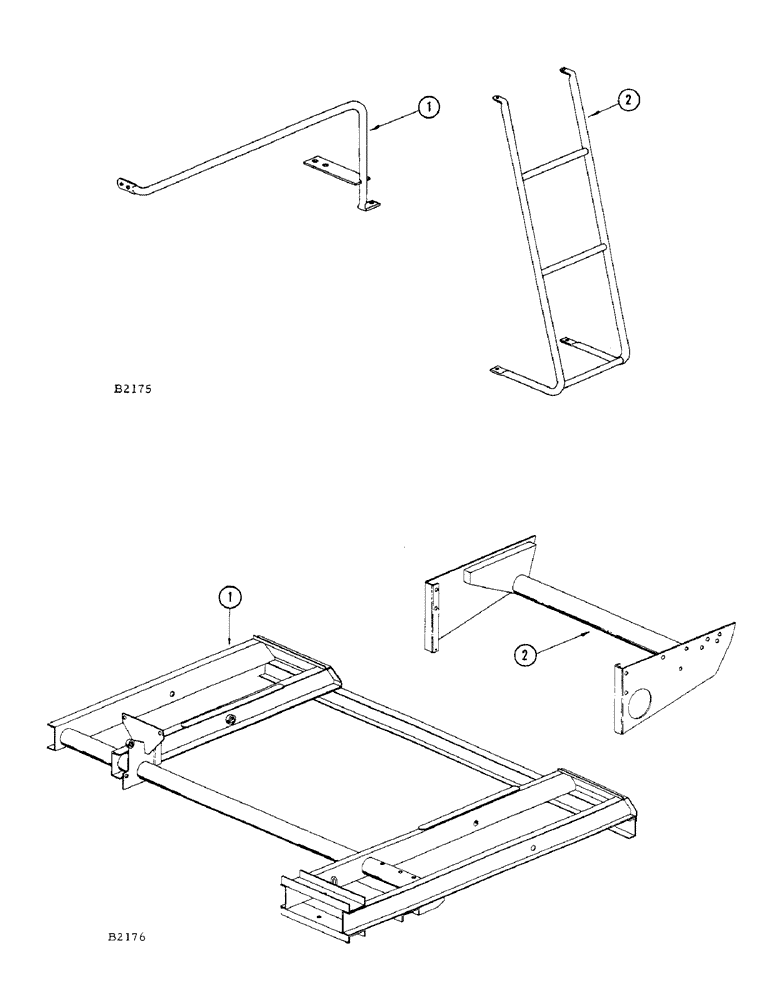

Запчасти Case IH 400 (092) - LADDER AND RAILING (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

F83732

HANDRAIL

1шт.

FHBNF 5/16" x 5/8" (14-510) nut (25-115) L.W. (92-5)

2шт.

BOLT - rd. hd. sq. nk. 5/16" x 3/4" (11-512) nut (25-105) and L.W. (92-5)

2шт.

FHBNF 5/16" x 1" (14-516) nut (25-115) L.W. (92-5)

1шт.

2

F82410

LADDER

1шт.

FHBNF 5/16" x 3/4" (14-512) nut (25-115) L.W. (92-5)

4шт.

1

F83705

FRAME - main

1шт.

2

F80830

TUBE - torque, main frame

1шт.

FHBNF 3/8" x 2-3/4" (14-644) nut (25-116) L.W. (92-6), main fram

8шт.

FHBNF 3/8" x 3/4" (14-612) nut (25-116) L.W. (92-6), main frame

6шт.

B17093

DECAL KIT - for "400" combine

1шт.

321-7

DECAL

EAGLE - (Grain bin R.H. side), decal kit

1шт.

321-17

DECAL

PATENTS - (L.H. rear side sheet), decal kit

1шт.

321-258

DECAL

"CASE" - (Front of grain bin, rear hook R.H. & L.H. sider), decal kit

3шт.

321-266

DECAL

NAME AND ADDRESS - (Rear hood), decal kit

1шт.

321-584

DECAL

TAILINGS CHECK - (Tailings inspection door), decal kit

1шт.

321-587

DECAL

TAILINGS BELT - (R.H. rear side sheet), decal kit

1шт.

321-588

DECAL

CYLINDER SPEED - (R.H. front side sheet), decal kit

1шт.

321-589

DECAL

CONCAVE SETTING - (R.H. front side sheet), decal kit

1шт.

321-699

"400" - (Front of grain bin, rear hood R.H. & L.H. sides), decal kit

3шт.
