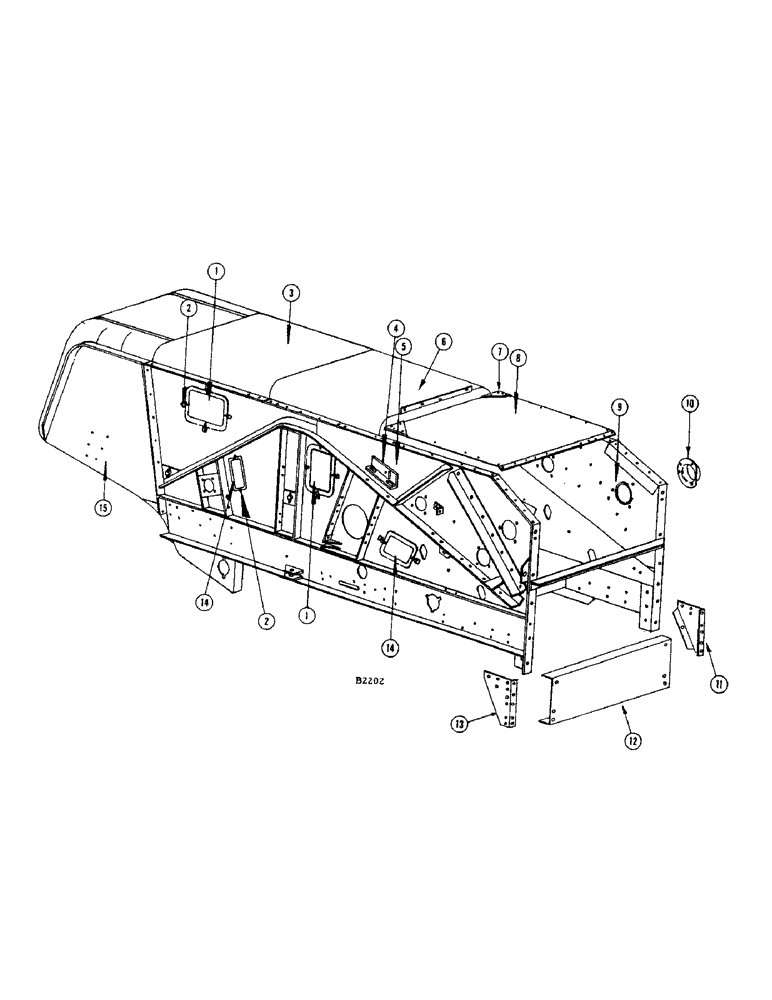

Запчасти Case IH 400 (084) - BODY PANELS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

F16580

DOOR - access

4шт.

2

F86525

CLIP

- door (#8262501 and after)

24шт.

RIVET - 3/16" x 4/16" semi-tubular (151-123)

24шт.

F7738

CLIP - door (Berore #8262501)

34шт.

RIVET - split steel #1729 3/16" x 1-1/2" (151-196)

34шт.

3

F83702

DECK - rear

1шт.

FHBNF 1/4" x 1/2" (14-48) nut (25-114) L.W. (92-4)

12шт.

4

F19955

BRACKET - stiffener, R.H.

1шт.

FHBNF 5/16" x 3/4" (14-512) nut (25-115) L.W. (92-5) and wshr. (195-21)

1шт.

F19954

BRACKET - stiffener, L.H.

1шт.

5

F85337

SHEET - R.H.

1шт.

BOLT - rd. hd. sq. nk. 3/8" x 3/4" (12-612) nut (25-106) and L.W. (92-6)

1шт.

BOLT - rhd. sq. nk. 3/8" x 3/4" (11-612) nut (25-106) and L.W. (92-6)

4шт.

FHBNF 5/16" x 1/2" (14-58) nut (25-115) L.W. (92-5)

1шт.

FHBNF 1/4" x 5/8" (14-410) nut (25-114) L.W. (92-4)

13шт.

6

F83735

FILLER - rear deck

1шт.

FHBNF 5/16" x 3/4" (114-102) nut (129-122) L.W. (192-20)

3шт.

FHBNF 5/16" x 5/8" (114-105) nut (129-122) L.W. (192-20)

6шт.

BOLT - tapping, 1/4" x 7/16" (187-1013) wshr. (195-518)

1шт.

FHBNF 1/4" x 5/8" (114-3) nut (129-121) L.W. (192-9)

6шт.

7

F20699

SCREW

GUSSET - deck channel

2шт.

FHBNF 1/4" x 7/8" (14-414) nut (25-114) L.W. (92-4)

2шт.

FHBNF 3/8" x 7/8" (14-614) nut (25-116) L.W. (92-6)

2шт.

8

F20698

SCREW

DECK - top

1шт.

FHBNF 3/8" x 7/8" (14-614) nut (25-116) L.W. (92-6)

4шт.

FHBNF 1/4" x 5/8" (14-410) nut (25-114) L.W. (92-4)

6шт.

FHBNF 1/4" x 1/2" (14-48) nut (25-114) L.W. (92-4) and wshr. (95-4)

8шт.

9

F85535

SHEET - L.H.

1шт.

FHBNF 5/16" x 3/4" (14-512) nut (25-115) L.W. (92-5)

1шт.

10

F17425

SCREW

COLLAR - support

1шт.

BOLT - rd. hd. sq. nk. 5/16" x 3/4" (11-512) nut (25-105) and L.W. (92-5)

3шт.

11

F20681

SCREW

GUSSET - L.H.

1шт.

12

F20680

SCREW

CHANNEL - cross

1шт.

13

F20689

SCREW

GUSSET - R.H.

1шт.

14

F8077

DOOR - access

4шт.

15

F83838

HOOD - rear

1шт.

FHBNF 3/8" x 3/4" (114-209) nut (129-123) L.W. (192-21)

2шт.

FHBNF 1/4" x 5/8" (114-3) nut (129-121) L.W. (192-19)

8шт.

FHBNF 1/4" x 3/4" (114-5) nut (129-121) L.W. (192-19)

4шт.

FHBNF 1/4" x 1/2" (114-2) nut (129-121) L.W. (192-19)

17шт.

WASHER - 1/4" (195-102)

5шт.
