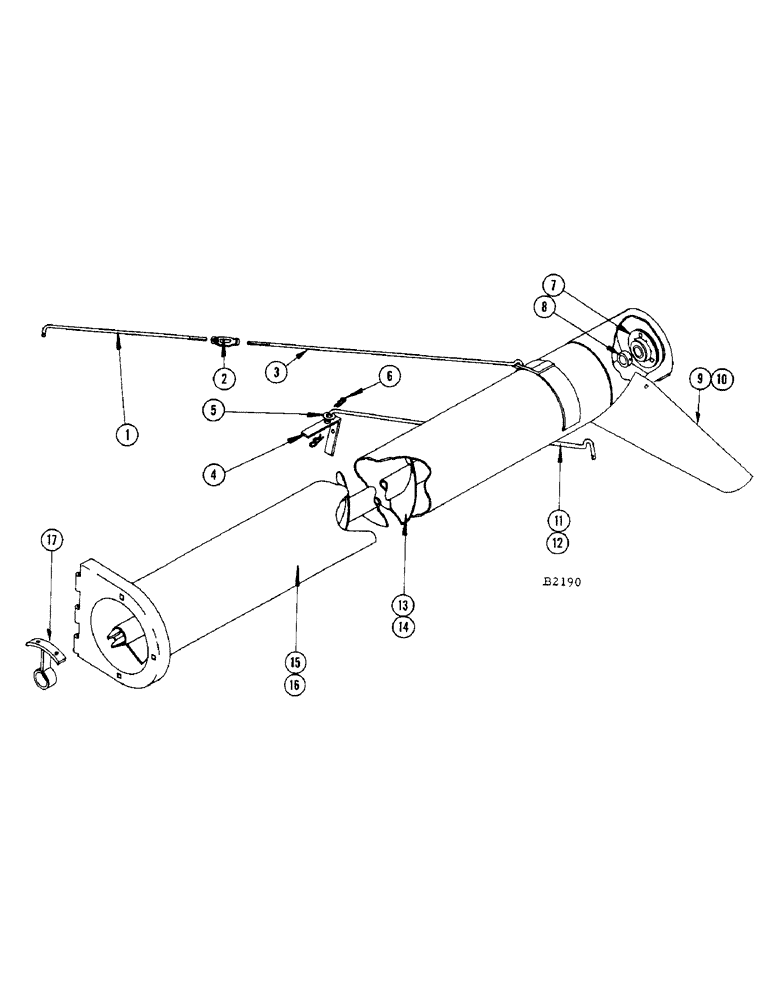

Запчасти Case IH 400 (072) - GRAIN BIN DISCHARGE AUGER (80) - CROP STORAGE/UNLOADING

1

F16407

ROD - hook (Before #8262501)

1шт.

F21070

ROD - hook (#8262501 and after)

1шт.

PIN - cotter 1/8" x 3/4" (132-46)

1шт.

NUT - 3/8" N.C. hex. jam (25-146)

1шт.

2

F1461

TURNBUCKLE

1шт.

3

F17087

BRACE

1шт.

4

F17941

SPLICE - reinforcement

1шт.

5

195-37

WASHER,9/16"

- I.D. plain 9/16"

1шт.

6

TB10698

COTTER - hair pin

2шт.

7

F78749

COLLAR

BEARING - (Aetna #AG1014-4)

1шт.

8

F52076

COLLAR

1шт.

BOLT - rd. hd. sq. nk. 5/16" x 3/4" (11-512) nut (25-105) and L.W. (92-5)

3шт.

9

F17090

SPOUT - auger (Before #8262501)

1шт.

FHBNF 3/8" x 1" (14-616) dbl. nut (25-116)

2шт.

10

F40654

SPOUT - auger (#8262501 and after)

1шт.

FHBNF 3/8" x 1" (14-616) dbl. nut (25-116)

2шт.

11

F18466

ROD - support (Before #8262501)

1шт.

PIN - cotter 1/8" x 3/4" (132-46)

1шт.

12

F40650

ROD - support (#8262501 and after)

1шт.

PIN - cotter 1/8" x 3/4" (132-46)

1шт.

13

F82307

AUGER - (Before #8262501)

1шт.

14

F85579

AUGER - (#8262501 and after)

1шт.

15

F83737

TUBE

- auger (Before #8262501)

1шт.

16

F85578

TUBE - auger (#8262501 and after)

1шт.

17

F82312

BEARING - center

1шт.

FHBNF 5/16" x 3/4" (14-512) nut (25-115) L.W. (92-5)

2шт.
