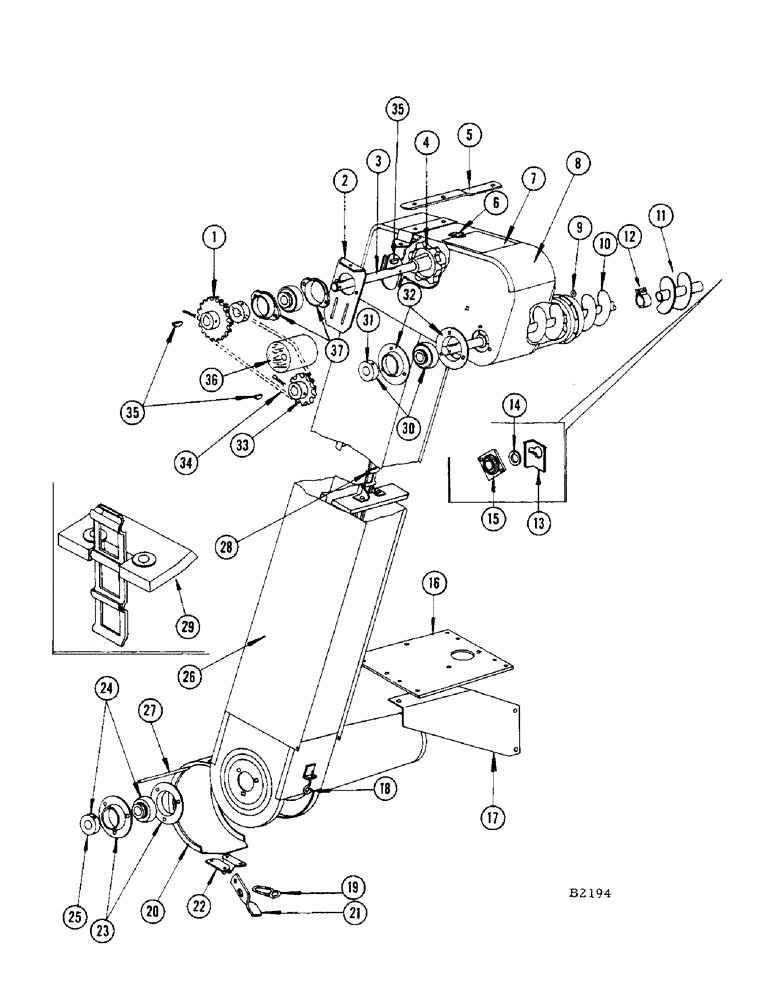

Запчасти Case IH 400 (066) - GRAIN ELEVATOR (80) - CROP STORAGE/UNLOADING

1

F76981

SPROCKET - (22T)

1шт.

PIN - cotter 3/16" x 2" (132-99)

1шт.

2

F17592

HOLDER - bearing

2шт.

FHBNF 5/16" x 2-1/2" (114-112) dbl. nut (25-105)

2шт.

3

F6571

SHAFT - upper, elevator

1шт.

4

51B

SPROCKET ASSY.

SPROCKET

1шт.

PIN - cotter 3/16" x 1-3/4" (132-97)

1шт.

5

F17722

BRACE - elevator to grain bin

1шт.

FHBNF 5/16" x 5/8" (14-510) nut (25-115) L.W. (92-5)

1шт.

FHBNF 5/16" x 3/4" (14-512) nut (25-115) L.W. (92-5)

2шт.

6

F86525

CLIP

- upper head door

1шт.

RIVET - steel split 3/16" x 8/16" (151-123)

1шт.

7

F20546

DOOR - upper head

1шт.

8

F81900

HEAD - upper

1шт.

SCREW - rd. hd. mach. 3/16" x 1/2" (15-38) nut (129-7) and L.W. (92-3)

7шт.

FHBNF 1/4" x 5/8" (14-410) nut (25-114) L.W. (92-4)

6шт.

9

O2511B

WASHER - (1" O.D. x 9/32" I.D. #16 ga.)

6шт.

10

F82888

AUGER - distribution

1шт.

11

F82889

AUGER - discharge sliding

1шт.

12

F11437

CLAMP

2шт.

FHBNF 5/16" x 3/4" (14-512) nut (25-115) L.W. (92-5)

2шт.

13

F20776

SCREW

INDICATOR - rotation

1шт.

14

F20286

WASHER

- (1-3/8" O.D. x 29/32" I.D. #16 ga.)

1шт.

15

F7902

BALL BEARING

BEARING - L.H. (Aetna #AG1014E)

1шт.

FHBNF 5/16" x 3/4" (14-512) nut (25-115) L.W. (92-5)

2шт.

16

F17696

PLATE - support

1шт.

FHBNF 1/4" x 3/4" (14-412) nut (25-114) L.W. (92-4)

2шт.

17

F17695

SUPPORT - lower

1шт.

FHBNF 5/16" x 3/4" (14-512) nut (25-115) L.W. (92-5)

3шт.

18

O315CS

HOOK - latch

1шт.

19

O316CS

SPRING - latch handle

1шт.

20

F81610

COVER - lower head

1шт.

21

O313CS

HANDLE

1шт.

RIVET - rd. hd. 3/16" x 5/8" (45-310)

1шт.

22

O314CS

BRACKET

2шт.

RIVET - W.B. hd. 3/16" x 5/16" (49-35)

4шт.

23

O799CB

X

FLANGETTE

2шт.

BOLT - rd. hd. sq. nk. 5/16" x 3/4" (11-512) nut (25-105) and L.W. (92-5)

3шт.

24

F90306

BEARING ASSY

BEARING - (Fafnir #RA014PPB)

3шт.

25

O4233CS

COLLAR

1шт.

26

F85548

TUBE - grain elevator

1шт.

FHBNF 5/16" x 3/4" (14-512) nut (25-115) L.W. (92-5)

3шт.

WASHER - 5/16" (95-5)

4шт.

BOLT - rd. hd. sq. nk. 1/4" x 5/8" (12-410) nut (25-104) and L.W. (92-4) wshr. (95-5)

4шт.

BOLT - rd. hd. sq. nk. 1/4" x 1/2" (12-48) nut (25-104) and L.W. (92-4)

4шт.

FHBNC 1/4" x 1/2" (13-48) nut (25-104) L.W. (92-4) and wshr. (95-5)

2шт.

27

O309CS

PIN - hinge, lower head cover

1шт.

28

F82406

X

CHAIN AND FLIGHTS - (USE (1) F86419, (1) F86423 AND (1) F86425)

1шт.

F86423

CHAIN (AG)

CHAIN AND FLIGHTS - (Consists of chain with 10 flights)

1шт.

F86425

CHAIN (CE)

CHAIN AND FLIGHTS - (Consists of chain with 20 flights)

1шт.

F86419

CHAIN AND FLIGHTS - (Consists of chain with 2 flights)

1шт.

29

F79799

RUBBER FLIGHT

FLIGHT - (Rubber) elevator chain (Includes (1) F11165 flight, (1) 235-65 att. link, (2) #55 plain links and (2) 151-135 rivets)

32шт.

30

F90306

BEARING ASSY

BEARING - elevator shafts (Fafnir #RA014PPB w/O4233CS collar)

1шт.

31

O4233CS

COLLAR

1шт.

32

O799CB

X

FLANGETTE

2шт.

BOLT - rd. hd. sq. nk. 5/16" x 3/4" (11-512) nut (25-105) and L.W. (92-5)

3шт.

33

F76947

SPROCKET - drive (15T)

1шт.

PIN - cotter 3/16" x 2" (132-99)

1шт.

34

F51206

ROLLER

CHAIN - distribution auger drive (Use (1) B12470 chain, (2) B12472 chains, (1) B12473 chain and (1) B12502 offset link #40 roller chain)

1шт.

35

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

3шт.

36

F4718

BLOCK - idler

1шт.

BOLT - rd. hd. sq. nk. (11-660) nut (25-106) L.W. (92-6) and wshr. (95-6)

1шт.

37

F9417

FLANGE

TTE

4шт.

BOLT - rd. hd. sq. nk. (11-512) nut (25-105) L.W. (92-5)

4шт.
