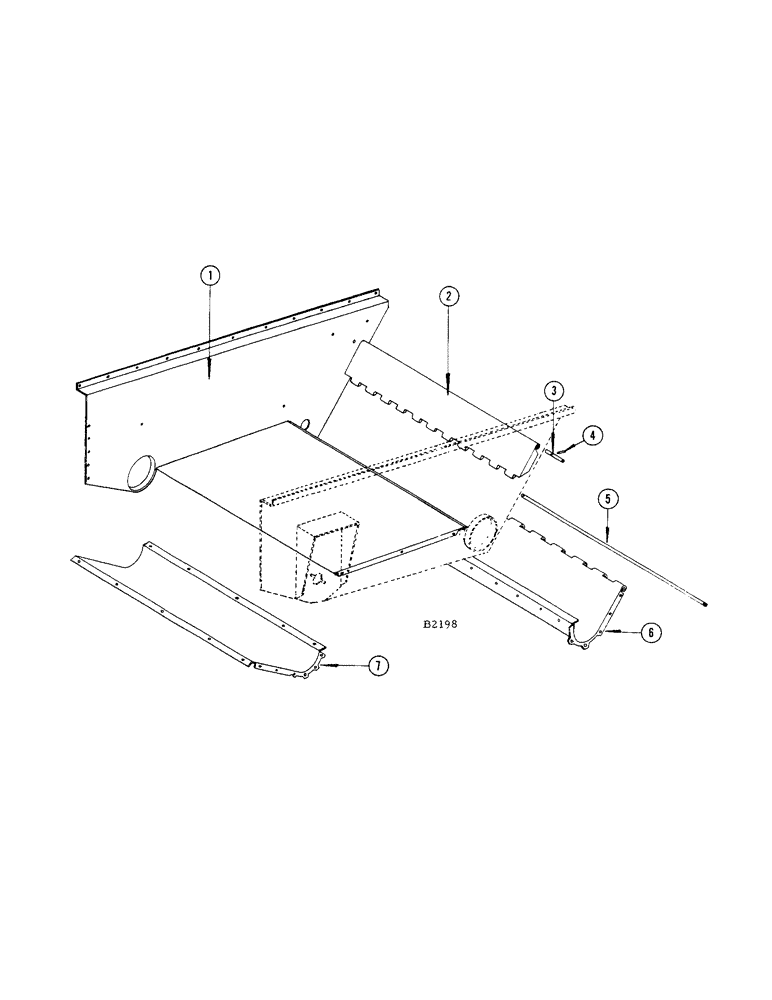

Запчасти Case IH 400 (064) - GRAIN AND TAILINGS AUGER TROUGH (80) - CROP STORAGE/UNLOADING

1

F84211

EXTENSION - side sheet

1шт.

FHBNF 3/8" x 2-3/4 (14-644) nut (25-116) L.W. (92-6)

2шт.

FHBNF 1/4" x 2-3/4" (14-444) nut (25-114) L.W. (92-4)

2шт.

FHBNF 1/4 x 3/4" (14-412) nut (25-114) L.W. (92-4)

4шт.

FHBNF 1/4" x 5/8" (14-410) nut (25-114) L.W. (92-4)

26шт.

FHBNF 1/4" x 1/2" (14-48) nut (25-114) L.W. (92-4)

36шт.

2

F80997

PANEL - hinge, tailings trough

1шт.

3

F16449

ROD - latch

2шт.

4

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN - roll, latch rod (5/16" x 1-1/4")

2шт.

5

F16450

ROD - hinge

1шт.

FHBNF 1/4" x 1/2" (14-48) nut (25-114) L.W. (92-4)

10шт.

6

F16064

TROUGH - tailings auger

1шт.

7

F16058

TROUGH - grain auger

1шт.

FHBNF 1/4" x 1/2" (14-48) nut (25-114) L.W. (92-4)

12шт.
