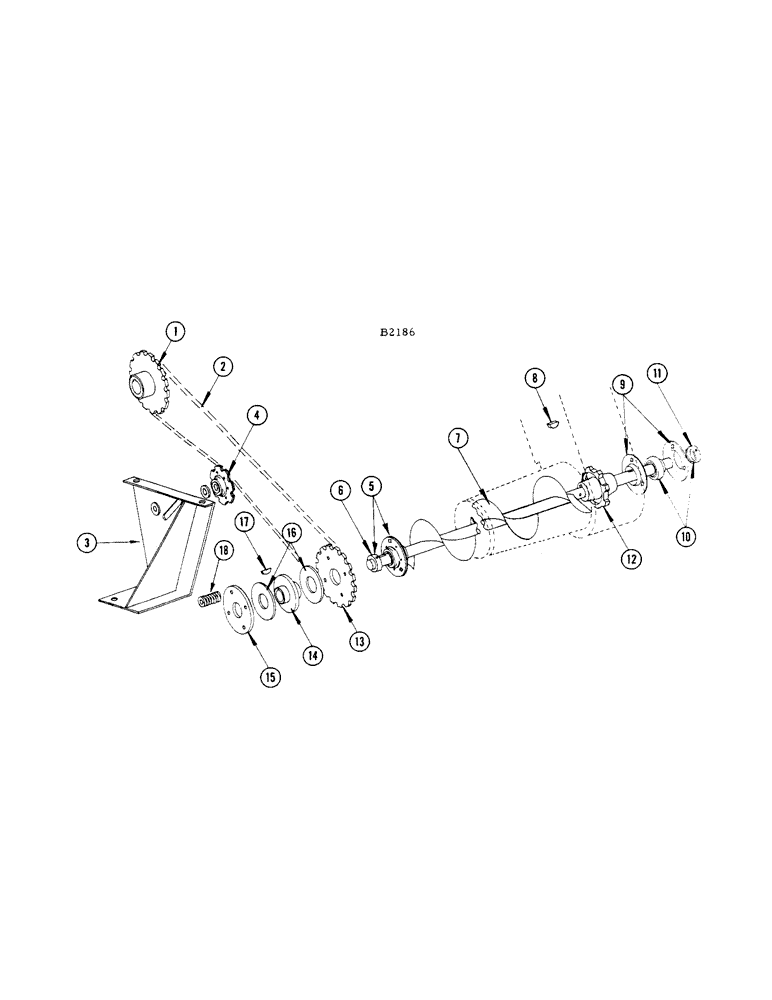

Запчасти Case IH 400 (064[1]) - GRAIN AUGER (80) - CROP STORAGE/UNLOADING

1

F80863

SPROCKET - (18T)

1шт.

2

F16442

X

CHAIN - grain elevator drive (Use (3) B12486 chains, (1) B12514 conn. link and (3) B12516 roller links #AG2040 roller chain)

1шт.

3

F83712

SUPPORT - L.H. rear body

1шт.

FHBNF 3/8" x 3/4" (14-612) nut (25-116) L.W. (92-6)

3шт.

WASHER - bevel 3/8" D. 1-1/4" x 1-1/4" (195-901)

2шт.

FHBNF 3/8" x 1-1/4" (14-620) nut (25-116) L.W. (92-6)

2шт.

4

F8659

SPROCKET - idler (11T) FHBNF - 5/8" x 2-1/4" (14-1036) nut (25-1110) L.W. (92-10) WASHER - 5/8" (95-10)

2шт.

5

F78749

COLLAR

BEARING - L.H. (Aetna #AG1014-4)

1шт.

6

F52076

COLLAR

1шт.

BOLT - rd. hd. sq. nk. 5/16" x 3/4" (11-512) nut (25-105) and L.W. (92-5)

2шт.

7

F81611

AUGER - grain

1шт.

PIN - cotter 3/16" x 1-3/4" (132-97)

1шт.

8

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

1шт.

9

O799CB

X

FLANGE

1шт.

10

F90306

BEARING ASSY

BEARING - (Fafnir #RA014PPB)

1шт.

11

O4233CS

COLLAR

1шт.

12

51B

SPROCKET ASSY.

SPROCKET - (7T)

1шт.

PIN - cotter 3/16" x 1-1/4" (132-97)

1шт.

13

F16422

SPROCKET - auger drive slip clutch (18T)

1шт.

PIN - cotter 3/16" x 1-1/4" (132-93)

1шт.

14

F1418

HUB - slip clutch

1шт.

PIN - cotter 1/8" x 1-1/4" (132-50)

1шт.

15

F16421

PLATE - pressure

1шт.

FHBNF 5/16" x 3" (14-548) dbl. hex. nut (25-115) and wshr. (95-5)

4шт.

16

F82060

SET

FACING - clutch (Set of 2)

1шт.

17

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

1шт.

18

F60482

SPRING

- slip clutch

4шт.
