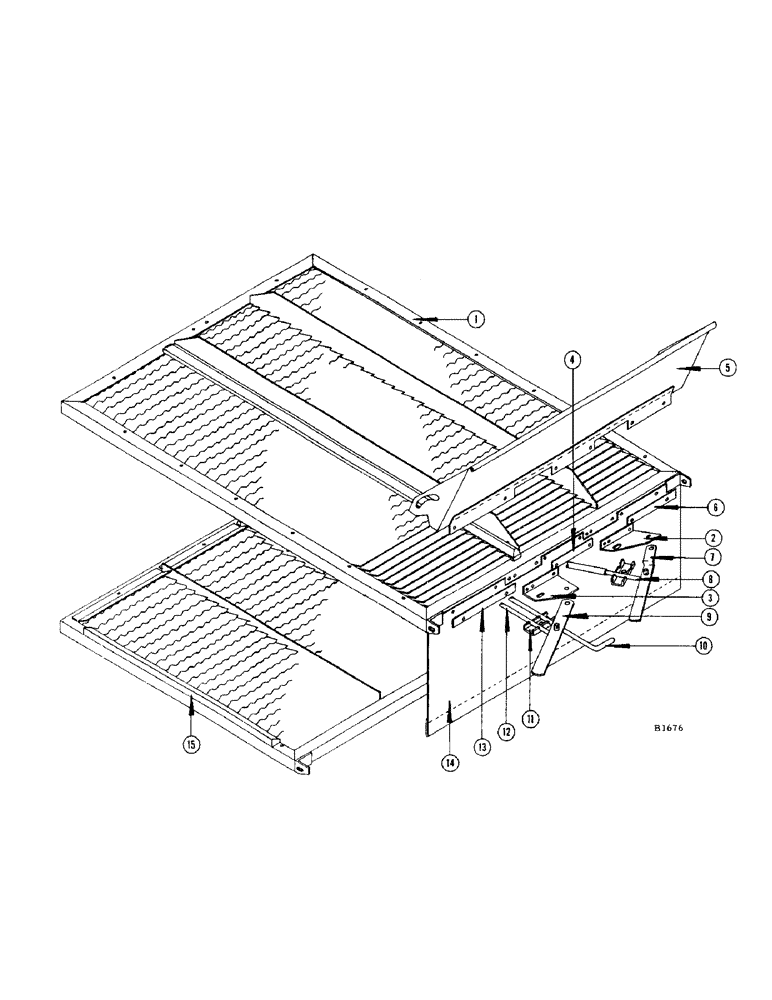

Запчасти Case IH 400 (062) - SIEVES (74) - CLEANING
№
Артикул
Название
Примечание
Количество
1
F81031
SIEVE - chaffer
1шт.
FHBNF 5/16" x 3/4" (114-102) nut (129-122) and L.W. (192-20)
2шт.
FHBNF 5/16" x 3/4" (114-102) L.W. (192-20)
2шт.
2
F17379
SCREW
BRACKET - cleaning sieve
1шт.
RIVET - rd. hd. 3/16" x 5/8" (45-310)
2шт.
RIVET - rd. hd. 3/16" x 1/2" (45-38)
1шт.
3
F16570
BRACKET - adjustment
1шт.
RIVET - rd. hd. 3/16" x 5/8" (45-310)
2шт.
RIVET - rd. hd. 3/16" x 1/2" (45-38)
1шт.
4
F17849
STRIP - bolting, center
1шт.
5
F82016
GATE - tail
1шт.
FHBNF 1-1/4" x 3/4" (114-5) nut (129-121) and L.W. (192-19) wshr. (195-518)
2шт.
6
F17848
STRIP - bolting, R.H. tail gate
1шт.
7
F17853
LEVER - adjustment, cleaning sieve
1шт.
FHBNF 5/16" x 3/4" (14-512) Esna lockout (131-31)
1шт.
8
F82015
ROD - adjustment, cleaning sieve
1шт.
PIN - cotter 3/32 " x 5/8" (132-25)
1шт.
9
F17374
LEVER - adjustment, chaffer sieve
1шт.
FHBNF 5/16" x 3/4" (14-512) Esna locknut (131-31)
1шт.
10
F17497
ROD - adjustment, chaffer sieve extension
1шт.
PIN - cotter 3/32" x 5/8" (132-25)
1шт.
11
F17381
CLAMP
2шт.
BOLT - rd. hd. sq. nk. 5/16" x 1-1/4" (11-520) and nut (25-105) L.W. (92-5) wshr. (95-5)
2шт.
12
F17380
ROD - adjustment, chaffer sieve
1шт.
PIN - cotter 3/32" x 5/8" (132-25)
2шт.
13
F17847
STRIP - bolting, L.H. tail gate
1шт.
14
F18476
WASHER
CHECK FLAP
1шт.
FHBNF 1/4" x 3/4" (14-412) nut (25-114) L.W. (92-4)
6шт.
15
F81040
SIEVE
- cleaning
1шт.
F81071
SIEVE - flax (3/16" dia. rd. hole)
1шт.
F81072
SIEVE - rice and corn (5/8" dia. rd. hole)
1шт.
F81073
SIEVE - fenugreek, flax millet, and lespedeza (5/32" dia. rd. hole)
1шт.
F81074
SIEVE - sugar beets, buckwheat, grain and sorghum (9-32" dia. rd. hole)
1шт.
F81075
SIEVE - buckwheat, crotolaria, wheat, rye, vetch, and fenugreek (1/8" x 3/4" slotted hole)
1шт.
F81076
SIEVE - (9-64" triangular hole)
1шт.
F81077
SIEVE - grasses and timothy (5/64" dia. rd. hole)
1шт.
F81078
SIEVE - alfalfa, clover, grasses, and mustard (3/32" dia. rd. hole)
1шт.
F81079
SIEVE - clover, grasses, mustard (1/8" dia. rd. hole)
1шт.
F81080
SIEVE - buckwheat (7/32" dia. rd. hole)
1шт.
F81081
SIEVE - corn, beans, peas, and spelt (3/8" dia. rd. hole)
1шт.
F81082
SIEVE - rice, peas, and beans (1/2" dia. rd. hole)
1шт.
Выбрано товаров: 41
