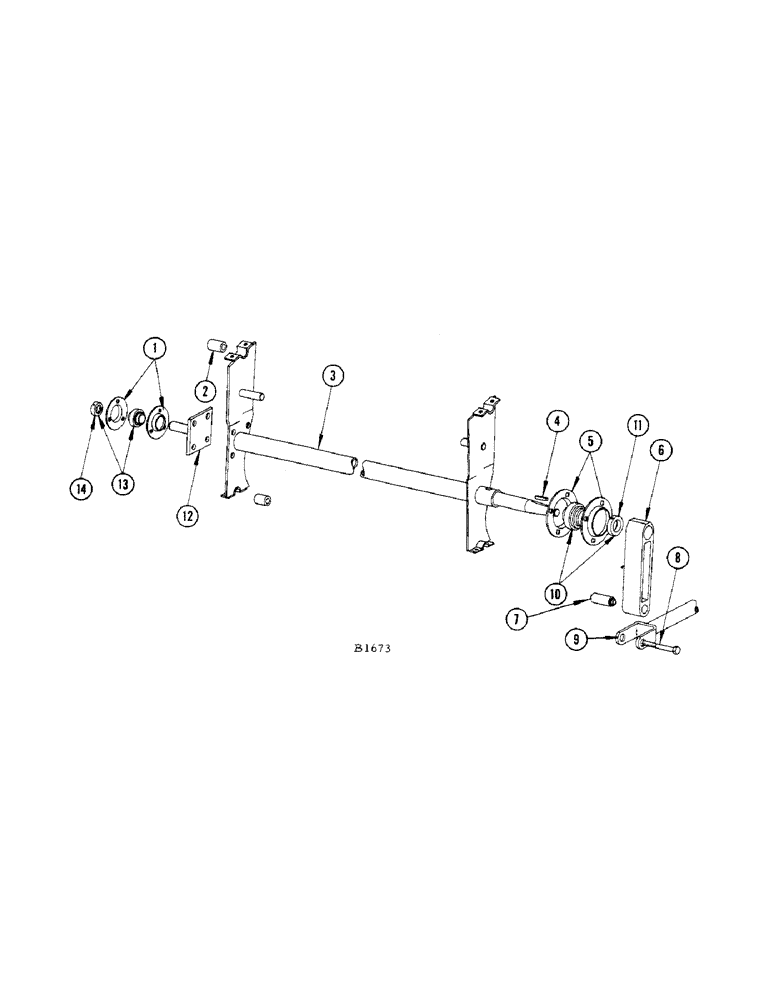

Запчасти Case IH 400 (058[1]) - SHOE ROCKER ARM SHAFT (74) - CLEANING

1

O799CB

X

FLANGETTE

2шт.

BOLT - rd. hd. sq. nk. 5/16" x 3/4" (11-512) nut (25-105) and L.W. (92-5)

3шт.

2

F16808

BUSHING

- torsion

2шт.

3

F83848

SHAFT - shaker

1шт.

4

O8065HT

KEY

- (3/8" sq. x 1-7/16")

1шт.

5

F8944

FLANGE

2шт.

BOLT - rd. hd. sq. nk. 1/2" x 1" (11-816) nut (25-108) and L.W. (92-8)

4шт.

6

F81351

ARM

- rocker

1шт.

7

F17773

BUSHING

- (1-9/32" O.D. x 2" long)

1шт.

8

F17005

SCREW

BOLT - pivot

1шт.

PIN - cotter 1/8" x 1-1/4" (132-50)

1шт.

NUT - slotted N.F. 5/8" (25-1310)

1шт.

9

F80887

PITMAN

1шт.

10

F77924

BEARING

- R.H. (Fafnir #1108KRRB)

1шт.

11

O2991CS

X

COLLAR

1шт.

12

F81350

SHAFT - stub

1шт.

FHBNF 7/16" x 1-1/4" (14-720) nut (25-117) L.W. (92-7)

4шт.

13

F82057

BEARING

- (Fafnir #1100KRRB)

1шт.

14

O3785CS

X

COLLAR

1шт.
