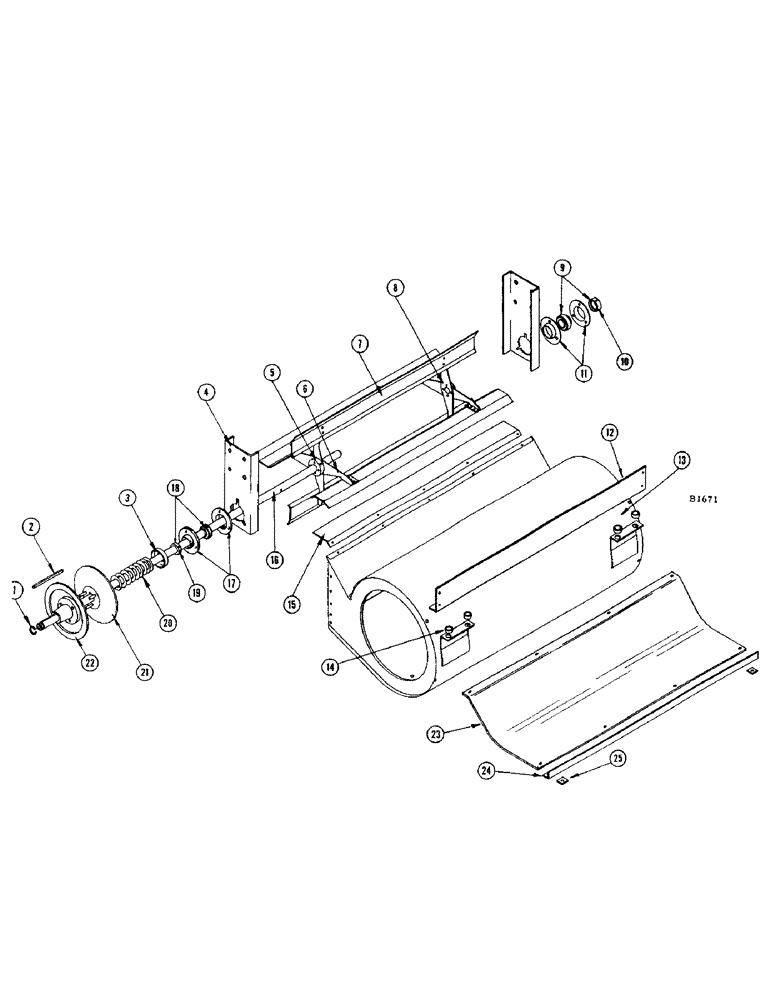

Запчасти Case IH 400 (052) - FAN AND FAN HOUSING (74) - CLEANING
№
Артикул
Название
Примечание
Количество
1
O5872AB
X
RING - snap
1шт.
2
F8896
KEY
1шт.
3
F16078
WASHER - cup
1шт.
4
F16074
SUPPORT - fan bearing
2шт.
FHBNF 5/16" x 5/8" (14-510) nut (25-115) L.W. (92-5)
8шт.
5
F16961
HUB - fan
2шт.
FHBNF 5/16" x 3" (14-548) nut (25-115) L.W. (92-5)
2шт.
6
F17409
SPOKE - fan, R.H.
2шт.
FHBNF 1/4" x 1-1/4" (14-420) nut (25-114) L.W. (92-4)
4шт.
7
F16963
HALF BLADE
BLADE - fan
4шт.
FHBNF 1/4" x 1/2" (14-48) nut (25-114) L.W. (92-4)
16шт.
8
F16962
SPOKE - fan L.H.
2шт.
FHBNF 1/4" x 1-1/4" (14-420) nut (25-114) L.W. (92-4)
4шт.
9
3074CSA
BALL BEARING
- L.H. (Fafnir #RA100NPPB)
1шт.
10
O3785CS
X
COLLAR
1шт.
11
O799CB
X
FLANGE
2шт.
BOLT - rd. hd. sq. nk. 5/16" x 3/4" (11-512) nut (25-105) and L.W. (92-5)
3шт.
12
F83701
SUPPORT - fan
1шт.
FHBNF 3/8" x 1" (14-616) nut (25-116) L.W. (92-6)
4шт.
13
F80858
HOUSING - fan
1шт.
FHBNF 1/4" x 1/2" (14-48) nut (25-114) L.W. (92-4) and wshr. (95-4)
9шт.
14
O1120CS
CUSHION - fan housing
4шт.
NUT - stop, N.F. 5/16" (131-3)
4шт.
15
F16140
EXTENSION - fan wrapper
1шт.
FHBNF 1/4" x 1/2" (14-48) nut (25-114) L.W. (92-4)
5шт.
16
F21236
SHAFT - fan
1шт.
FITTING - grease 1/8" 45 degrees
1шт.
17
O799CB
X
FLANGE
2шт.
BOLT - rd. hd. sq. nk. 5/16" x 3/4" (11-512) nut (25-105) and L.W. (92-5)
3шт.
18
3074CSA
BALL BEARING
- R.H. (Fafnir #RA100NPPB)
1шт.
19
O3785CS
X
COLLAR
1шт.
20
F9021
VALVE SPRING
SPRING - compression
1шт.
21
F81731
SHEAVE HALF - inner
1шт.
22
F1471
SHEAVE
HALF - outer
1шт.
23
F20823
SHIELD, fan, attachment
1шт.
FHBNF 5/16" x 3/4" (114-102), fan shield attachment
4шт.
FHBNF 5/16" x 1" (114-104), fan shield attachment
4шт.
NUT - N.F. 5/16" (129-122) L.W. (192-20), fan shield attachment
8шт.
24
F20822
ANGLE - fan shield attachment
1шт.
FHBNF 5/16" x 1-3/8" (114-125) nut (129-122) and L.H. (192-20), fan shield attachment
2шт.
25
195-901
WASHER - beveled, fan shield attachment
2шт.
Выбрано товаров: 41
