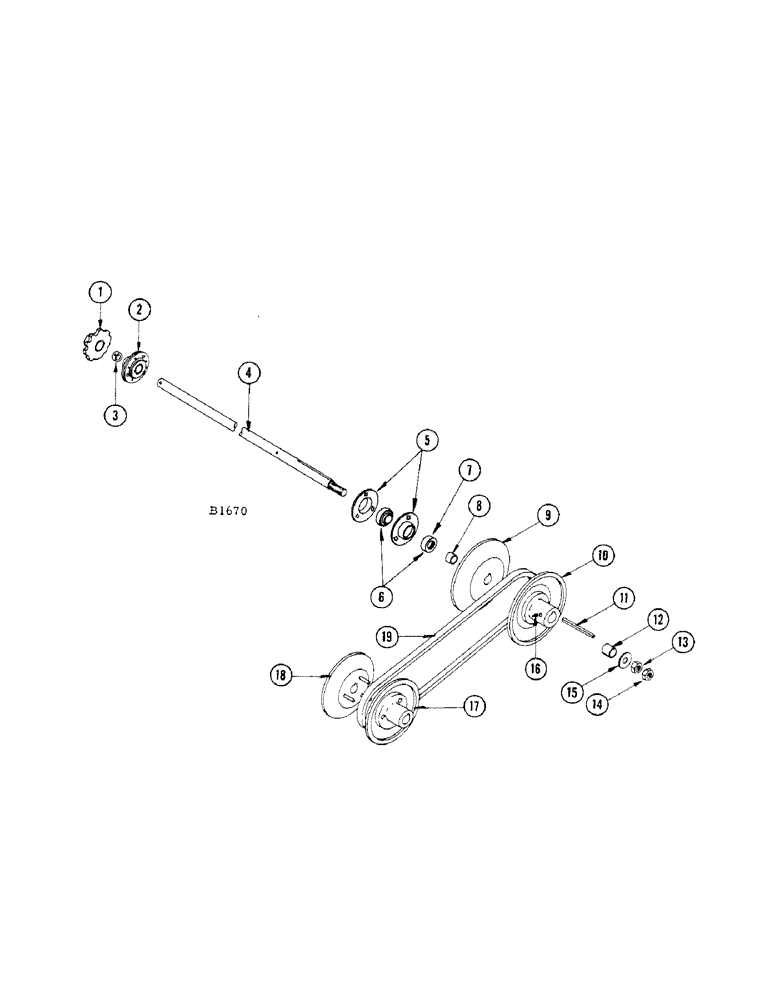

Запчасти Case IH 400 (050[1]) - FAN DRIVE (74) - CLEANING

1

F80859

SPROCKET - (11T)

1шт.

PIN - Driv-Loc 5/16" x 1-3/4" (135-368)

1шт.

2

N4807

X

BEARING - L.H. (Aetna #AG1100)

1шт.

3

F10138

COLLAR

1шт.

BOLT - rd. hd. sq. nk. 5/16" x 3/4" (11-512) nut (25-105) and L.W. (92-5)

3шт.

4

F16965

JACKSHAFT

1шт.

PIN - cotter 1/4" x 1-3/4" (132-152)

1шт.

5

O799CB

X

FLANGETTE

2шт.

BOLT - rd. hd. sq. nk. 5/16" x 3/4" (11-512) nut (25-105) and L.W. (92-5)

3шт.

6

3074CSA

BALL BEARING

- R.H. (Fafnir #RA100NPPB)

1шт.

7

O3785CS

X

COLLAR

1шт.

8

O162CU

SPACER - inner (1-5/16" O.D. x 7/8")

1шт.

9

F1313

SHEAVE

- half, inner

1шт.

10

F1572

SHEAVE - half, outer

1шт.

11

F8896

KEY - (1/4" sq. x 3-3/4" long)

1шт.

12

O6465HT

SPACER - outer (1-5/16" O.D. x 1")

1шт.

14

25-1512

JAM NUT,Jam, 3/4"-10, G5

- 3/4" N.F. hex. jam

1шт.

15

95-12

WASHER,3/4"

- flat 3/4"

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" str.)

1шт.

17

F1471

SHEAVE

HALF - outer

1шт.

18

F81731

SHEAVE HALF - inner

1шт.

19

F16080

V-BELT

Fan Drive

1шт.

F16079

X

CHAIN - fan jackshaft (See page 3)

1шт.
