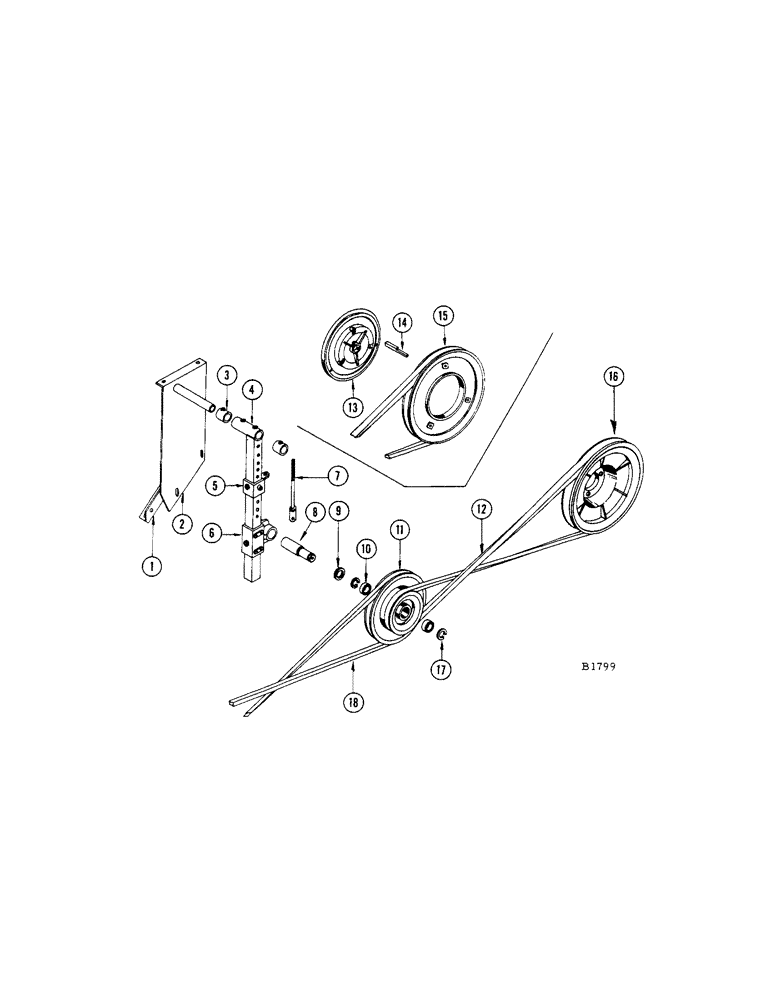

Запчасти Case IH 400 (090) - STRAWCHOPPER DRIVE (73) - RESIDUE HANDLING

1

F19541

ANGLE

1шт.

FHBNF 5/16" x 3/4" (14-512) nut (25-115) L.W. (92-5)

2шт.

FHBNF 5/16" x 1" (114-104) nut (129-122) L.W. (192-20) and wshr. (195-21)

4шт.

2

F82877

BRACKET - idler

1шт.

3

F1601

COLLAR

2шт.

SCREW - set sq. hd. N.C. 3/8" x 5/8" (85-610)

2шт.

4

F82884

HANGER

1шт.

FHBNC 3/8" x 7/8" (13-614) jam nut (25-146)

2шт.

5

F1602

BRACKET - jackshaft

1шт.

SCREW - set sq. hd. N.C. 3/8" x 3/4" (85-612) and jam nut (25-146)

1шт.

FHBNC 3/8" x 5/8" (13-610)

3шт.

FHBNC 3/8" x 1/2" (13-68)

2шт.

FHBNF 5/16" x 1" (14-516) nut (25-115) L.W. (92-5) and wshr. (195-521)

1шт.

6

F1600

STOP

1шт.

SCREW - set sq. hd. N.C. 3/8" x 1/2" (85-608)

1шт.

FHBNC 3/8" x 2-1/4" (13-636) L.W. (92-6)

1шт.

7

F82878

SCREW - adjusting

1шт.

NUT - jam N.C. 3/8" (25-146)

2шт.

8

F19543

JACKSHAFT

1шт.

9

F19544

RING - retaining

1шт.

10

F19545

BEARING, BALL

BEARING (Farnir #205PP3)

2шт.

11

F1603

PULLEY - (Step) intermediate idler

1шт.

12

F19549

V-BELT,153.00" L

Front 153.00" L

1шт.

13

F1606

ADAPTER - (Replaced by Ref. 16 when stocks are exhausted)

1шт.

SCREW - set socket head N.C. 3/8" x 3/4" (83-612)

2шт.

14

F19551

KEY - (Special) replaced by Ref. 16 when stocks are exhausted

1шт.

15

F1605

SHEAVE - cutter drive (Replaced by Ref. 16 when stocks are exhausted)

1шт.

FHBNC 3/8" x 1" (113-207) L.W. (192-21)

3шт.

16

F1693

SHEAVE - drive (Replaces Ref. 13, 14 or 15 when stocks are exhausted)

1шт.

FHBNF 3/8" x 2-1/4" (14-636) nut (25-116) L.W. (92-6)

3шт.

17

O7084AB

X

RING - snap

2шт.

18

F19550

V-BELT

BELT - rear

1шт.
