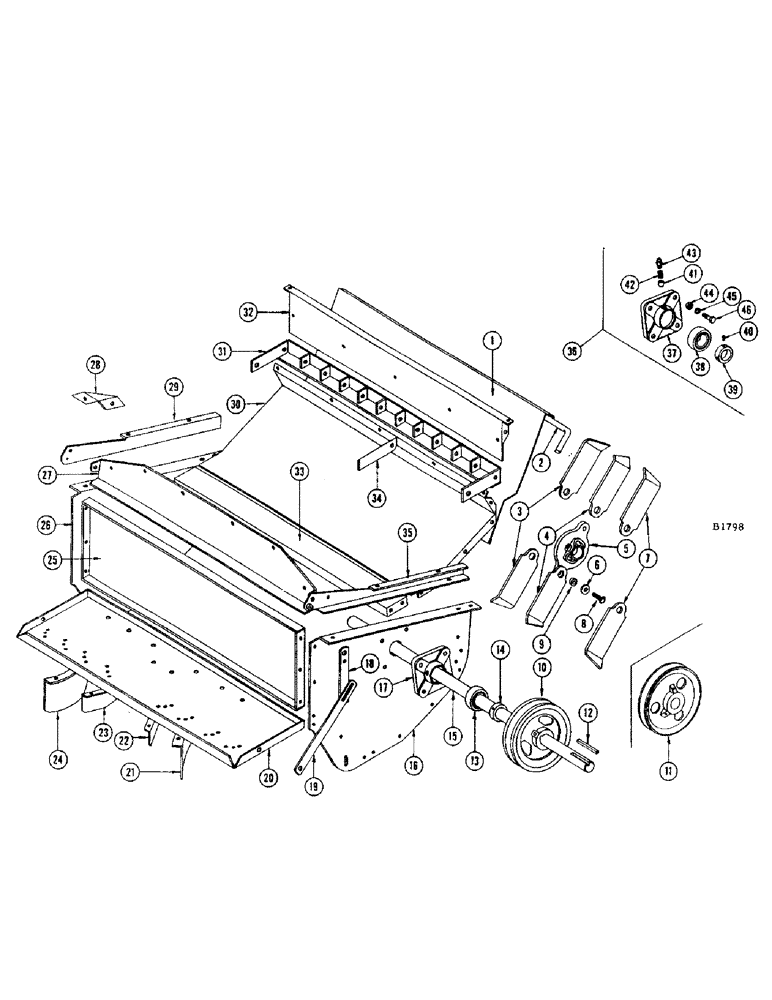

Запчасти Case IH 400 (088) - STRAWCHOPPER ATTACHMENT (73) - RESIDUE HANDLING

1

F82881

SLIDE

DOOR - access

1шт.

2

F19548

ROD

1шт.

PIN - cotter 3/32" x 1/2" (132-24)

1шт.

WASHER - 5/16" (195-521)

2шт.

3

F82876

HAMMERS - L.H. pair

1шт.

4

F82874

HAMMERS - L.H., R.H. pair

9шт.

5

F1599

HOLDER - hammer

1шт.

SCREW - set sq. hd. N.F. 3/8" x 3/4" (86-612) and jam nut (25-156)

2шт.

6

F19530

WASHER - (1-1/8" O.D. x 25/64" I.D. x 3/16" thick)

22шт.

7

F82875

HAMMER - R.H. pair

1шт.

8

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8" x 1-1/4" N.F. hex

22шт.

NUT - N.F. 3/8" (25-116) L.W. (92-6)

22шт.

9

F19529

BUSHING - (3/4" O.D. x 3/8" I.D. x 1/4" long)

22шт.

10

F1694

SHEAVE - cutter drive, driven (Replaces Ref. 11 when stocks are exhausted)

1шт.

SCREW - set, socket head N.C. 3/8" x 1/2" (83-68)

2шт.

11

F1604

SHEAVE - cutter drive, driven (Replaces by Ref. 10 when stocks are exhausted)

1шт.

SCREW - set, socket head N.C. (3/8" x 1/2" (83-68)

2шт.

12

O5685HT

KEY - (5/16" x 5/16" x 1-1/2")

1шт.

13

F82871

BEARING - (Dodge #19A318) replaced by Ref. 36 when stocks are exhausted

2шт.

14

F19522

COLLAR

1шт.

SCREW - set, socket head N.F. 5/16" x 7/16" (84-87)

2шт.

15

F19528

SHAFT - cutter

1шт.

16

F19521

PANEL - side, R.H.

1шт.

17

F1598

HOUSING - bearing (Replaced by Ref. 36 when stocks are exhausted)

2шт.

FHBNF 1/2" x 1-1/4" (14-820) nut (25-118) L.W. (92-8)

8шт.

18

F19526

BAR - hinge

2шт.

FHBNF 5/16" x 1" (14-516) nut (25-115) L.W. (92-5)

4шт.

WASHER - 5/16" (195-21)

2шт.

19

F19532

BRACE

2шт.

FHBNF 5/16" x 5/8" (14-510) nut (25-115) L.W. (92-5)

2шт.

20

F19531

SHIELD - deflector

1шт.

FHBNF 3/8" x 3/4" (14-612) nut (25-116) L.W. (92-6) and wshr. (195-25)

2шт.

SCREW - truss hd. mach. N.C. 1/4" x 1/2" (77-48) and nut (25-104) L.W. (92-4)

16шт.

21

F19534

WING - (Long) R.H. deflector

3шт.

22

F19536

WING - (Short) R.H. deflector

1шт.

23

F19535

WING - (Short) L.H. deflector

1шт.

24

F19533

WING - (Long) L.H. deflector

3шт.

25

F19525

SHEET - rear

1шт.

FHBNF 5/16" x 5/8" (14-510) nut (25-115) L.W. (92-5)

2шт.

26

F19520

PANEL - side, L.H.

1шт.

27

F19546

PANEL - rear

1шт.

FHBNF 5/16" x 5/8" (114-105) nut (129-122) L.W. (192-20)

10шт.

28

F19547

FILLER - corner

2шт.

FHBNF 1/4" x 1/2" (113-1) nut (129-101) L.W. (192-19)

4шт.

29

F82879

PANEL - L.H.

1шт.

30

F19523

SHEET - bottom

1шт.

FHBNF 5/16" x 5/8" (14-510) nut (25-115) L.W. (92-5)

10шт.

31

F82872

FRAME - retarder knife

1шт.

FHBNF 3/8" x 3/4" (14-612) nut (25-116) L.W. (92-6) and wshr. (195-25)

2шт.

32

F19524

SHEET - front

1шт.

FHBNF 5/16" x 5/8" (14-510) nut (25-115) L.W. (92-5)

2шт.

SCREW - truss hd. mach. N.C 5/16" x 5/8" (77-510) and nut (25-105) L.W. (92-5)

9шт.

33

F19537

DEFLECTOR - straw

1шт.

FHBNF 3/8" x 3/4" (14-612) nut (25-116) L.W. (92-6)

4шт.

WASHER - 3/8" (195-25)

2шт.

34

F19527

KNIFE

- retarder

10шт.

FHBNF 3/8" x 3/4" (14-612) nut (25-116) L.W. (92-6)

10шт.

35

F82880

PANEL - R.H.

1шт.

36

F84273

BEARING - complete, cutter shaft (Replaces Ref. 13, 14 of 17 when stocks are exhausted)

2шт.

37

F1695

HOUSING - bearing

1шт.

38

F84274

BEARING

(Dodge #123241) cutter shaft)

1шт.

39

F21378

COLLAR

1шт.

40

84-57

SCREW - 5/16" - 24 x 7/16" hex. socket hd. set

2шт.

41

F21379

CARRIAGE BOLT

RETAINER - race

1шт.

42

F21380

SPRING

1шт.

43

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" str.

1шт.

44

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

8шт.

45

92-8

LOCK WASHER,1/2"

8шт.

46

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

- 1/2" x 1-1/4" N.F. hex., bearing housing

8шт.

FHBNF 1/2" x 1" (14-816) nut (25-118) L.W. (92-8)

2шт.
