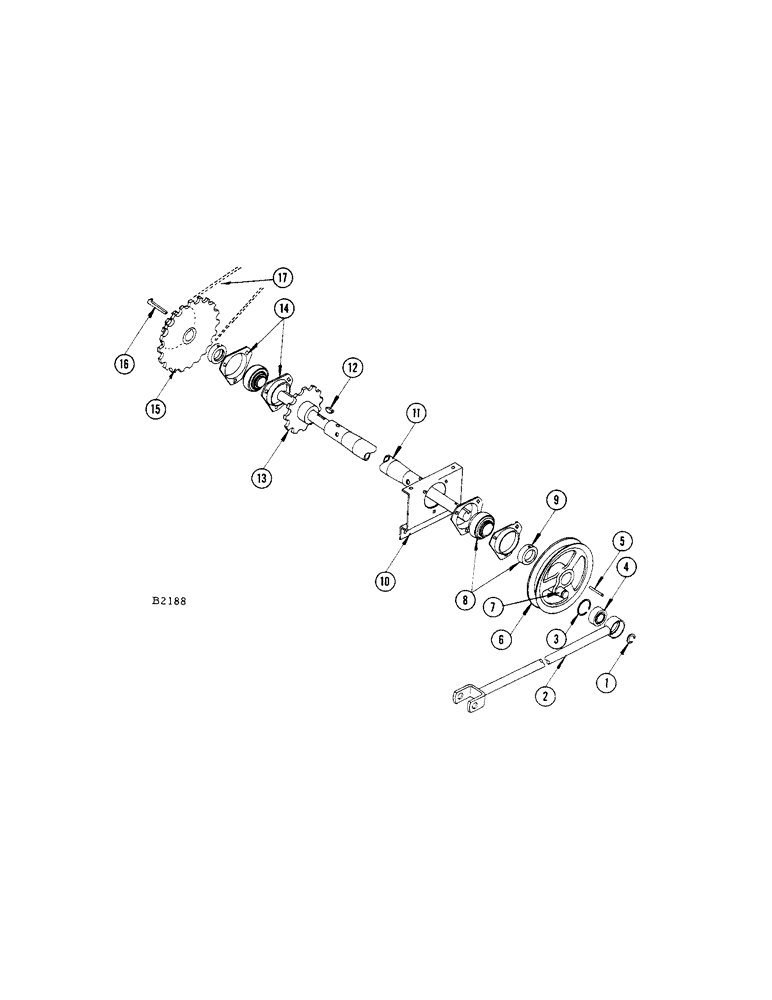

Запчасти Case IH 400 (056[1]) - STRAWRACK CRANKSHAFT (72) - SEPARATION

1

O5872AB

X

RING - snap

1шт.

2

F80887

PITMAN

- strawrack

1шт.

3

O7084AB

X

RING - snap

1шт.

4

N4651

BALL BEARING,0.9843" ID x 2.0472" OD x 0.5906"

BEARING - Pitman (N. D. #Z99505-LIC)

1шт.

5

O1821CS

KEY

1шт.

6

F80864

CRANK - hub and Pitman

1шт.

7

F17772

PIN

1шт.

8

T18852

BALL BEARING

BEARING - (Fafnir #1106KRRB)

2шт.

9

O4524B

COLLAR

1шт.

10

F16092

BRACKET - R.H. end

1шт.

FHBNF 5/16" x 3/4" (14-512) nut (25-115) L.W. (92-5)

5шт.

11

F20904

CRANKSHAFT

1шт.

12

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

1шт.

13

F80863

SPROCKET - tailings elevator drive (18T)

1шт.

14

F16086

FLANGE

4шт.

BOLT - rd. hd. sq. nk. 3/8" x 3/4" (11-612) nut (25-106) and L.W. (92-6)

6шт.

15

F81348

SPROCKET - (45T and 17T)

1шт.

16

O30388HT

KEY

- gib

1шт.

17

F16228

X

CHAIN - crankshaft drive (Use (2) B12478 chains and (4) B12481 chains #50)

1шт.
