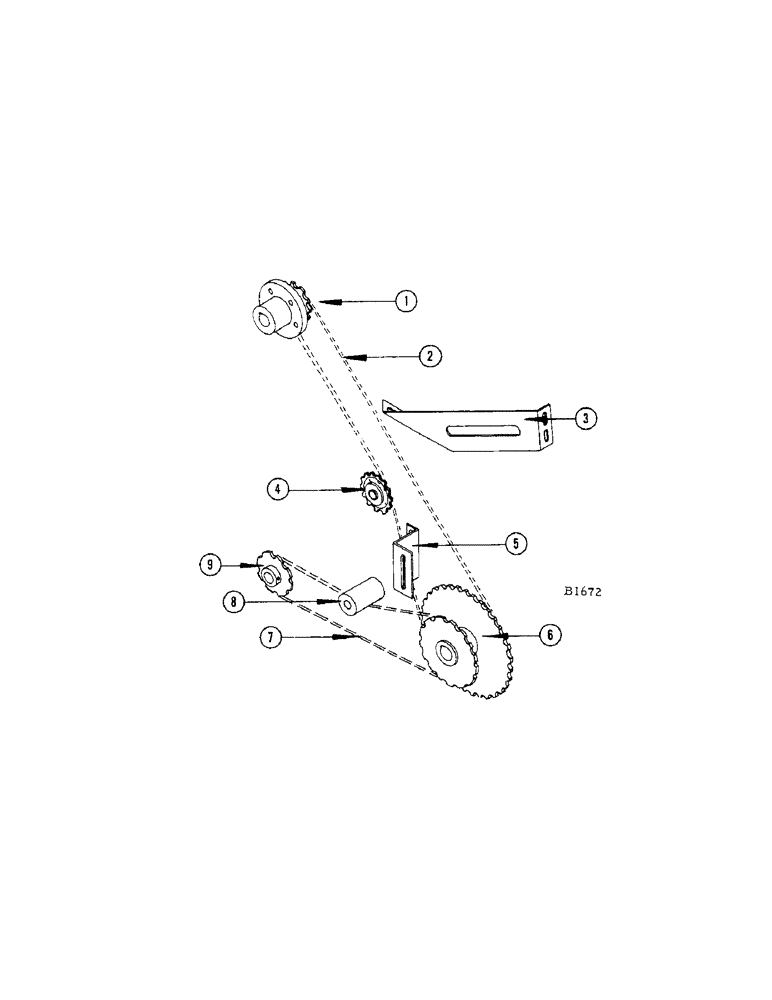

Запчасти Case IH 400 (050) - CRANKSHAFT DRIVE CHAIN (72) - SEPARATION

1

F83088

HUB AND SPROCKET - (16T)

1шт.

2

F16228

X

CHAIN - crankshaft drive (See page 3)

1шт.

3

F16227

BRACKET - idler support

1шт.

FHBNF 5/16" x 3/4" (14-512) L.W. (92-5) wshr. (95-5) and nut (25-115)

4шт.

4

F6078

SPROCKET ASSY.

SPROCKET - idler (17T)

1шт.

FHBNF 5/8" x 2-1/2" (14-1040) nut (25-1110) L.W. (92-10)

1шт.

WASHER - 5/8" flat (95-10)

3шт.

5

F20325

BRACKET - jackshaft idler

1шт.

FHBNF 5/16" x 5/8" (14-510) L.W. (92-5) nut (25-115)

2шт.

6

F81348

SPROCKET - (45T and 17T)

1шт.

7

F16079

X

CHAIN

1шт.

8

3162-1/2

BLOCK - tightener

1шт.

BOLT - rd. hd. sq. nk. 5/16" x 3" (11-548) L.W. (92-5) and wshr. (95-5) nut (25-105)

1шт.

9

F80859

HUB AND SPROCKET

1шт.
