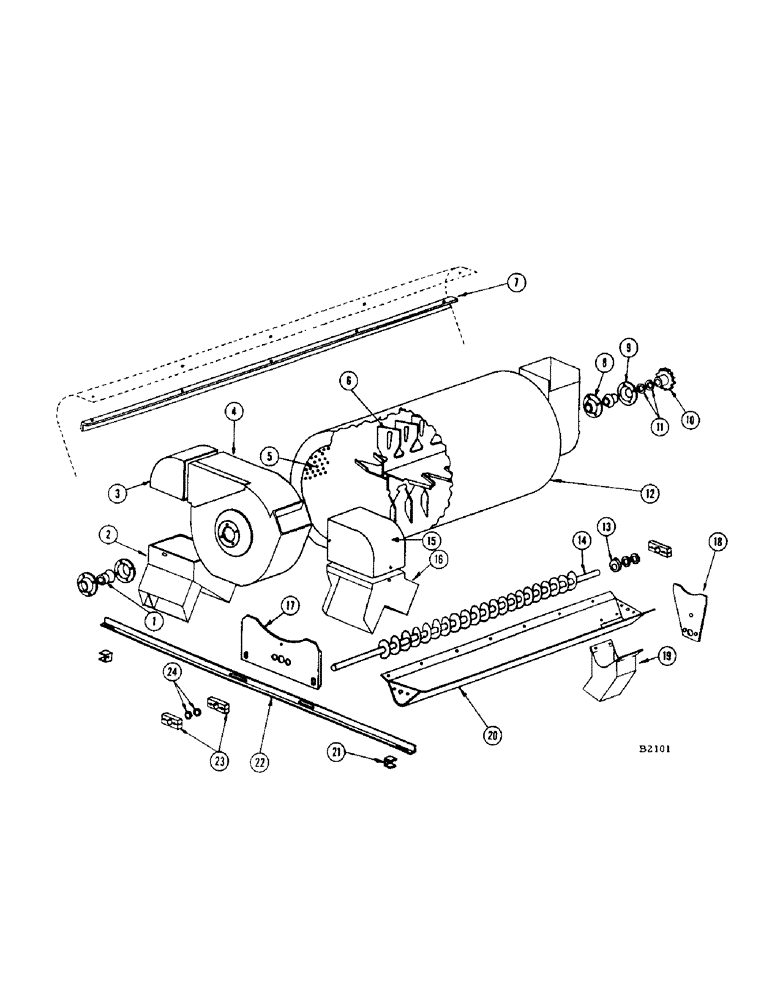

Запчасти Case IH 400 (082) - SCOURKLEEN ATTACHMENT (66) - THRESHING

1

F4347

BEARING

2шт.

2

F83382

CHUTE - front, grain discharge

1шт.

SCREW - mach, N.C. (3/16" x 3/8" (173-92) nut (129-7) L.W. (92-3)

4шт.

3

F83376

ELBOW

1шт.

SCREW - mach. N.C. 3/16" x 3/8" (173-92) nut (129-7) L.W. (92-3)

3шт.

4

F83378

DRUM - discharge

1шт.

SCREW - mach. N.C. 1/4" x 3/4" (68-412) L.W. (92-4)

3шт.

NUT - wing 5/16" (129-405)

3шт.

5

F83260M

SCREEN - (.165" triangular hole) standard, see ScourKleen screens extra

1шт.

6

F83390

BLADE - rotor

1шт.

7

F20344

REINFORCEMENT - top

2шт.

FHBNC 1/4" x 5/8" (13-410) nut (25-104) L.W. (92-4) and wshr. (95-4)

8шт.

8

F20337

RETAINER - inner

2шт.

9

F20336

RETAINER - outer

2шт.

SCREW - mach. N.C. 1/4" x 1/2" (68-48) nut (25-104) and L.W. (92-4)

8шт.

10

F1654

SPROCKET - (14T)

1шт.

KEY - Woodruff #15 (126-124)

1шт.

SCREW - set sq. hd. N.C. 3/8" x 5/8" (85-610)

1шт.

11

F20286

WASHER

- (1-3/8" O.D. x 29/32" I.D. #16 ga.)

2шт.

12

F83374

HOUSING - main

1шт.

SCREW - type "A" #14 x 3/4 (187-149) speed nut (131-136)

4шт.

13

F1647

COLLAR - set

1шт.

SCREW - set sq. hd. N.C. 3/8" x 1/2" (85-68)

1шт.

14

F83372

AUGER - weed seed

1шт.

15

F83376

ELBOW

1шт.

SCREW - mach. N.C. 3/16" x 3/8" (173-92) nut (129-7) and L.W. (92-3)

3шт.

16

F83385

CHUTE - rear

1шт.

SCREW - mach. N.C. 3/16" x 3/8" (173-92) nut (129-7) and L.W. (92-3)

4шт.

17

F20343

BRACKET - support L.H.

1шт.

FHBNC 5/16" x 3/4" (13-512) nut (25-105) L.W. (92-5)

3шт.

WASHER- 5/16" (95-5)

6шт.

SCREW - mach. flat hd. N.C. 1/4" x 5/8" (73-410) and nut (25-104) L.W. (92-4)

3шт.

18

F83375

BRACKET - support, R.H.

1шт.

FHBNC 1/4" x 5/8" (13-410) nut (25-104) L.W. (92-4)

1шт.

19

F83377

DOWNSPOUT

1шт.

SCREW - mach. rd. hd. N.C. (3/16" x 3/8" (173-92) and L.W. (92-3)

4шт.

20

F83387

TROUGH

1шт.

SCREW - metal type "A" #10 x 1/2" (187-329) and Tinnerman nut (131-121)

8шт.

21

F20349

"U" CLAMP

2шт.

22

F83389

ANGLE - support

1шт.

FHBNC 5/16" x 3/4" (13-512) nut (25-105) L.W. (92-5)

2шт.

FLATWASHER 5/16" (95-5)

4шт.

23

F4346

BEARING

2шт.

SCREW - mach. truss hd. N.C. 1/4" x 1" (187-949) and nut (25-104) L.W. (92-4)

2шт.

SCREW - mach. truss hd. N.C. 1/4" x 3/4" (187-947) and nut (25-104) L.W. (92-4)

2шт.

24

O774AB

X

WASHER - (1-1/8" O.D. x 21/32" I.D. #16 ga.)

4шт.
