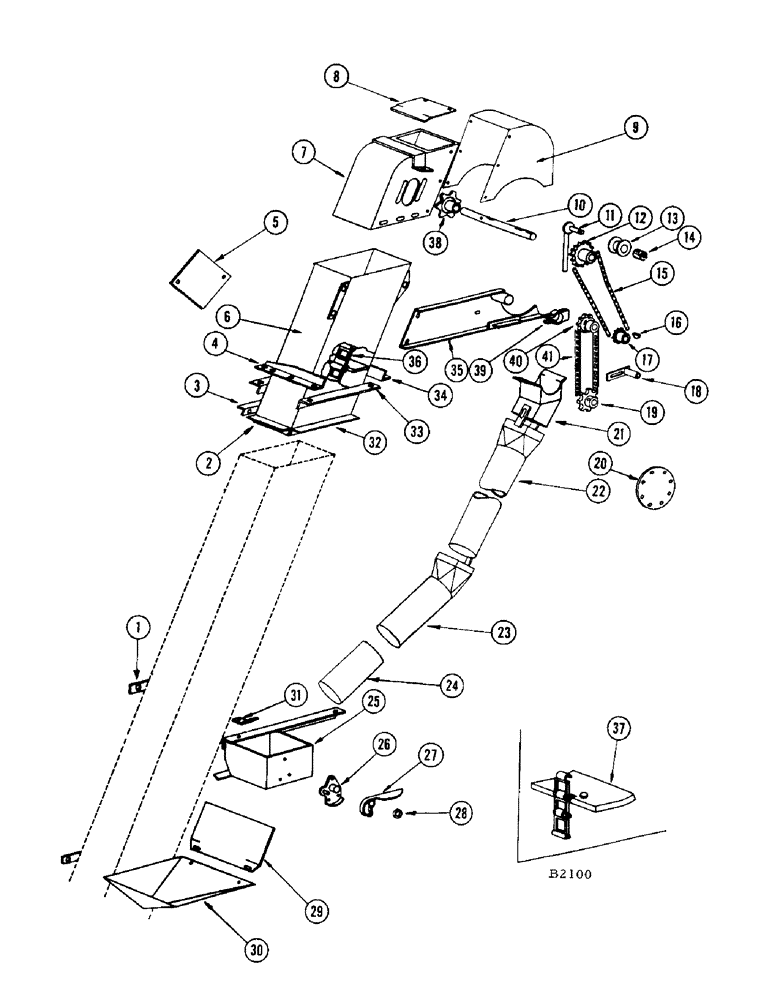

Запчасти Case IH 400 (078) - SCOURKLEEN ELEVATOR EXTENSION (66) - THRESHING

1

F21904

STRAP - clamp

2шт.

FHBNC 5/16" x 6" (13-596) nut (25-105) L.W. (92-6) and wing nut (129-405)

2шт.

2

F20345

ANGLE - rear

1шт.

3

F20347

ANGLE - L.H.

1шт.

4

F17780

SUPPORT - rear

1шт.

FHBNC 5/16" x 3/4" (13-512) nut (25-105) L.W. (92-4)

2шт.

5

F18311

COVER

1шт.

6

F83380

TUBE - elevator extension

1шт.

FHBNC 1/4" x 1/2" (13-48) nut (25-104) L.W. (92-4)

2шт.

BOLT - rd. hd. sq. nk. 1/4" x 5/8" (11-410) nut (25-104) and L.W. (92-4)

16шт.

7

F83379

HEAD - elevator

1шт.

FHBNC 5/16" x 2-1/2" (113-117) dbl. nut (25-105)

2шт.

8

F20341

DOOR - clean out

1шт.

SCREW - type "A" metal #10 x 1/2" (187-329) Tinnerman nut (131-135)

2шт.

9

F83381

SPOUT - discharge

1шт.

FHBNC 1/4" x 1/2" (13-48) nut (25-104) L.W. (92-4) and wshr. (95-4)

6шт.

10

F6571

SHAFT - upper (Standard - not part of attachment)

1шт.

11

F83371

ARM - chain tightener

1шт.

WASHER - 1/2" (95-8)

1шт.

PIN - cotter 1/8" x 1" (132-48)

1шт.

12

F1653

SPROCKET ASSY.

SPROCKET - (20T)

1шт.

KEY - Woodruff #15 (126-124)

1шт.

SCREW - set, N.C. hex. hd. 3/8" x 5/8" (85-610)

1шт.

13

F83368

ROLLER - chain tightener

1шт.

14

F4345

BUSHING - (1" O.D. x 1-1/4" long)

1шт.

15

F20354

CHAIN - ScourKleen drive (Use (3) B17074 chains, (1) B17076 chain (2) B17077 conn. links, (4) B17078 offset links and (2) B17079 roller links #41)

1шт.

16

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

17

F1654

SPROCKET - (14T)

1шт.

18

F83373

TIGHTENER - auger drive chain

1шт.

SCREW - mach. N.C. 1/4" x 3/4" (68-412) nut (25-104) and L.W. (92-4) wshr. (95-4)

1шт.

19

F1649

SPROCKET - (12T)

1шт.

PIN - cotter 3/16" x 1-1/2" (132-95)

1шт.

20

F20447

COVER

1шт.

21

F83377

DOWNSPOUT

1шт.

SCREW - mach. rd. hd. N.C. 3/16" x 3/8" (173-92) and L.W. 92-3)

4шт.

22

F83383

TUBE - upper weed seed

1шт.

SCREW - mach. rd. hd. N.C. 1/4" x 5/8" (68-41) and nut (25-104) Tinnerman nut (131-109)

2шт.

LOCKWASHER - 1/4" (92-4)

4шт.

23

F83384

TUBE - lower weed seed

1шт.

FHBNC - 1/4" x 5/8" (13-410) nut (25-104) Tinnerman nut (131-109)

1шт.

LOCKWASHER - 1/4" (92-4)

2шт.

24

F20966

EXTENSION - lower weed seed tube

1шт.

25

F83388

HOLDER - bag, weed seed

1шт.

FHBNC 5/16" x 6" (13-596) nut (25-105) L.W. (92-5)

2шт.

26

F1651

BRACKET

1шт.

PIN - cotter 3/16" x 1" (132-91)

1шт.

27

F1650

LEVER

1шт.

28

O774AB

X

WASHER - (1-1/8" O.D. x 21/32" I.D. #16 ga.)

1шт.

29

F20340

SHIELD - bag, box

1шт.

SCREW - mach. N.C. 1/4" x 5/8" (68-410) nut (25-104) and L.W. (92-4)

2шт.

FHBNC - 1/4" x 5/8" (13-410) nut (25-104) L.W. (92-4)

2шт.

WASHER - 1/4" (95-4)

4шт.

30

F83370

BOX - bag, weed seed

1шт.

FHBNC 1/4" x 1" (13-416) nut (25-104) L.W. (92-4) and wshr. (95-4)

2шт.

31

F20348

BRACKET - attaching

1шт.

FHBNC 1/4" x 5/8" (13-410) nut (25-104) L.W. (92-4)

2шт.

32

F20346

ANGLE - R.H. side

1шт.

33

F17778

SUPPORT - R.H. and L.H.

2шт.

FHBNC 5/16" x 3/4" (13-512) nut (25-105) L.W. (92-4)

2шт.

34

F17779

SUPPORT - front

1шт.

FHBNC 5/16" x 3/4" (13-512) nut (25-105) L.W. (92-4)

3шт.

35

F83386

BRACKET - support

1шт.

SCREW - mach. flat hd. N.C. 1/4" x 5/8" (73-410) and nut (25-104) L.W. (92-4) Tinnerman nut (131-135)

3шт.

36

F83369

EXTENSION - grain elevator chain and flights (Use (2) F86419, (1) 235-83 coupler link)

1шт.

F86419

CHAIN WITH 2 FLIGHTS

2шт.

F86421

CHAIN WITH 5 FLIGHTS

1шт.

37

F79799

RUBBER FLIGHT

FLIGHT - (rubber) elevator extension chain (Includes F11165, (1) 235-65 attaching link, (2) #55 plain links and (2) 151-135 rivets

9шт.

38

51B

SPROCKET ASSY.

SPROCKET - (7T) not part of attachment

1шт.

39

F1648

CLAMP

1шт.

40

F1652

SPROCKET - (9T)

1шт.

41

NSS

NOT SOLD SEPARAT

CHAIN - #25 steel (Use B15926 to make 31 links weed seed auger drive chain)

1шт.

F83262M

SCREEN - (1/8" x 3/4" slotted hole) corn and beans

1шт.

F83263M

SCREEN - (5/32" x 3/4" slotted hole) corn

1шт.

F83260M

SCREEN - (.165" triangular hole) standard - wheat, oats, barley, rye and rice

1шт.

F83261M

SCREEN - (140" triangular hole) wheat, oats, barley, rye and rice

1шт.

F83264M

SCREEN - (5/32" round hole) beans

1шт.

F83265M

SCREEN - (1/20 round hole) alfalfa, clover and grass

1шт.

F83266M

SCREEN - (1/12" round hole) flax, grass and maize

1шт.

F83267M

SCREEN - (3/16" round hole) corn and beans

1шт.

F83268M

SCREEN - (7/32" round hole) beans

1шт.
