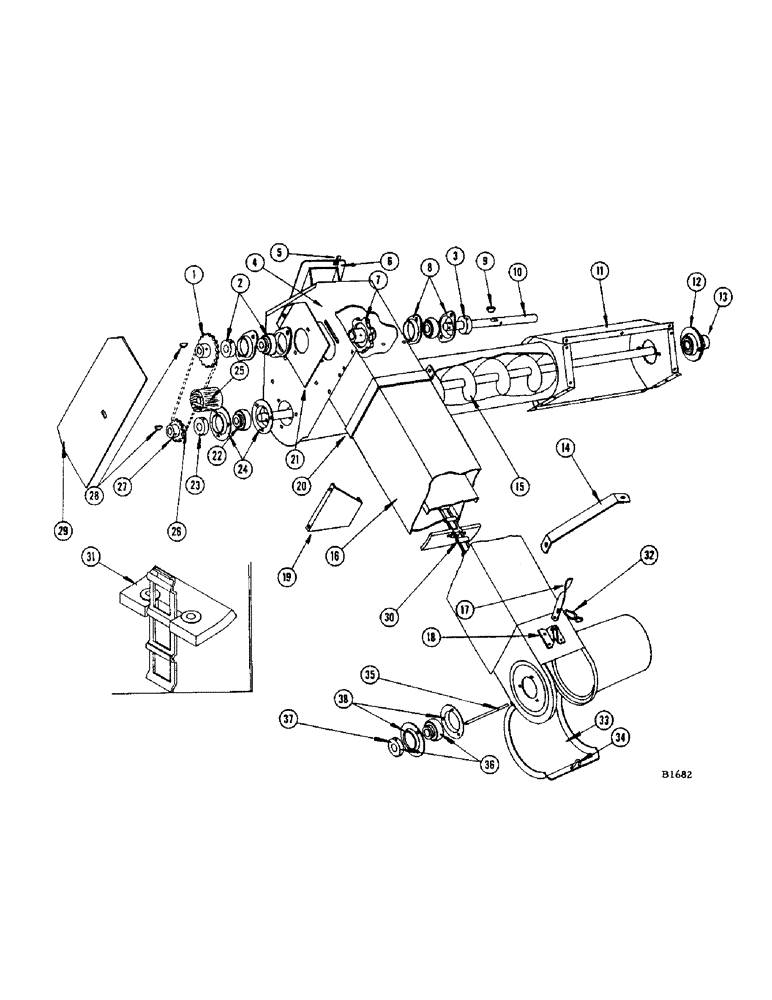

Запчасти Case IH 400 (076) - TAILINGS ELEVATOR (66) - THRESHING

1

F76981

SPROCKET - (22T)

1шт.

PIN - cotter 3/16" x 1-3/4" (132-97)

1шт.

2

F90306

BEARING ASSY

BEARING - (Fafnir #RA014PPB)

2шт.

3

O4233CS

COLLAR

1шт.

4

F83600

HEAD - upper

1шт.

BOLT - rd. hd. sq. nk. 1/4" x 1/2" (12-48) nut (25-104) and L.W. (92-4)

11шт.

5

F86525

CLIP

- spring

1шт.

6

F83602

DOOR - inspection

1шт.

7

51B

SPROCKET ASSY.

SPROCKET - (7T)

1шт.

PIN - cotter 3/16" x 1-3/4" (132-97)

1шт.

8

F9417

FLANGE

TTE

4шт.

BOLT - rd. hd. sq. nk. 5/16" x 3/4" (12-512) nut (25-105) and L.W. (92-5)

4шт.

9

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

1шт.

10

F6571

SHAFT - upper

1шт.

PIN - cotter 3/16" x 1-3/4" (132-97)

1шт.

11

F81603

HOUSING - return

1шт.

FHBNF 1/4" x 1/2" (14-48) nut (25-114) L.W. (92-4)

14шт.

FHBNF 1/4" x 3/4" (14-412) nut (25-114) L.W. (92-4)

2шт.

12

F78749

COLLAR

BEARING - (Aetna #AG1014-4)

1шт.

13

F52076

COLLAR

1шт.

14

F17112

SCREW

STRAP - lower support

1шт.

BOLT - rd. hd. sq. nk. 1/4" x 1/2" (12-48) nut (25-104) and L.W. (92-4)

1шт.

FHBNF 1/4" x 3/4" (14-412) nut (25-114) L.W. (92-4)

1шт.

15

F81396

AUGER - discharge

1шт.

16

F81393

BODY - elevator

1шт.

17

O313CS

HANDLE - latch

1шт.

RIVET - rd. hd. 3/16" x 5/8" (45-310)

1шт.

18

O314CS

BRACKET - latch handle

2шт.

RIVET - W.B. 3/16" x 5/16" (49-35)

4шт.

19

F20746

SCREW

BRACKET - elevator support

1шт.

FHBNF 5/16" x 1" (14-516) nut (25-115) L.W. (92-5)

2шт.

FLATWASHER - 5/16" (195-21)

1шт.

20

F20745

SCREW

STRAP - upper elevator support

1шт.

21

F16438

BRACKET - bearing

2шт.

FHBNF 5/16" x 2-1/2" (114-112) dbl. nut (25-115)

2шт.

22

F90306

BEARING ASSY

BEARING - L.H. (Fafnir #RA014PPB)

1шт.

23

O4233CS

COLLAR

1шт.

24

O799CB

X

FLANGETTE

2шт.

BOLT - rd. hd. sq. nk. 5/16" x 3/4" (11-512) nut (25-105) and L.W. (92-5)

3шт.

25

F4718

BLOCK - tightener

1шт.

BOLT - rd. hd. sq. nk. 3/8" x 3-3/4" (11-660) nut (25-106) and L.W. (92-6) wshr. (95-6)

1шт.

26

F17105

X

CHAIN - discharge auger drive (Use (1) B12486 chain, (1) B12488 chain, (1) B12514 conn. link, (1) B12515 offset link and (1) B12516 roller link #CA2040 roller chain)

1шт.

27

F76947

SPROCKET - (15T)

1шт.

PIN - cotter 3/16" x 1-1/2" (132-95)

1шт.

28

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

2шт.

29

F17107

SHIELD - chain

1шт.

FHBNF 1/4" x 1/2" (14-48) nut (25-114) L.W. (92-4)

2шт.

30

F82402

X

CHAIN AND FLIGHTS - (Use (1) F86423, (1) F86425 and (1) 235-83 coupler link)

1шт.

F86423

CHAIN (AG)

CHAIN AND FLIGHTS - (Consists of chain with 10 flights)

1шт.

F86425

CHAIN (CE)

CHAIN AND FLIGHTS - (Consists of chain with 20 flights)

1шт.

31

F79799

RUBBER FLIGHT

FLIGHT - (Rubber) elevator chain (Includes F11165 flight, (1) 235-65 att. link, (2) #55 plain links and (2) 151-135 rivets)

30шт.

32

O316CS

SPRING - latch handle

1шт.

33

F78417

DOOR - lower head

1шт.

34

O315CS

HOOK - latch

1шт.

35

O309CS

PIN - hinge

1шт.

36

F90306

BEARING ASSY

BEARING - (Fafnir #RA014PPB)

1шт.

37

O4233CS

COLLAR

1шт.

38

O799CB

X

FLANGE

2шт.

BOLT - rd. hd. sq. nk. 5/16" x 3/4" (11-512) nut (25-105) and L.W. (92-5)

3шт.
