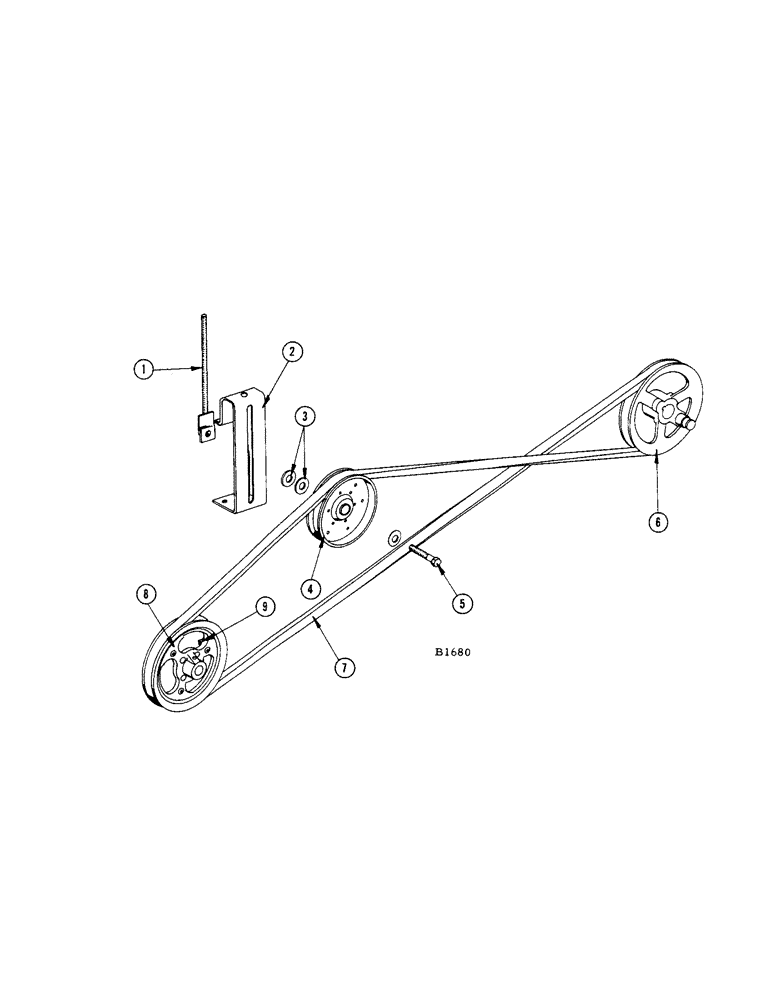

Запчасти Case IH 400 (074) - TAILINGS AUGER DRIVE (66) - THRESHING

1

F81939

ROD - adjustment

1шт.

NUT - 3/8" (25-106)

2шт.

2

F20700

SCREW

BRACKET - idler

10шт.

FHBNF 1/4" x 3/4" (14-412) nut (25-114) L.W. (92-4)

4шт.

3

DN1516

WASHER - idler sheave (1-3/4" O.D. x 21/32" I.D. #12 ga.)

3шт.

4

F19311

PULLEY

SHEAVE - idler

1шт.

5

14-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5

1шт.

LOCKWASHER - 5/8" (92-10)

1шт.

NUT - 5/8" (25-1010)

2шт.

6

F80864

CRANK - hub and Pitman

1шт.

7

F16447

V-BELT

Tailings Drive

1шт.

8

F1462

SHEAVE - driven

1шт.

9

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease (1/8" x 45 degrees)

1шт.
