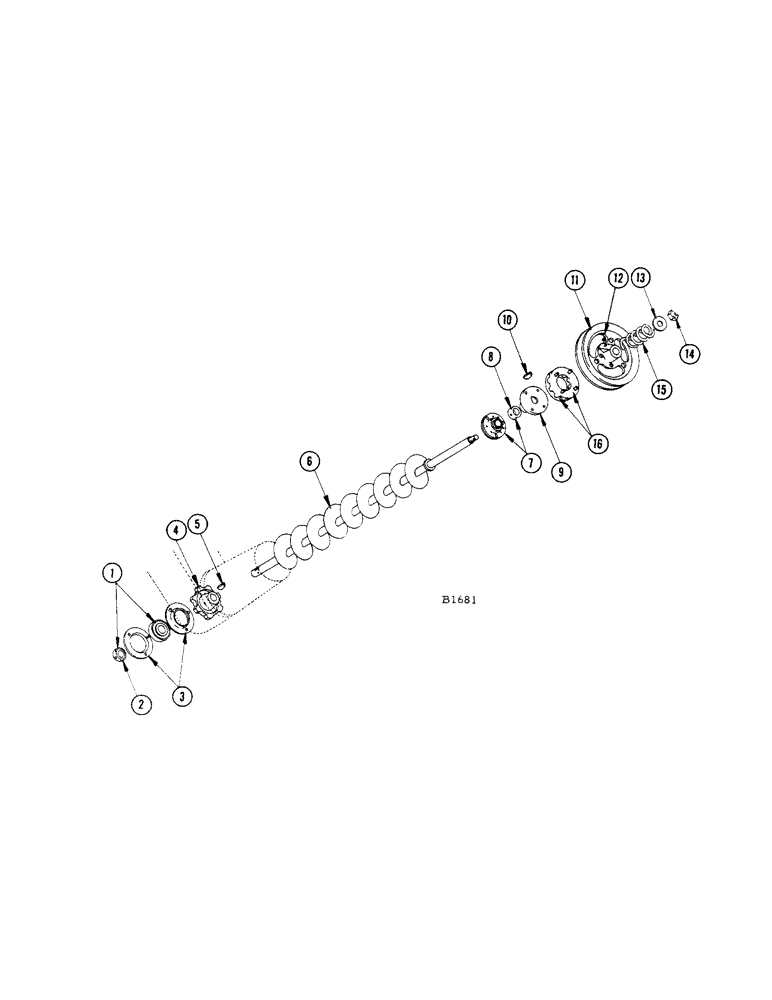

Запчасти Case IH 400 (074[1]) - TAILINGS AUGER (66) - THRESHING

1

F90306

BEARING ASSY

BEARING - L.H. (Fafnir #RA 014 PPB)

1шт.

2

O4233CS

COLLAR

1шт.

3

O799CB

X

FLANGE

2шт.

BOLT - rd. hd. sq. nk. 5/16" x 3/4" (11-512) nut (25-105) and L.W. (92-5)

3шт.

4

51B

SPROCKET ASSY.

SPROCKET - (7T)

1шт.

PIN - cotter 3/16" x 1-3/4" (132-97)

1шт.

5

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

1шт.

6

F81604

AUGER - tailings

1шт.

7

F78749

COLLAR

BEARING - L.H. (Aetna #AG1014-4)

1шт.

8

F52076

COLLAR

1шт.

BOLT - rd. hd. sq. nk. 5/16" x 3/4" (11-512) nut (25-105) and L.W. (92-5)

2шт.

9

143CS

PLATE

HUB - jump clutch

1шт.

10

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

1шт.

11

F1462

SHEAVE - drive

1шт.

12

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease (1/8" x 45 degrees)

1шт.

13

O2985A

X

WASHER - jump clutch spring (1-9/16" O.D. x 25/32" I.D. #12 ga.)

1шт.

14

131-37

LOCK NUT,3/4"-16

NUT - (3/4" N.F. Esna elastic stop)

1шт.

15

O1090CH

SPRING

- jump clutch

1шт.

16

T16665

RING - jump clutch

2шт.
