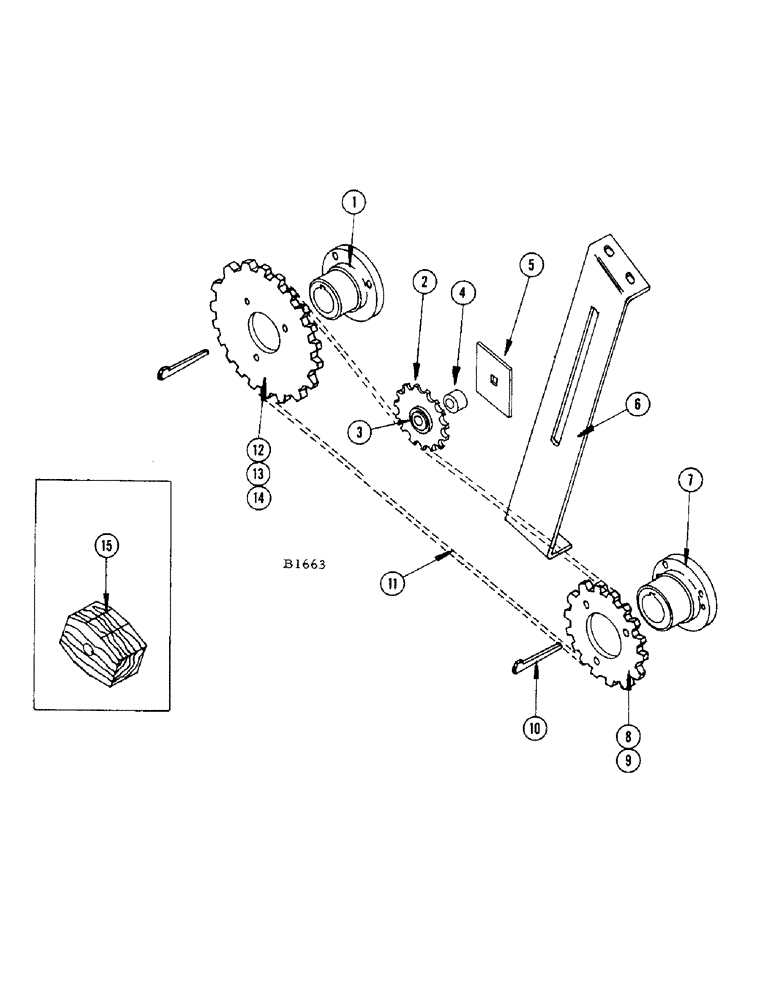

Запчасти Case IH 400 (046) - CYLINDER DRIVE (66) - THRESHING

1

F3406

HUB

- cylinder drive (Beater shaft)

1шт.

FHBNF 3/8" x 1-1/4" (14-620) nut (25-116) L.W. (92-6)

3шт.

2

F83982

SPROCKET ASSY.

SPROCKET - (17T) tightener (#8262501 and after)

1шт.

3

F7293

BEARING

1шт.

BOLT - rd. hd. sq. nk 5/8" x 2-1/2" (11-1040) and nut (25-1010) L.W. (92-10)

1шт.

4

V13384

SPACER - (#8262501 and after)

1шт.

5

F21062

REINFORCEMENT - idler (#8262501 and after)

1шт.

6

F15953

BRACKET - idler

1шт.

FHBNF 5/16" x 3/4" (14-512) nut (25-115) L.W. (92-5)

3шт.

FHBNF 5/16" x 7/8" (14-514) nut (25-115) L.W. (92-5)

1шт.

7

F3406

HUB

- cylinder drive (Cylinder shaft)

1шт.

FHBNF 3/8" x 1-1/4" (14-620) nut (25-116) L.W. (92-6)

3шт.

8

F8974

SPROCKET ASSY.

SPROCKET - cylinder drive, standard (24T)

1шт.

9

O8382HT1

SPROCKET - cylinder drive (21T)

1шт.

10

O30388HT

KEY

- gib

2шт.

11

F18520

X

CHAIN - cylinder drive (Use (1) B12478 chain, (1) B12480 chain, (1) B12510 offset link and (2) B12511 roller links #60

1шт.

12

F8978

SPROCKET - cylinder drive, standard (33T)

1шт.

FHBNF 3/8" x 1-1/4" (14-620) nut (25-116) L.W. (92-6)

3шт.

13

F16253

SPROCKET - cylinder drive (38T)

1шт.

14

F18087

SPROCKET - fast cylinder speed (44T)

1шт.

F16252

X

LINKS - extension, cylinder chain (Use (2) B12511 roller links and (2) B12509 link #60)

2шт.

15

F4331

BLOCK - rub (Before #8262501)

1шт.

BOLT - rhd. sq. nk. (5/8" x 2-1/2" (11-1040) and nut (25-1010) L.W. (92-10)

1шт.

WASHER - 5/8" (95-10)

1шт.
